H.24 Part. N. 8000 H0368 (09-2008)
ENGINE REASSEMBLY

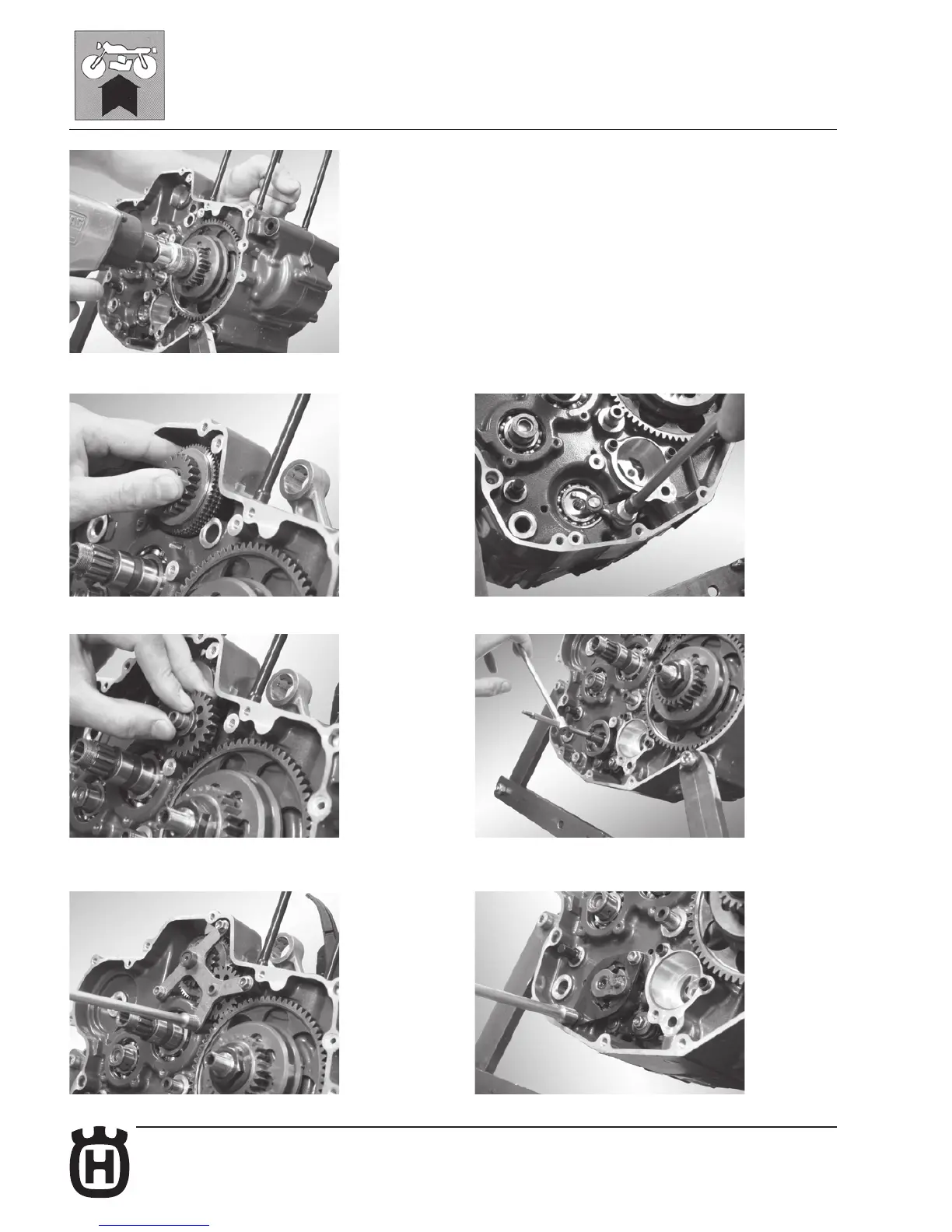

Reassembly of gearshift mechanism, electric starting system and oil pump
Assembly of the gearshift mechanism should be done in reverse order to disassembly.
Tighten the driving gear on the crankshaft to the required torque (180 Nm-18 Kgm-
130 ft/lb + LOCTITE 243).
Mount the starting driven gear.
NOTE: reassemble the free wheel in accordance with the mark previously done,
during disassembly.
Check the gears teeth for wear and failure. If worn or breaked, replace it.
Mout the second starting driven gear.
Mount the retaining plate (11 Nm-1,1 Kgm-7.9 ft/lb + LOCTITE 243).
Tighten the gear selector fixing pin (20 Nm-2 Kgm-14.5 ft/lb + LOCTITE 270), mount
the gear fixing click and the relative spring. Mount the sprocket and fix the plate (8
Nm-0,8 Kgm-5.8 ft/lb + LOCTITE 243).
