Husqvarna 2009 TE 310 - Removal of Side Panels

E.16 Part. N. 8000 H0364 (09-2008)
GENERAL OPERATIONS

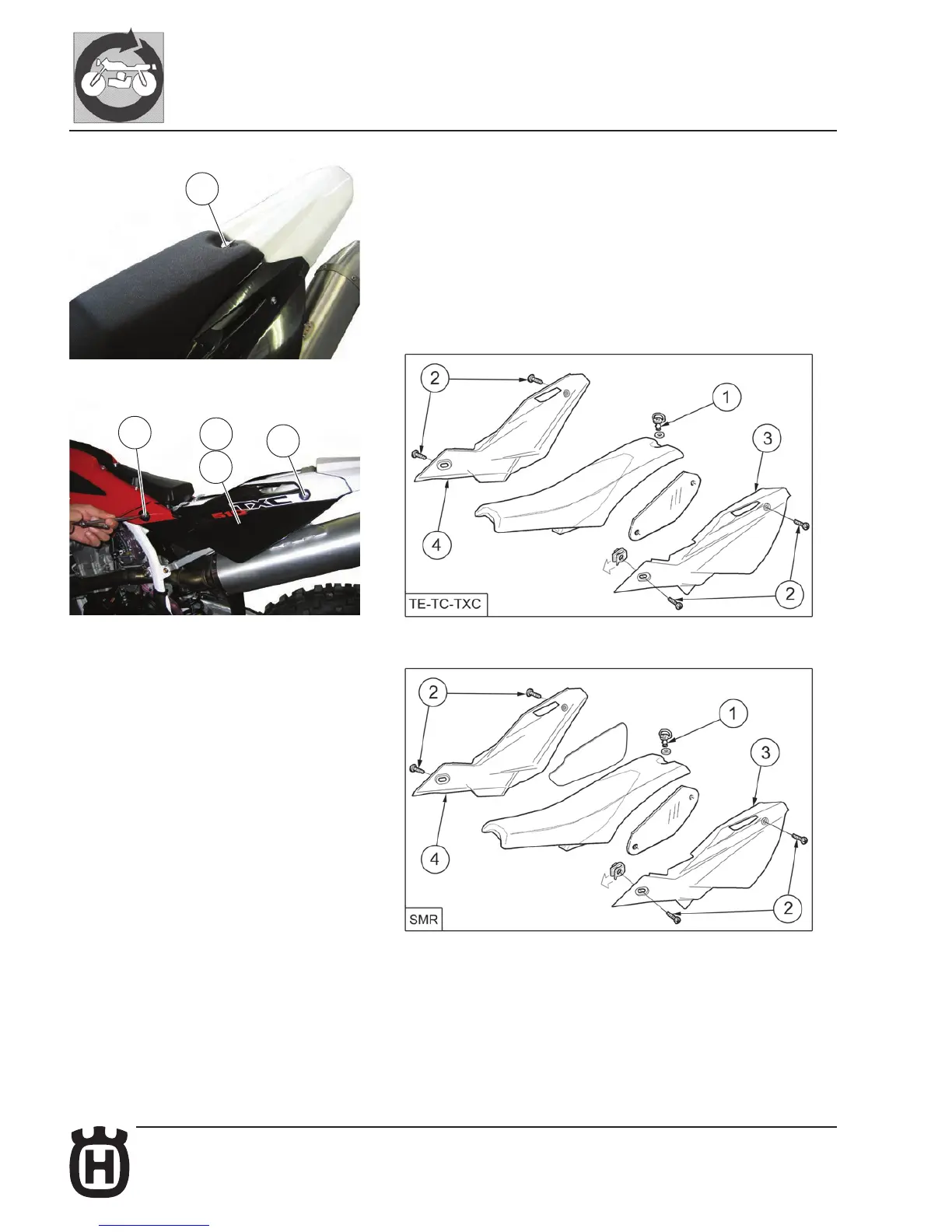

Removal of side panels
Turn rear pin (A) counterclockwise and remove the saddle from the front fasten-
ing screw. Loosen the screws (2) and remove the side panels (3) and (4).
1
2
2
3
4
