F.10 Part. N. 8000 H0368 (09-2008)
ENGINE DISASSEMBLY

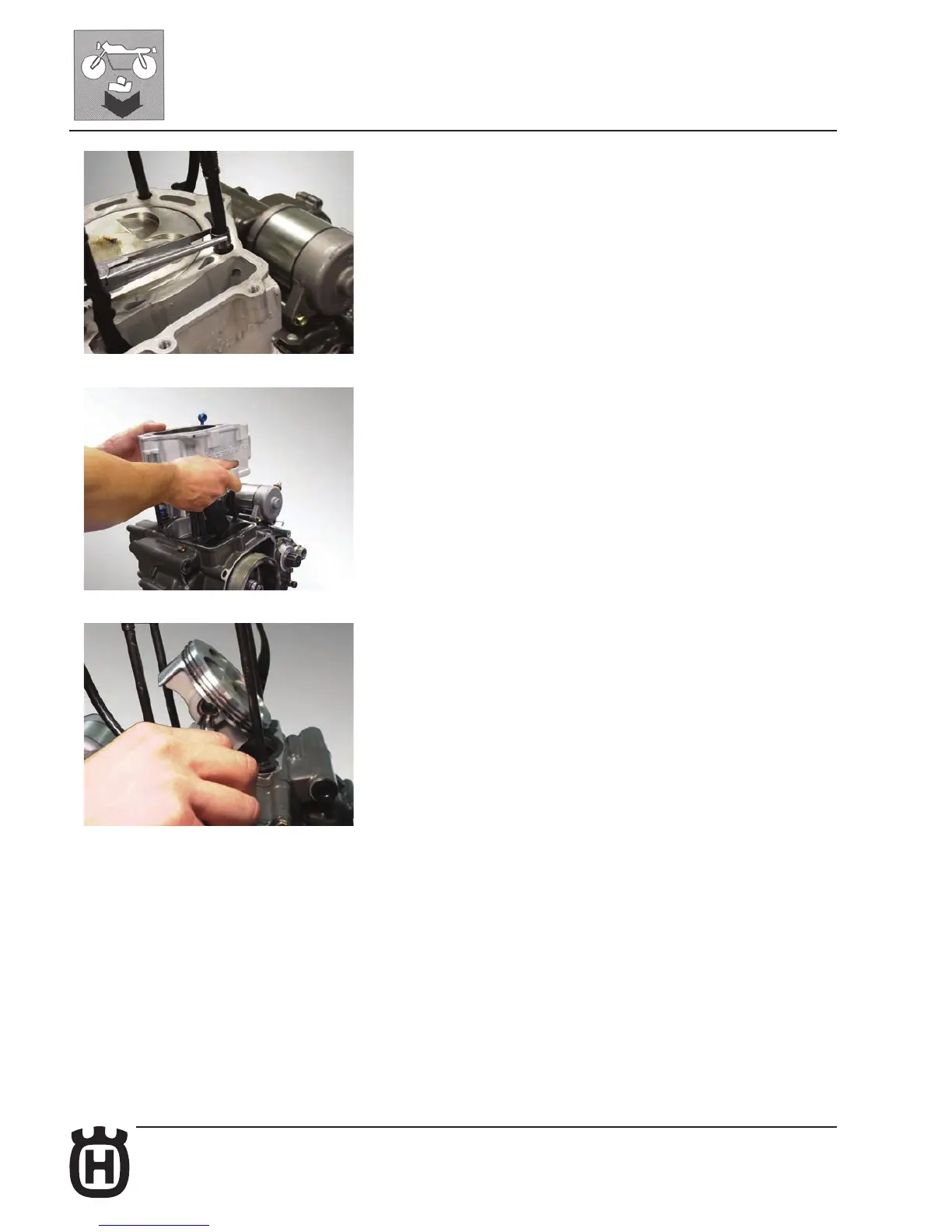

Cylinder disassembly
After having removed the cylinder head gasket, remove the two dowel bushings and
the cylinder itself.
Piston disassembly
Remove the piston pin clips then the piston pin and the piston.
