F.13Part. N. 8000 H0368 (09-2008)

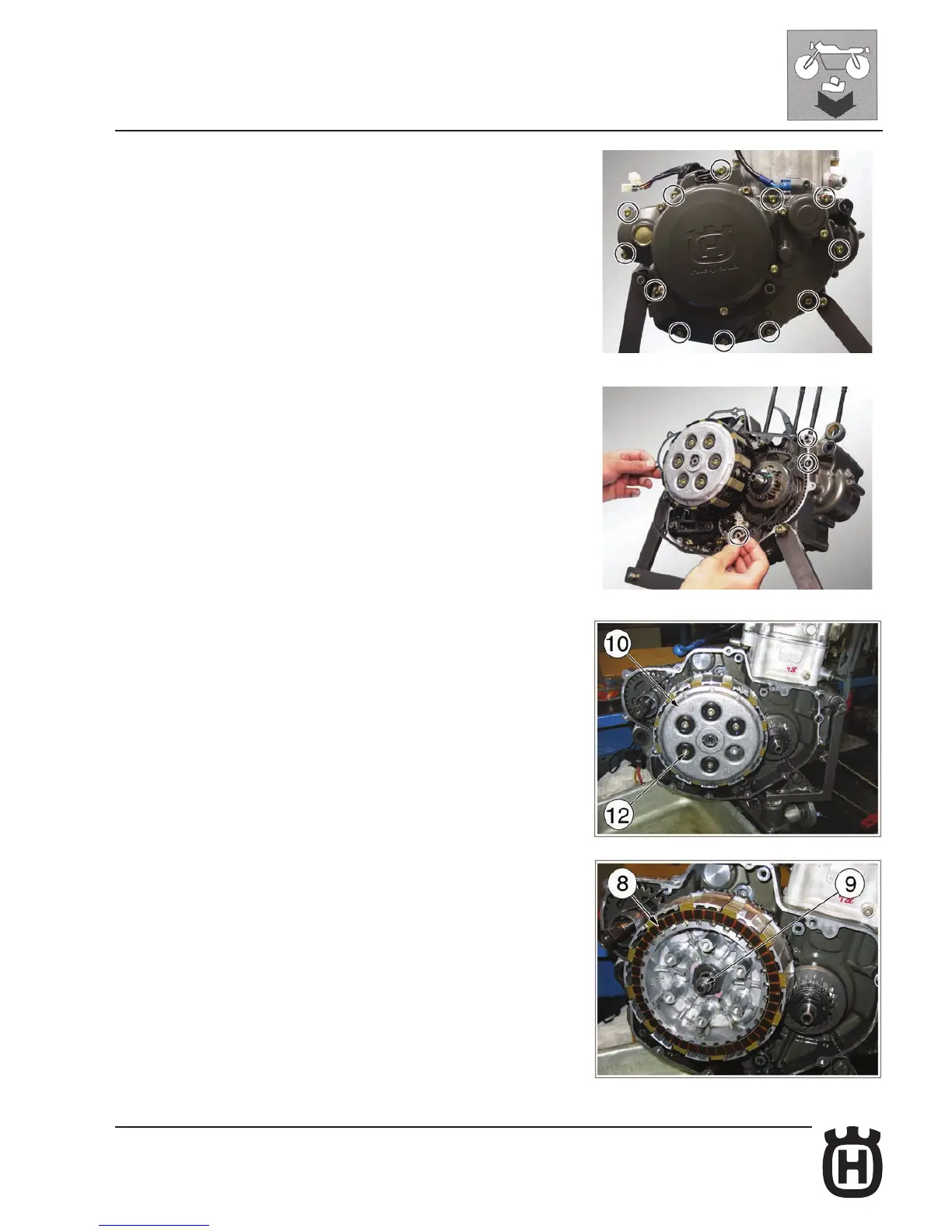

ENGINE DISASSEMBLY
Transmission cover disassembly
Remove the twelve cover fastening screws (8 mm wrench) then the transmission
cover. Remove gasket, dowel bushings and O-Rings.
Clutch disassembly (TE-TXC-TC; SMR 450-510)
Remove the six screws (12) that fasten the springs (11) (5 mm wrench, whilst
following a cross-over pattern and in steps). Remove the pressure plate (10) with
the bearing and the clutch control cap (9). Remove clutch discs (8).
