F.14 Part. N. 8000 H0368 (09-2008)

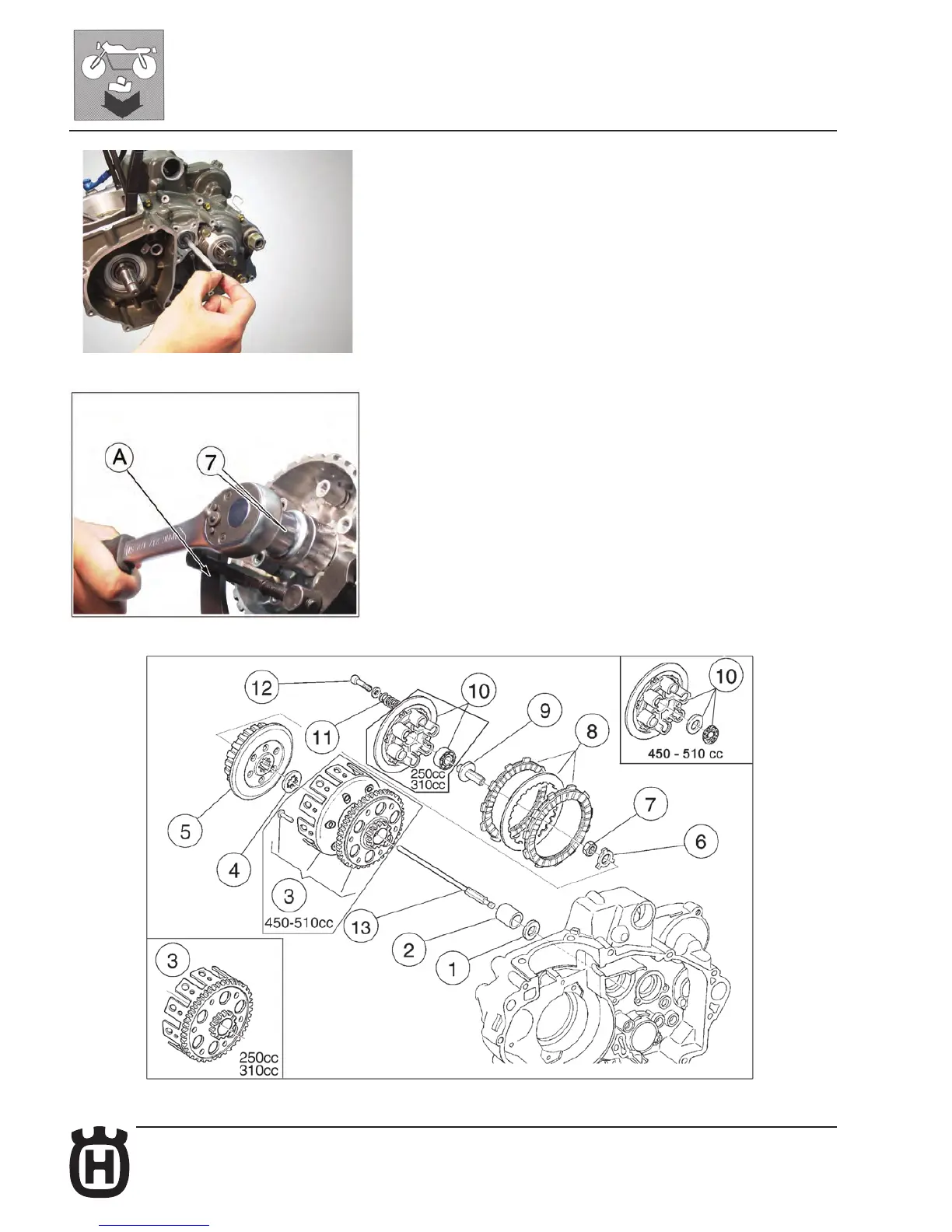

ENGINE DISASSEMBLY
Remove the clutch control rod (13).
Bend back tabs of the hub washer (6) and holding the clutch hub nut (27 mm
wrench), remove the nut (7) using the clutch disassembly tool (A) (code no. 8000
79015).
Remove the washer (6), the clutch hub (5), the grooved washer (4), the clutch
housing (3), the bushing (2) and the washer (1).
