WARNING
The piston must be oriented in a way that the holes having smaller diameter
are placed towards the setting washers (37).
• Tighten the nut ( 38 ) manually.
• Clamp in the vice the damping rod ( 32 ) milled area.
• Using a proper spanner (12 or 13 mm according to the installed nut) tighten the nut
( 38 ) up to the required torque (see Table 1 – Tightening torques).

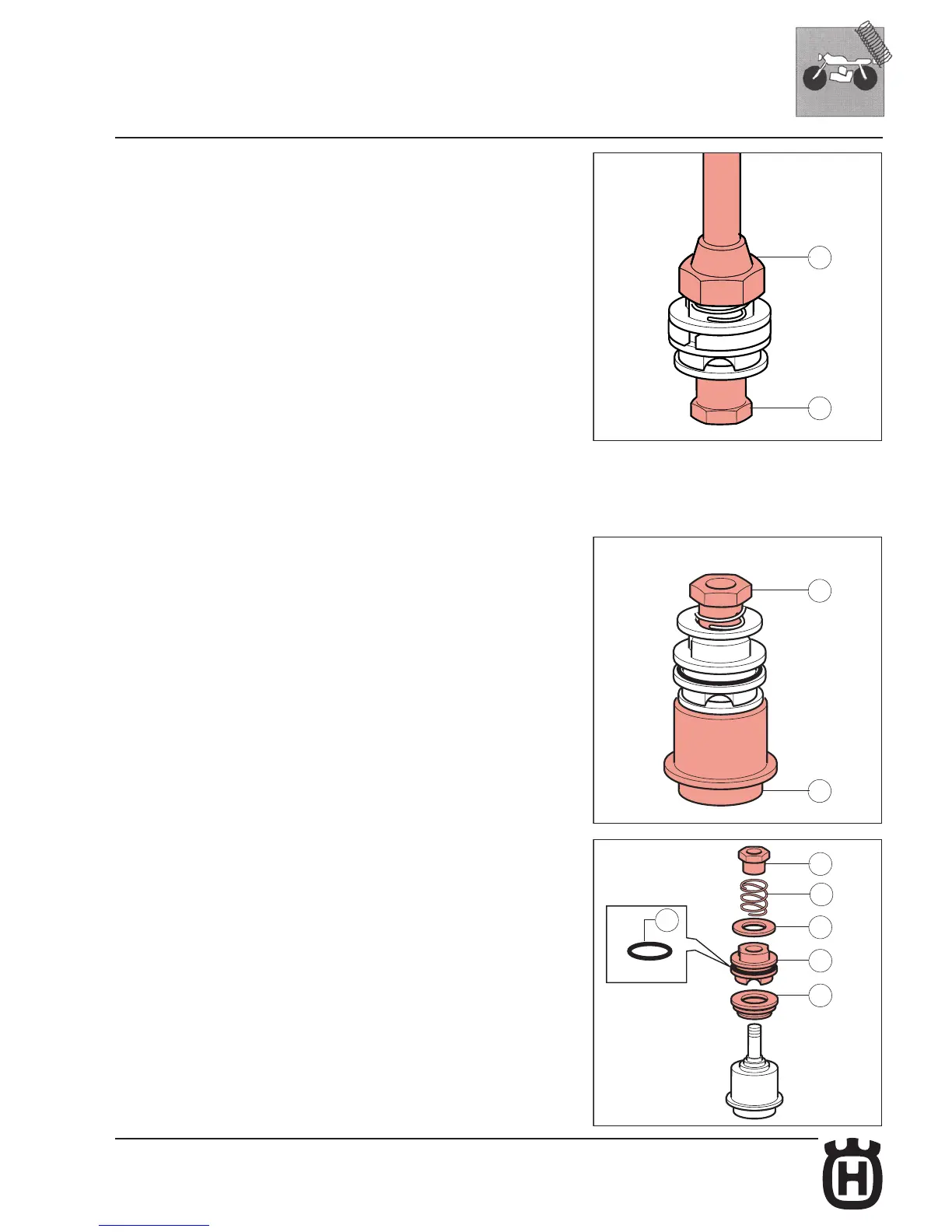

BOTTOM VALVE OVERHAULING (COMPRESSION BRAKING)
Dismantling
• Clamp in the vice the bottom screw through the spanner seizing ( 47 ).
• Using a 13 mm spanner unscrew the nut ( 42 ).
• Remove the nut ( 42 ), the spring ( 33 ), the washer ( 43 ), the piston ( 45 ) complete
with the o- ring ( 44 ), the washer or the washers’ stack regulating the compression
( 46 ), following this order.
24
74
33
34
54
64
24
44
33
