Replacing the muffler deadening material (SMR)

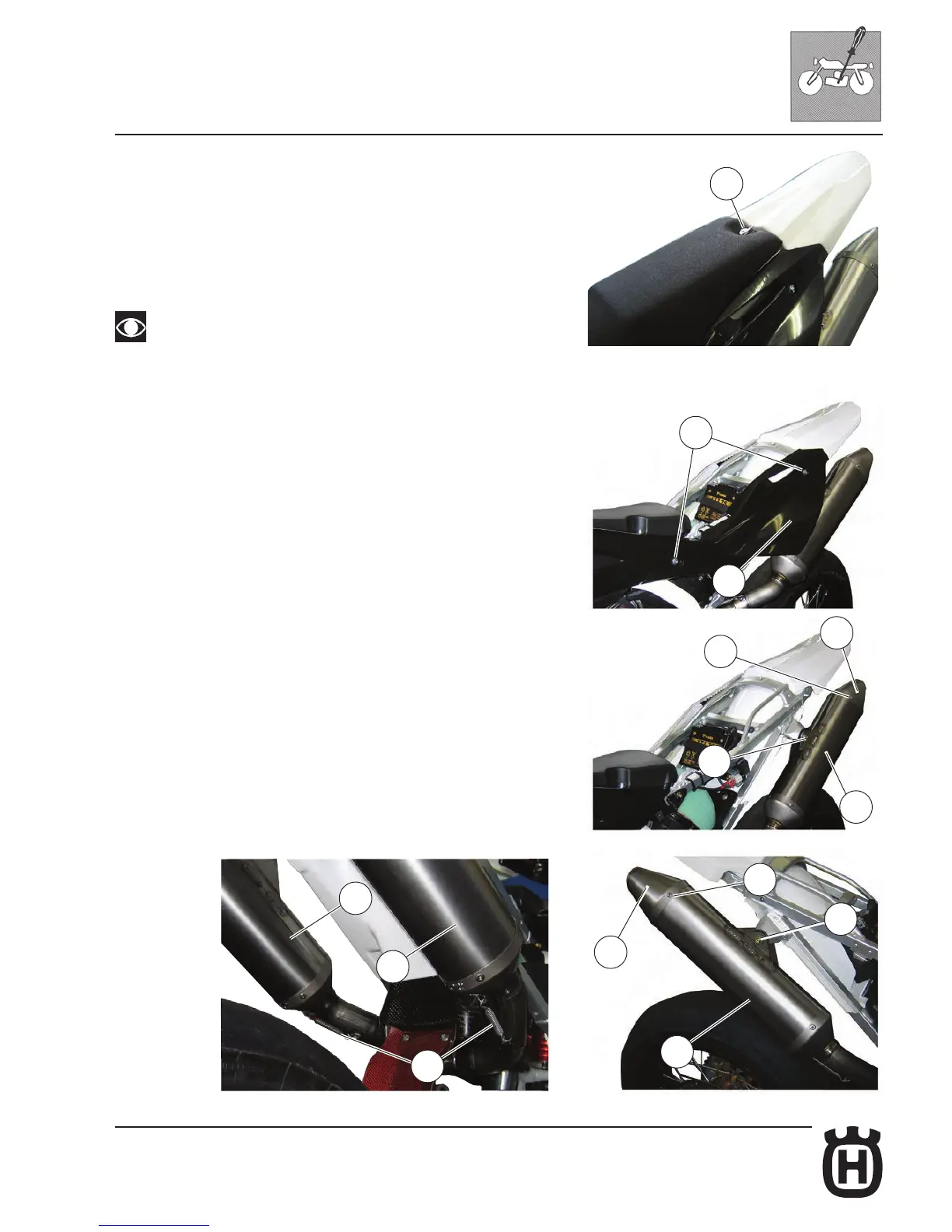

Remove the saddle after turning the locking back pin (1) anticlockwise, loosen the
screws (2) with an 8-mm T-shaped spanner and remove the side panel (3) (do the
same on the right side). Using an 8 mm T-shaped spanner on the outside and a
10 mm T-shaped spanner on the inside, remove the locking screw (4) of the
muffler. Remove the spring (5) and pull out the muffler (A) o (B). Remove the four
rear rivets (6), clamp and the exhaust terminal (7).
Remove innner pipe and replace the deadening material.
Reassemble L.H. side panel and saddle.
When diffuculties are found in removing the muffler, lightly beat with
a rubber or plastic hammer.
