F.20 Part. N. 8000 H0368 (09-2008)
ENGINE DISASSEMBLY

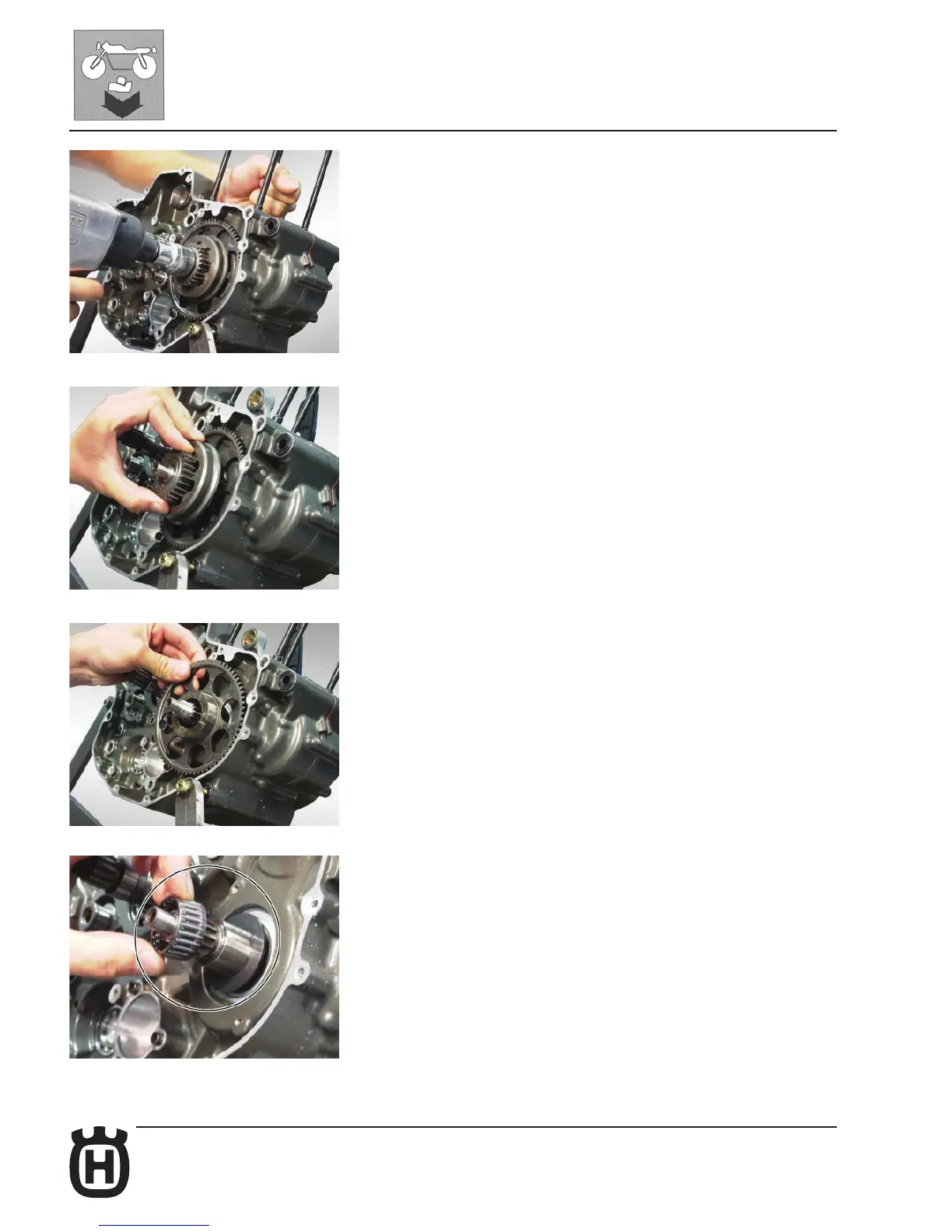

Primary trasmission driving gear disassembly
Place an aluminium shim between the teeth of the free-wheel gear (in order to
prevent its rotation) and loosen the fastening nut (27 mm wrench, left side thread
nut).
Remove the driving gear and the free-wheel (mark the reassembly direction), the
free-wheel gear, the needle bearing, the washer and the spacer.
