Husqvarna 2009 TE 310 - Cable Colour Coding (TC, TXC 450-510)

M.5Part. N. 8000 H0368 (09-2008)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT

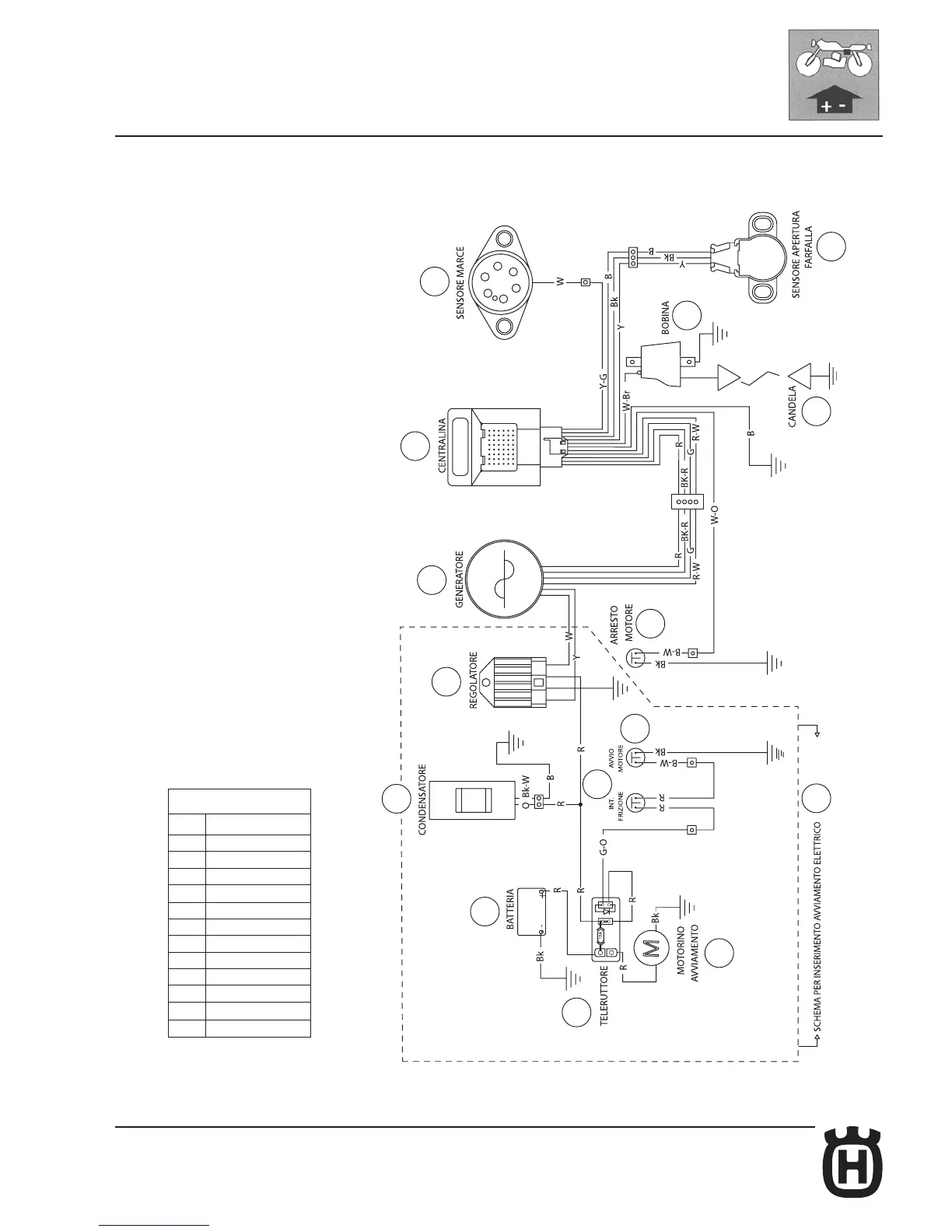

KEY TO ELECTRIC DIAGRAM
(TC-TXC 450-510)
1. Electronic power unit
2. Alternator
3. Voltage regulator (TXC)
4. Condenser (TXC)
5. Battery (TXC)
6. Electric start remote control switch (TXC)
7. Starting motor (TXC)
8. Spark plug
9. Gear shift position sensor
10. Electronic coil
11. Carburetor throttle position sensor
12. Engine stop
13. Engine start (TXC)
14. Clutch microswitch (TXC)
*: ELECTRIC STARTER KIT (NOT AVAILABLE ON TC)
Cable colour coding
BBlue
Br Brown
Bk Black
G Green
Gr Grey
Gr/R Grey/Red
O Orange
P Pink
R Red
Sb Sky blue
V Violet
W White
Y Yellow
1
2
3
4
5
6
7
8
10
9
11
12
13
14
*
