M.16 Part. N. 8000 H0368 (09-2008)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT

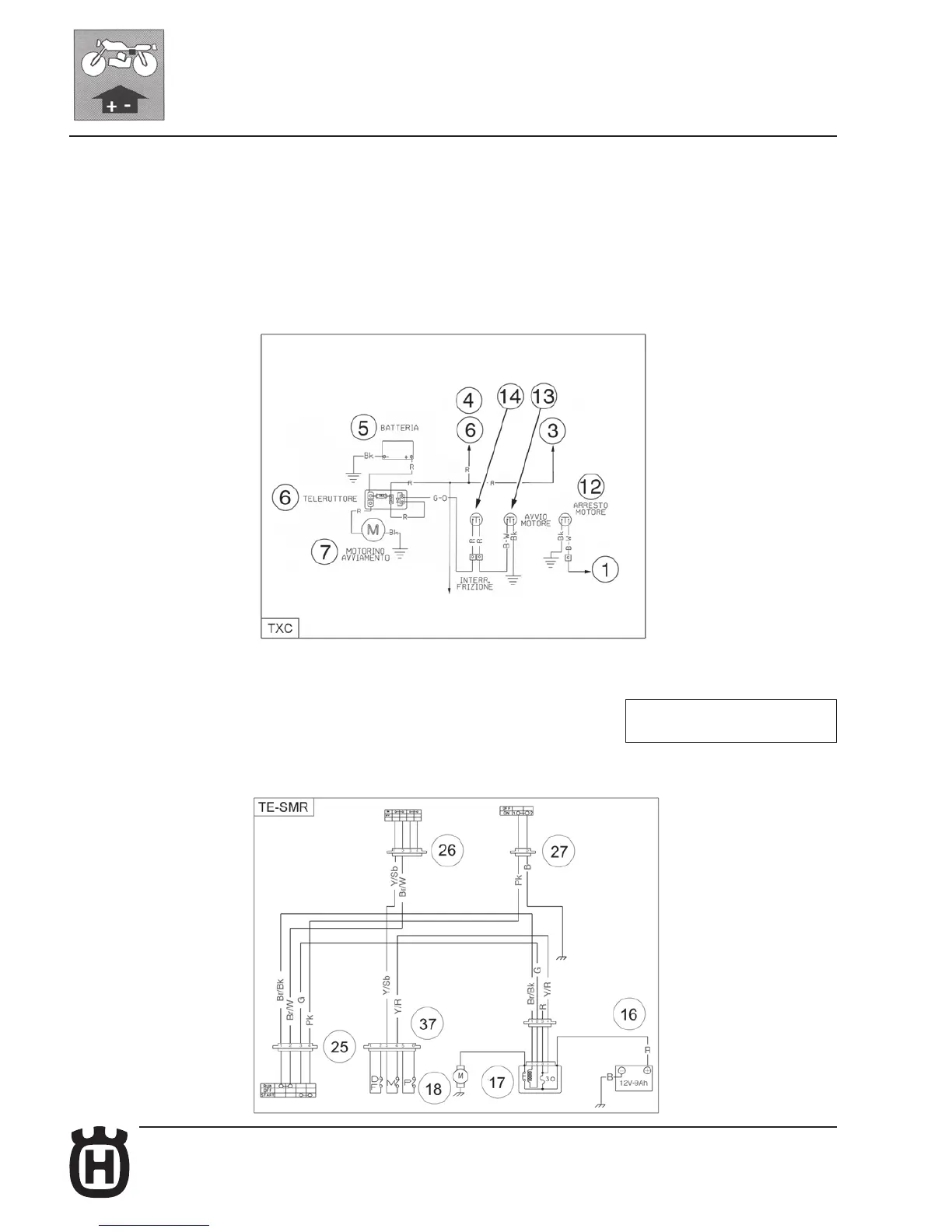

ELECTRIC STARTING SYSTEM (TE-SMR)
The starter system consists of:
- Battery (16);
- Electric start remote control switch (17);
- Starting motor (18);
- Right switch (25);
- Clutch switch (27);
- Ignition switch (26);
- Fuses (37).
ELECTRIC STARTING SYSTEM (TXC)
The starter system consists of:
- Battery (5);
- Electric start remote control switch (6);
- Starting motor (7);
- Engine stop switch (12);
- Engine start switch (13);
- Clutch switch (14).
Pull the clutch lever until the engine starts.
Pressing the starting switch, the button energizes the electric start remote control switch causing the contact points to close and completing
the starter system circuit from the strating motor to the battery.
For the key to electrical cables
see pages M.2÷M.3, M.4÷M.5.
