Husqvarna 2009 TE 310 - Shock Absorber Damping Adjustment

J.14
Part. N. 8000 H0368 (09-2008)
REAR SUSPENSION

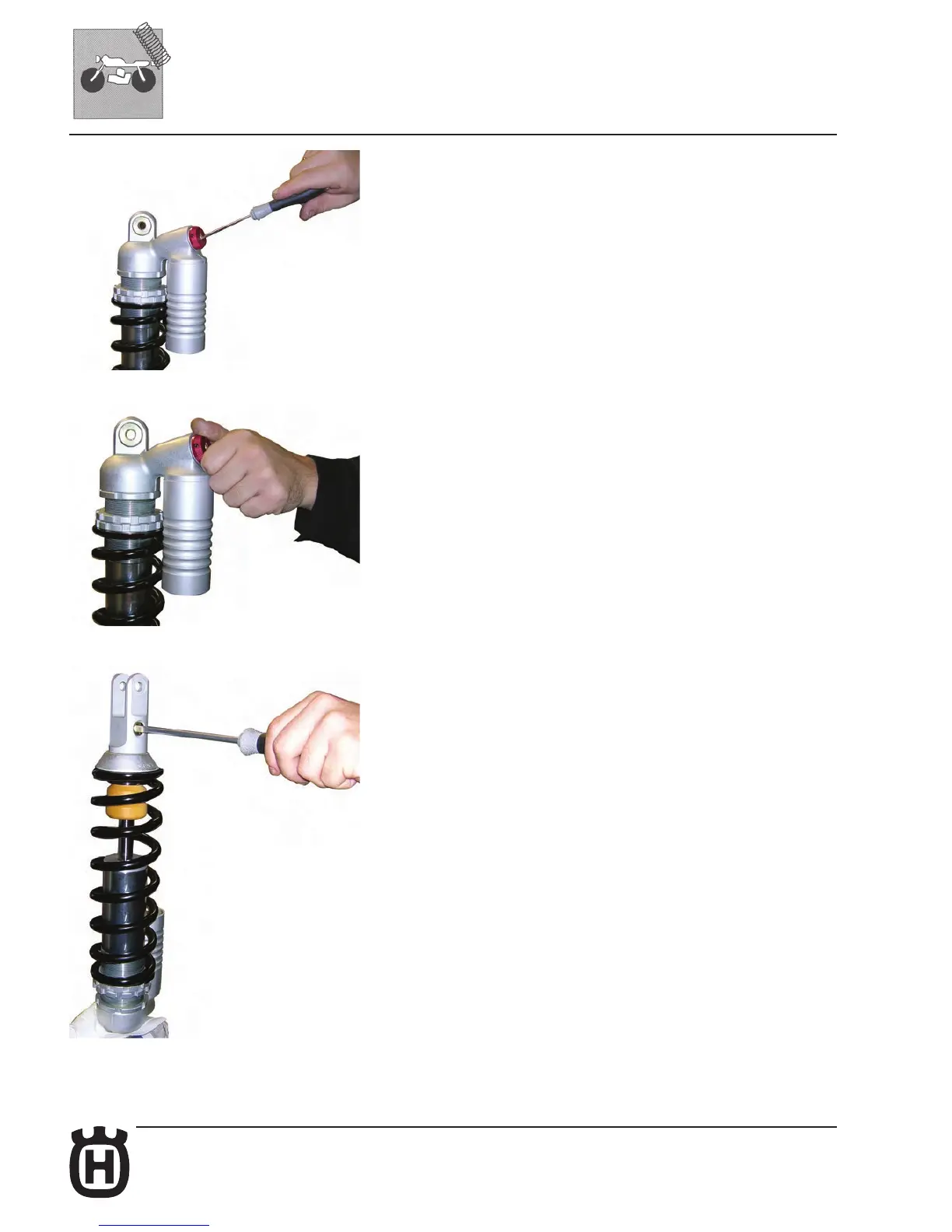

Shock absorber damping adjustment
Adjustment of the compression stroke is independent from the rebound stroke.
A) COMPRESSION – standard calibration:
1) low damping speed:
 -15 clicks (± 2 clicks)
(adjuster 1)
2) high damping speed:
 -15 clicks (± 2 clicks)
(adjuster 3)
To reset the standard calibration, rotate upper adjusters (1) and (3) clockwise to
the fully-closed position, then move back for the clicks specified above.
For smoother braking, turn the adjusters anticlockwise; turn them clockwise for
harder braking.
B) EXTENSION – standard calibration:
 -18 clicks (± 2 clicks)
To reset the standard calibration, rotate upper adjuster (2) clockwise to the fully-
closed position, then move back for the clicks specified above.
For smoother braking, turn the adjuster anticlockwise; turn it clockwise for harder
braking.
