D.32 Part. N. 8000 H0368 (09-2008)
SETTINGS AND ADJUSTMENTS

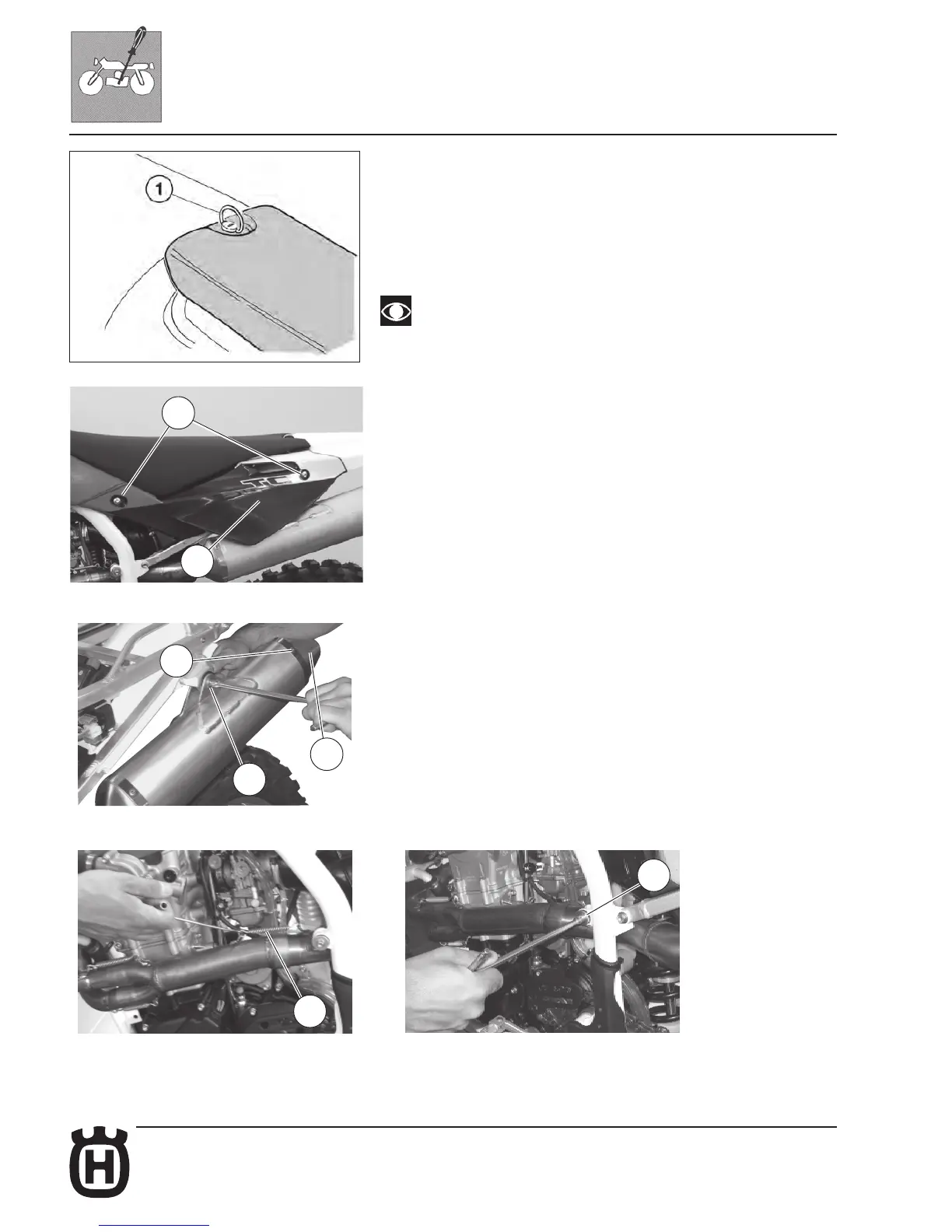

Replacing the muffler deadening material (TC-TE-TXC)
First turn counterclockwise fastening rear pin (1) then remove saddle, screws (2)
and L.H. side panel (3). Using an 8 mm T-shaped spanner on the outside and a
10 mm T-shaped spanner on the inside, remove the locking screw (4) of the
muffler. Remove the spring (5) and with an 8 mm T-shaped spanner remove the
screw (8); then pull out the muffler.
Remove the six rear rivets (6), clamp and the exhaust terminal (7).
Remove innner pipe and replace the deadening material.
Reassemble L.H. side panel and saddle.
When diffuculties are found in removing the muffler, lightly beat with
a rubber or plastic hammer.
