G.25Part. N. 8000 H0368 (09-2008)
ENGINE OVERHAULING

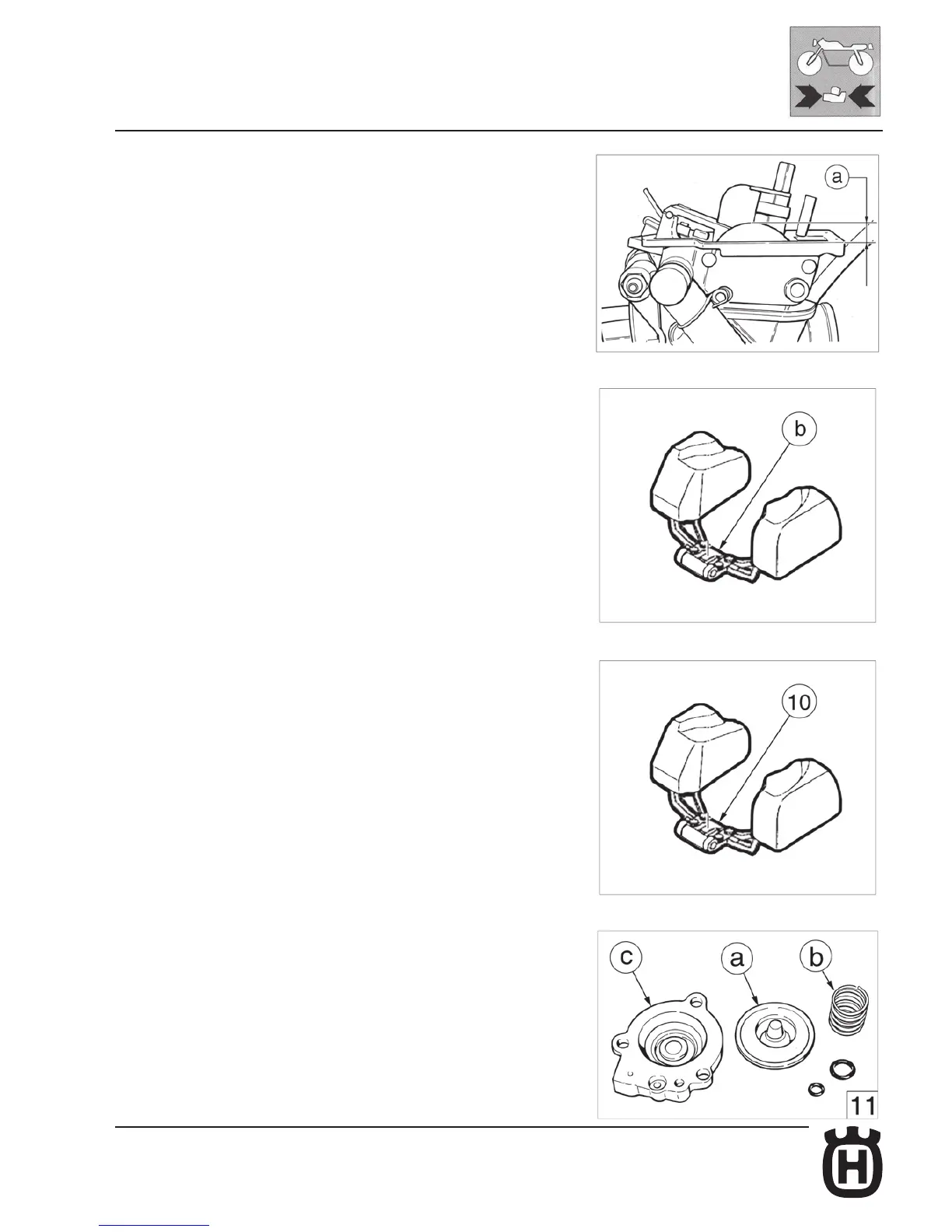

FLOAT HEIGHT
Measure:
- Float height (a).
Out of specification: Adjust.
Float height: 8 mm (0.31 in.)
Measurement and adjustment steps:
- Hold the carburetor in an upside down position.
NOTE:
- Slowly tilt the carburetor in the opposite direction, then take the measurement
when the needle valve aligns with the float arm.
- If the carburetor is level, the weight of the float will push in the needle valve,
resulting in an incorrect measurement.
- Measure the distance between the mating surface of the float chamber and top of
the float using a vernier calipers.
NOTE:
The float arm should be resting on the needle valve, but not compressing the needle
valve.
- If the float height is not within specification, inspect the valve seat and needle valve.
- If either is worn, replace them both.
- If both are fine, adjust the float height by bending the float tab (b) on the float.
- Recheck the float height.
FLOATER
Inspect:
- Float (10).
Damage: Replace.
ACCELERATOR PUMP
Inspect:
- Diaphragm (accelerator pump 11) (a).
- Spring (b).
- Cover (c).
Tears (diaphragm) / Damage ® Replace.
