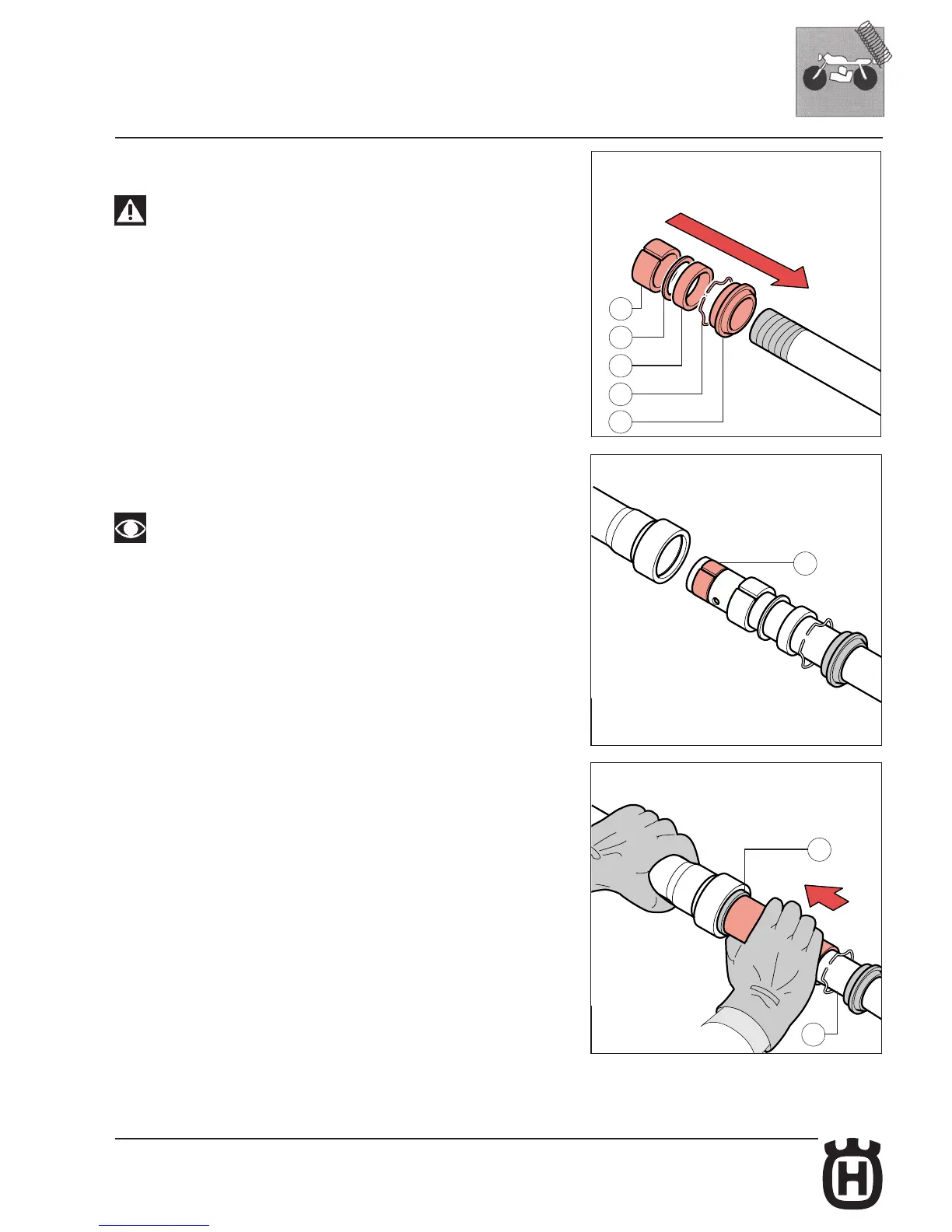

• Insert the following components in the stanchion tube in this order: dust seal ( 12),
stop ring ( 11 ), oil seal ( 10 ), spring cup ( 9 ) and bottom guide bushing ( 8 ).
WARNING
Make sure the oil seal (10) is correctly oriented in a way that the hollow side
is turned towards the spring cup (9).
• Remove the adhesive tape from the end of the stanchion tube, cleaning any traces
of adhesive left on the fork.
• Insert the top guide bushing ( 39 ) by hand.
If this operation is difficult by hand, use a flat- tip screwdriver in the bushing
groove.
• Delicately introduce the stanchion tube into the slider, being very careful not to
damage the top guide bushing.
• Guide the bottom guide bushing until it comes into contact with the slider, the spring
cup and the oil seal.
• Mount the special introducer on the stanchion tube ( 5 ) and use this, by pushing
on the oil seal ( 10 ), to insert the bottom guide bushing, the spring cup and the oil
seal.
