L.4 Part. N. 8000 H0368 (09-2008)
BRAKES
Disc brake

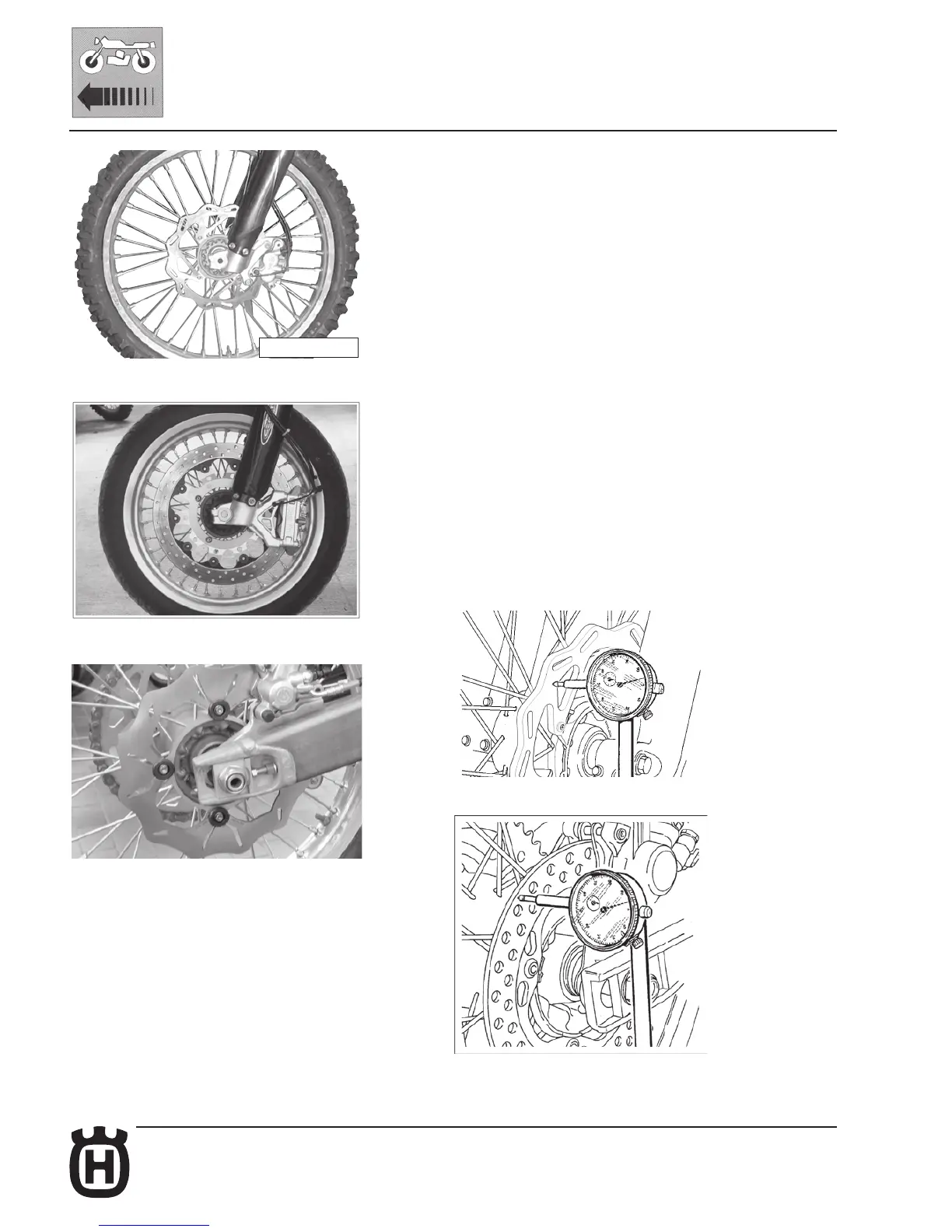

A regular check of brake disc condition is most important; the disc should be
absolutely clean without any traces of rust, oil, grease or dirt and should not be
excessively scored.
Front brake disc diameter: 10.24 in. (TE, TC, TXC); 12.6 in. (SMR)
Front brake disc thickness (when new): 0.118 in. (TE, TC, TXC); 0.197 in. (SMR)
Brake disc thickness at wear limit: 0.098 in. (TE, TC, TXC); 0.177 in. (SMR)
Rear brake disc diameter: 9.45 in.
Rear brake disc thickness (when new): 0.157 in.
Brake disc thickness at wear limit: 0.138 in.
The disc distortion must not exceed 0.15 mm/0.006 in. (this measure is to be taken
with a comparator and with the disc mounted on the rim).
Loosen the four fixing screws to remove the disque from the rim. When reassembling,
accurately clean the supporting surfaces and tighten the screws to the torque
required.
SMR
TE-TC-TXC
SMR
TE-TC-TXC
