M.13Part. N. 8000 H0368 (09-2008)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT

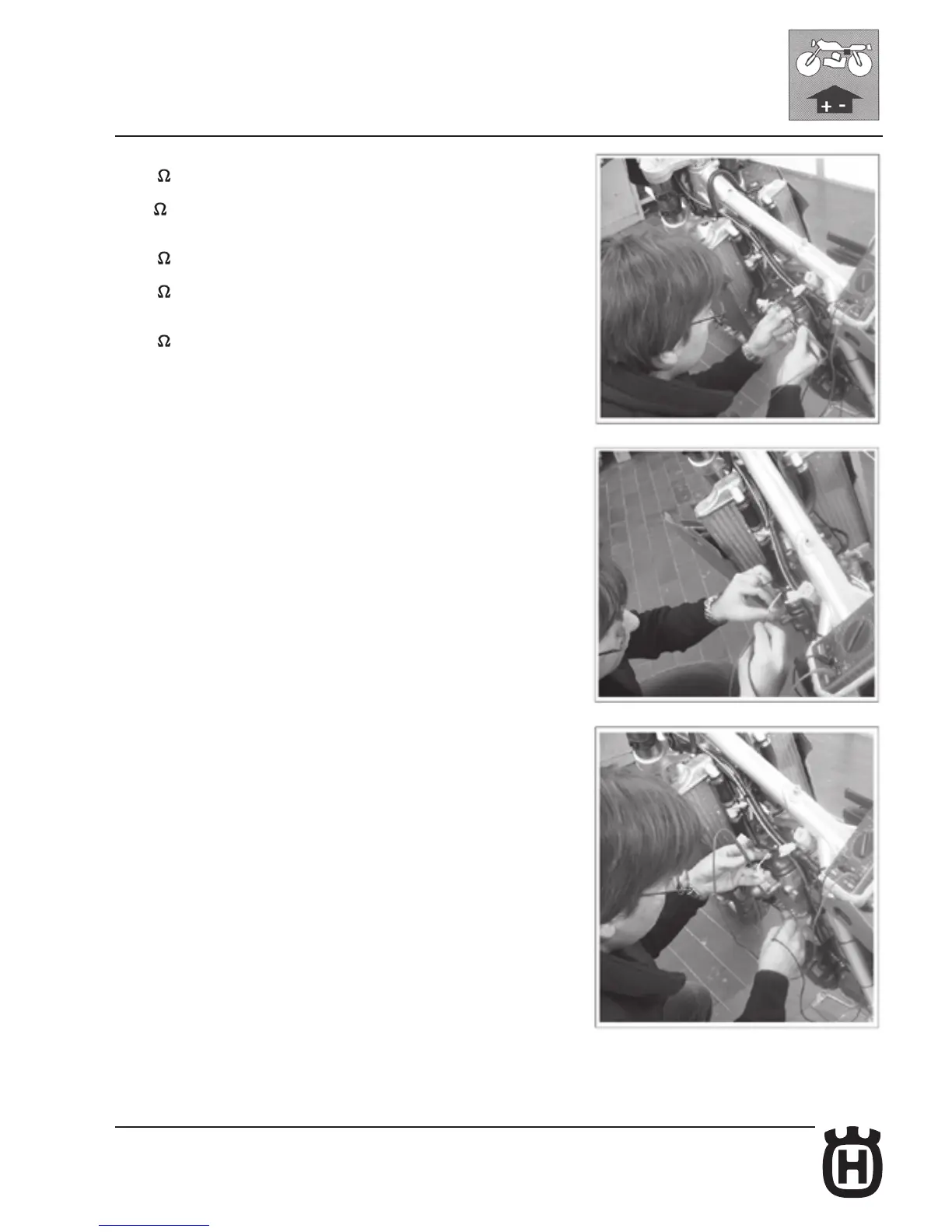

1) EXCITER - Resistance between BLACK-RED and RED-WHITE cables:
12,7
+/- 15% (TC-TXC)
1) TRIGGER - Resistance between WHITE and GREEN cables:
100 +/- 15% (TE-SMR)
2) CHARGE- Resistance between YELLOW and WHITE cables:
0,16 +/- 15% (TC-TXC)
2) CHARGE- Resistance between then YELLOW cables:
0,65 +/- 15% (TE-SMR)
3) LAMP- Resistance between YELLOW and GROUND cables on the engine:
0,65 +/- 15% (TC-TXC)
If the resistance is not between the specified values, replace the generator assy.
