M.44 Part. N. 8000 H0368 (09-2008)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT

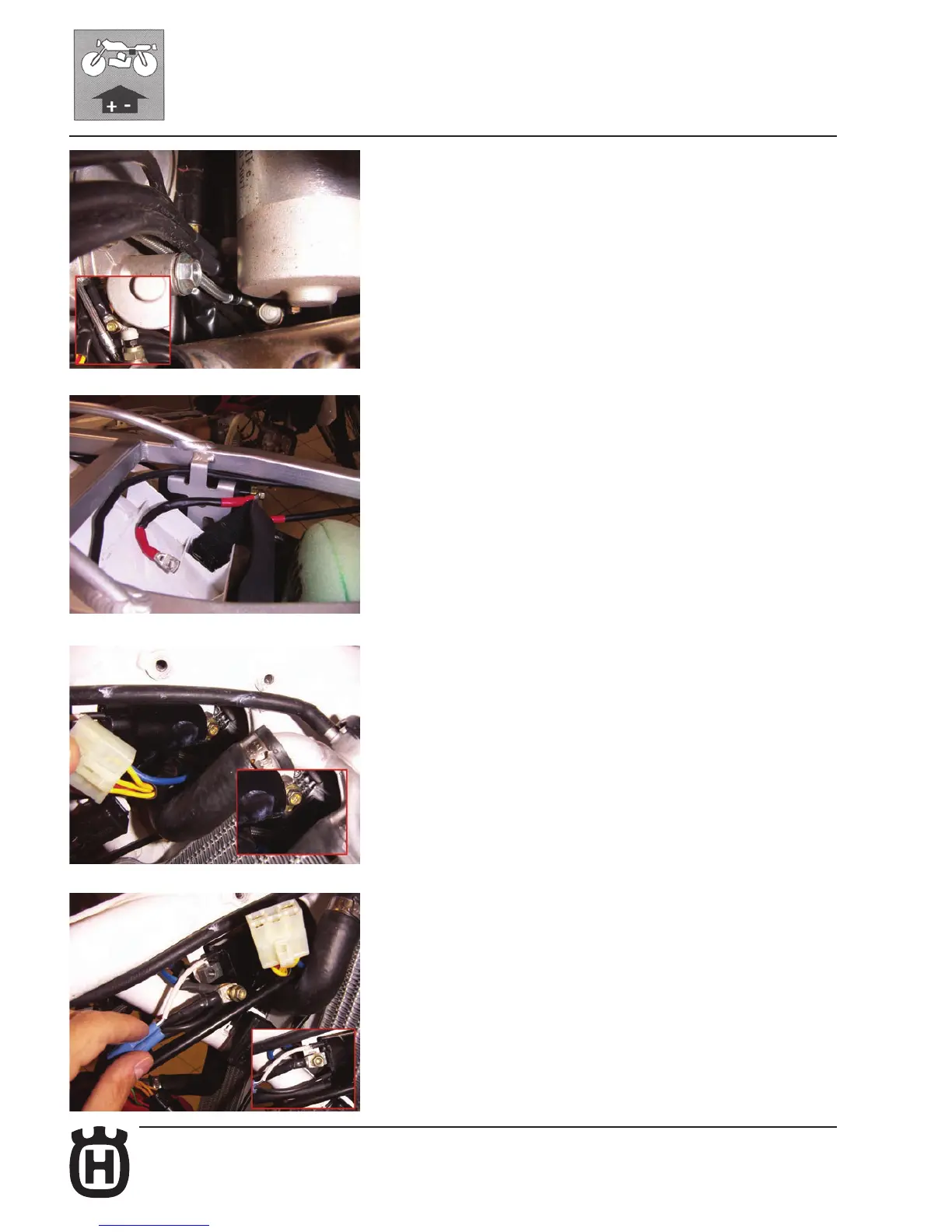

• Securing of earth cables between motor-frame-battery.
Earth cables between motor and frame and between motor and battery are
secured to the left screw of the starter motor.
• Threading of negative battery cable.
Threading of earth cable between motor and negative cable of battery.
• Securing of earth cable to regulator cable.
Secure the earth cable of the regulator to the right screw of the injection coil.
• Securing of earth cables between motor and frame. Electric earthing.
Secure the earth cable between the motor and the frame and the cabling
earthing slot as shown in the figure.
