O.3Part. N. 8000 H0368 (09-2008)
“KIT” ASSEMBLING INSTRUCTIONS

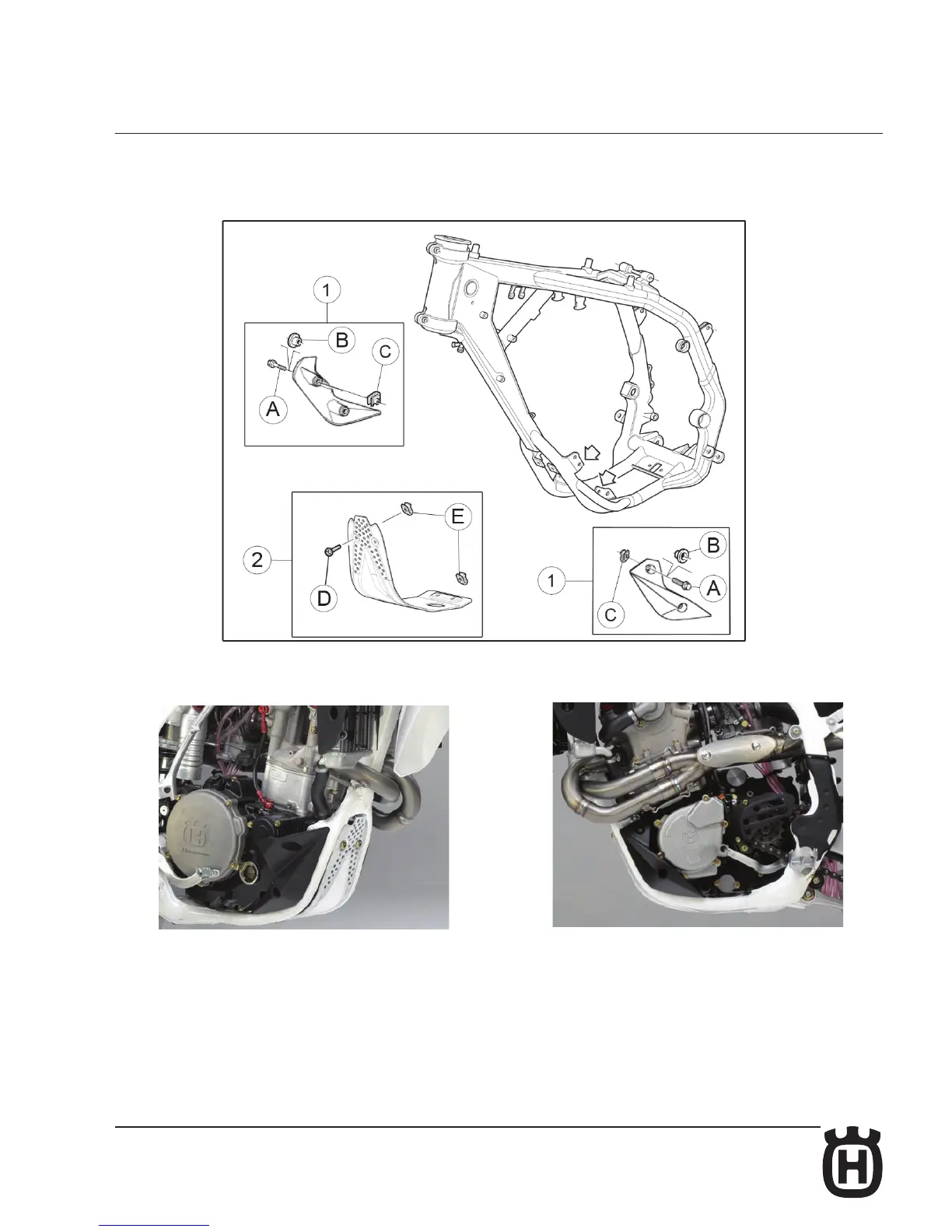

1- Side engine guards (SMR excluded) and central engine guard.
1, 2- Side engine guards (SMR excluded)
3- Central engine guard
A- Screw M6x25 mm (no. 4 pieces)
B- Bushing Ø6,2xØ8xØ12x9 mm (no. 4 pieces)
C- Nut M6 (no. 4 pieces)
D- Screw M6x15 mm (no. 4 pieces)
E- Nut M6 (no. 4 pieces)
Assemble as shown in the figure.
