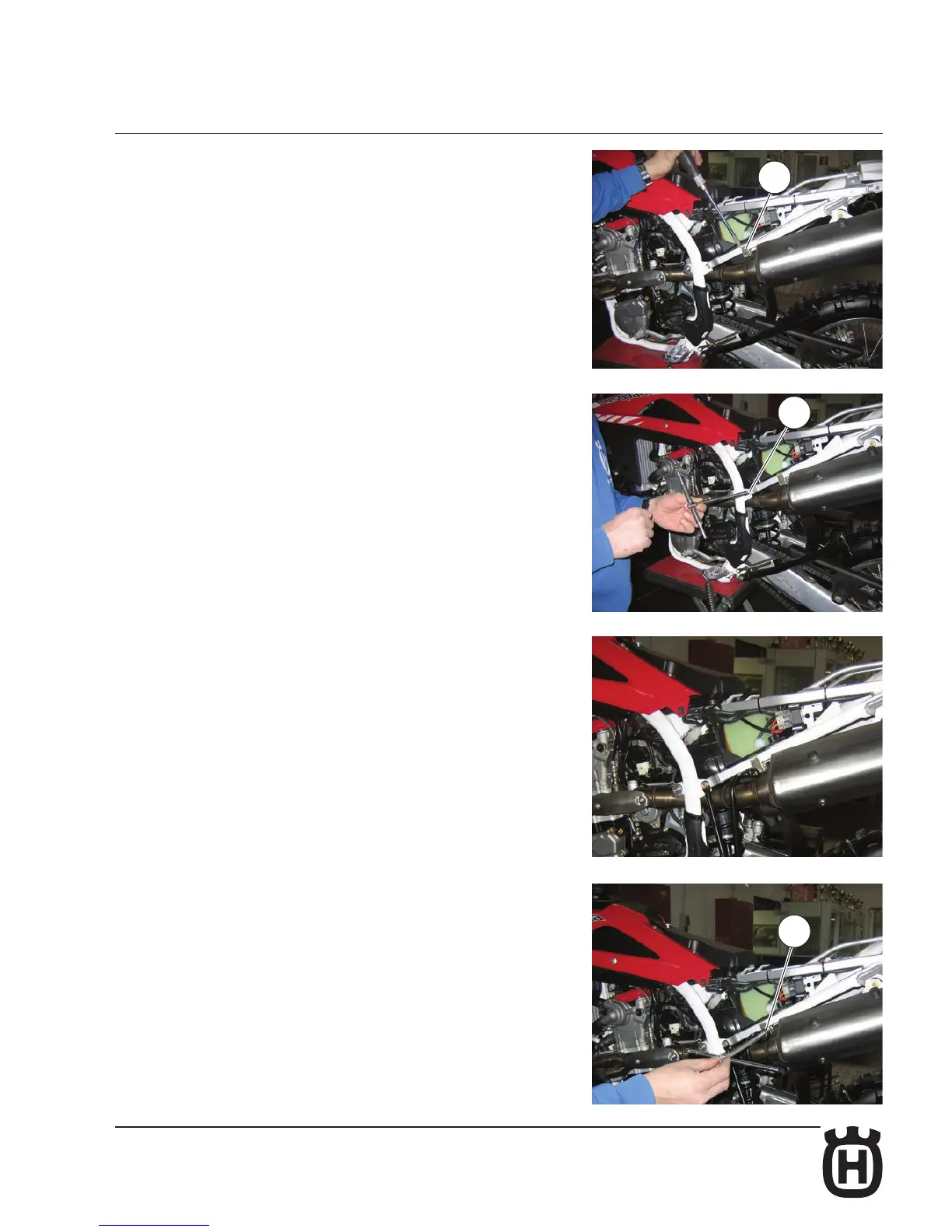

“KIT” ASSEMBLING INSTRUCTIONS
- Insert the plate (2) on the back frame;
- Remove the frame lower screw (7);
- Provisionally, fasten the foot-rest support in the front side by means of the
M8x25 mm (4) screw supplied with the Kit (do not tighten fully);
- Insert the spacer (5) into the plate and fasten the rear by means of the M8x40
mm (6) screw also supplied with the Kit;
2
7
6
