O.12 Part. N. 8000 H0368 (09-2008)

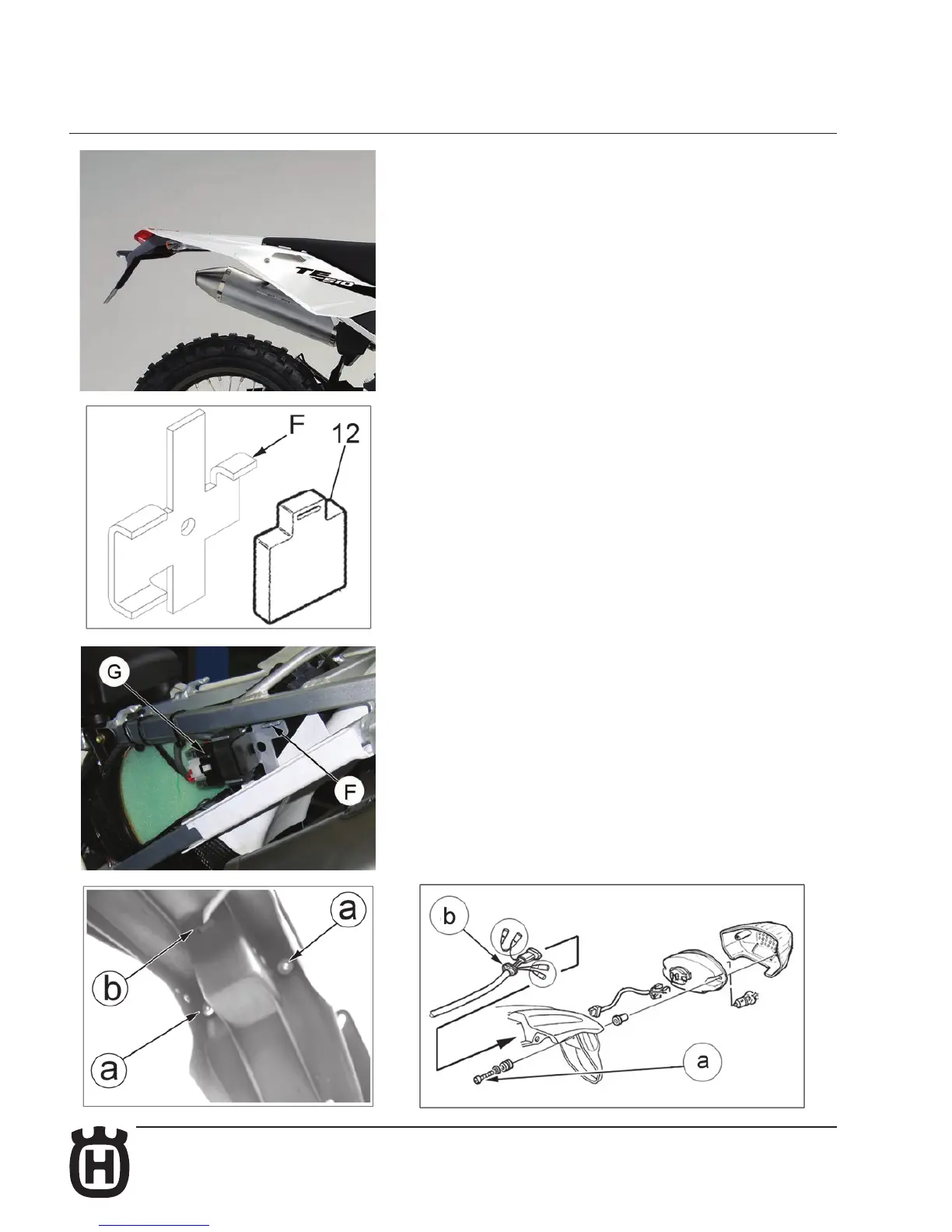

“KIT” ASSEMBLING INSTRUCTIONS
REAR TURN SIGNALS
Remove the seat and the L.H. side panel as shown on page E.15-E16.
Assemble the turn signal flasher (12) on the metal plate (F) near the solenoid
starter (G). Assemble the turn signal (3) or (4) on the hole of the frame and
tighten the nut (10).
Remove the screws (a), the rear tail light then connect the turn signals to the
main wiring harness (see the wiring diagram on page O.13). Reassemble the
rear tail light and the grommet (b).
The description refers to the assembly of the left turn signal (3), the assembly
of the right turn signal is symmetrical
After completing the assembly operation, assemble back the previously removed
components.
