FRAME AND WHEELS

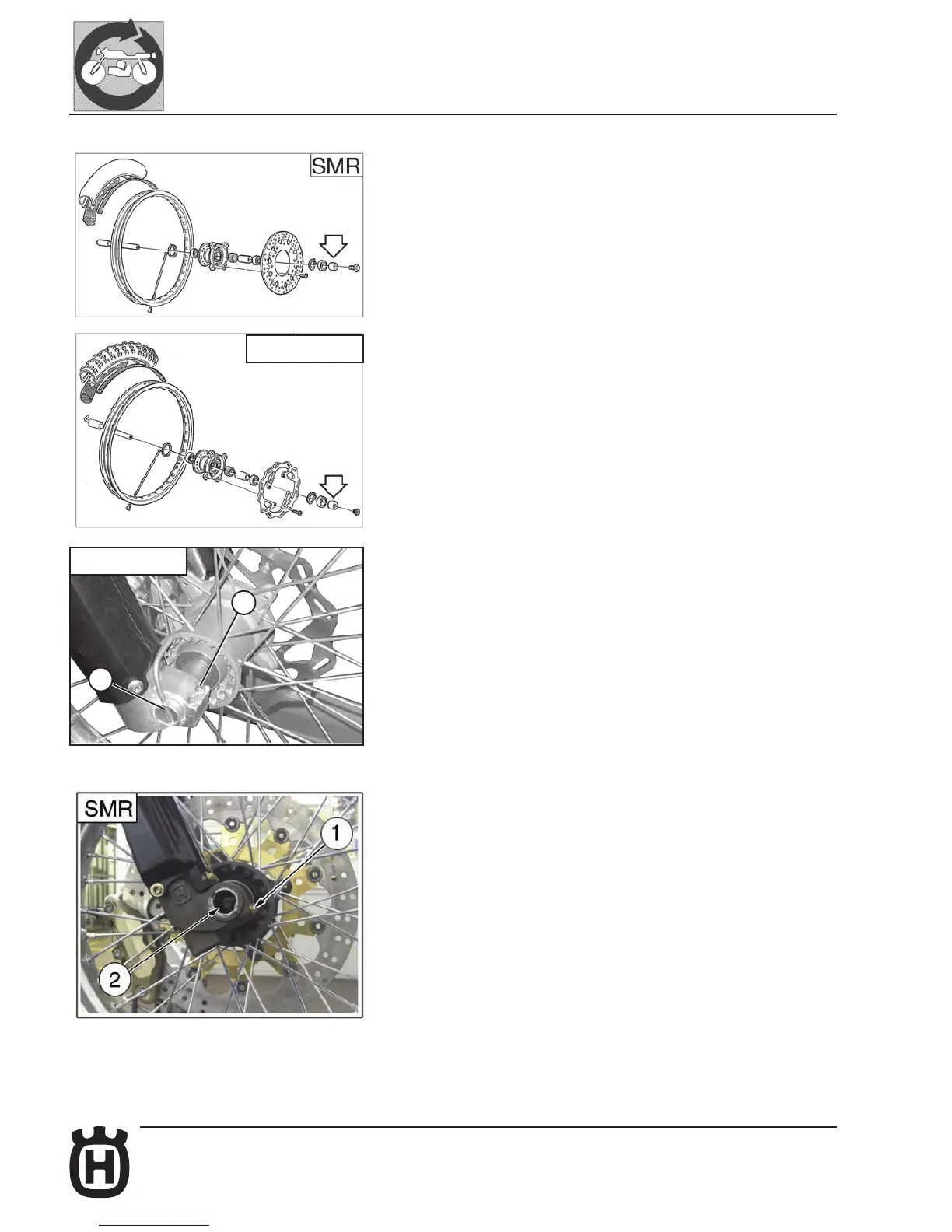

Reassembling the front wheel (pages Y.8-Y.9)
Fit the L.H. spacer on the wheel hub.
TE-TC-TXC: Fit the wheel between the front fork legs so that the brake disc is fitted
into the caliper.
SMR: Fit the wheel between the front fork legs.
Fit the wheel axle (2) from the R.H. side, after greasing it and push it to the stop on
the L.H. leg; during this operation, the wheel should be turned.
TE-TC-TXC
TE-TC-TXC
2
1
