E.18 Part. N. 8000 H0364 (09-2008)
GENERAL OPERATIONS

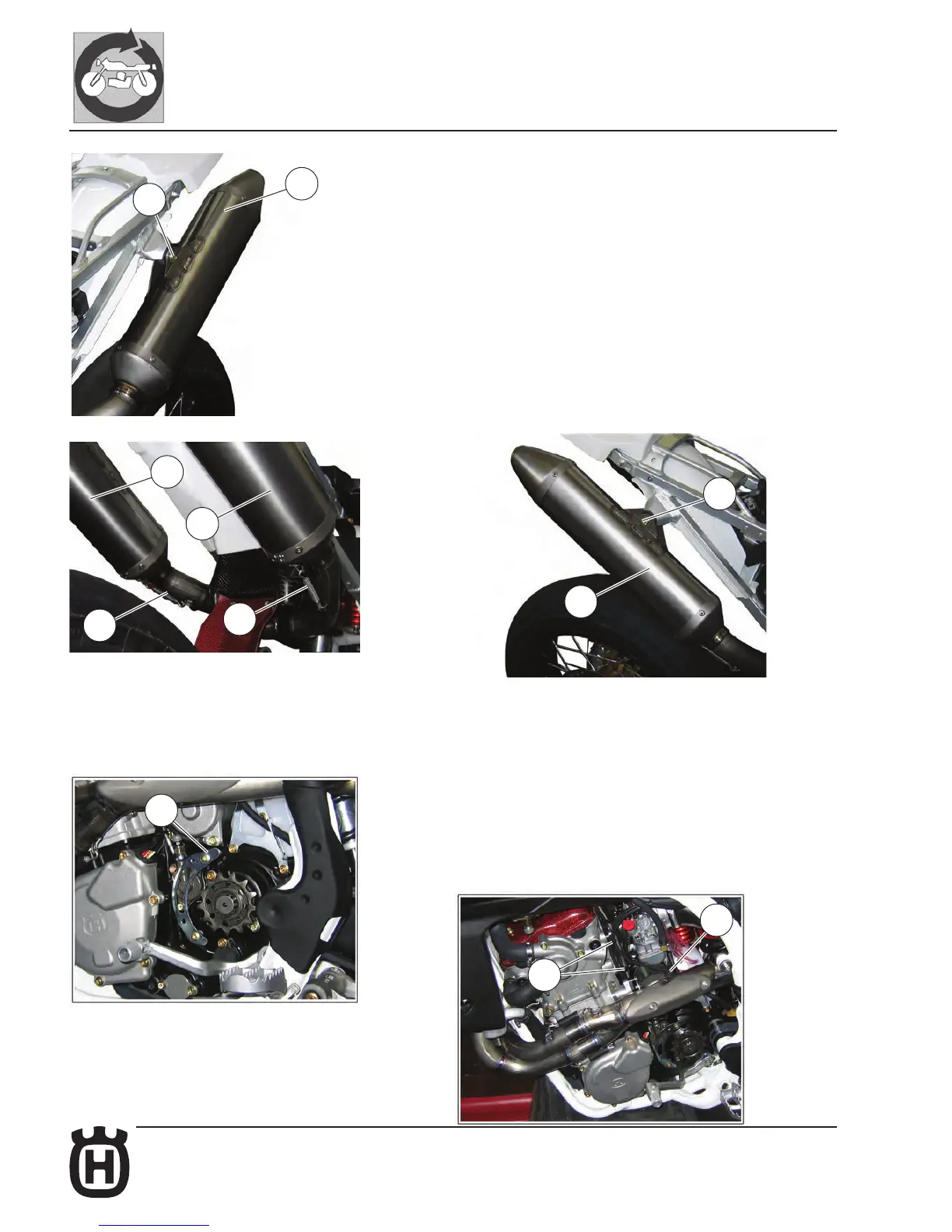

On the left side disconnect the electric connections from the starting motor [use
an 8 mm wrench to remove the earth cable (5) and a 10 mm wrench for the nut
under the rubber cap (6)], remove the clamps (A) that hold the clutch pipe and
the alternator cable.
5
A
6
SMR: use an 8 mm T-wrench and a 10 mm T-wrench inside to remove the
fastening screw (1) of silencers (3) and (4). Remove the spring (2) and extract
silencers (3) and (4).
1
3
1
4
3
2
4
2
