E.24 Part. N. 8000 H0364 (09-2008)
GENERAL OPERATIONS
TE-SMR

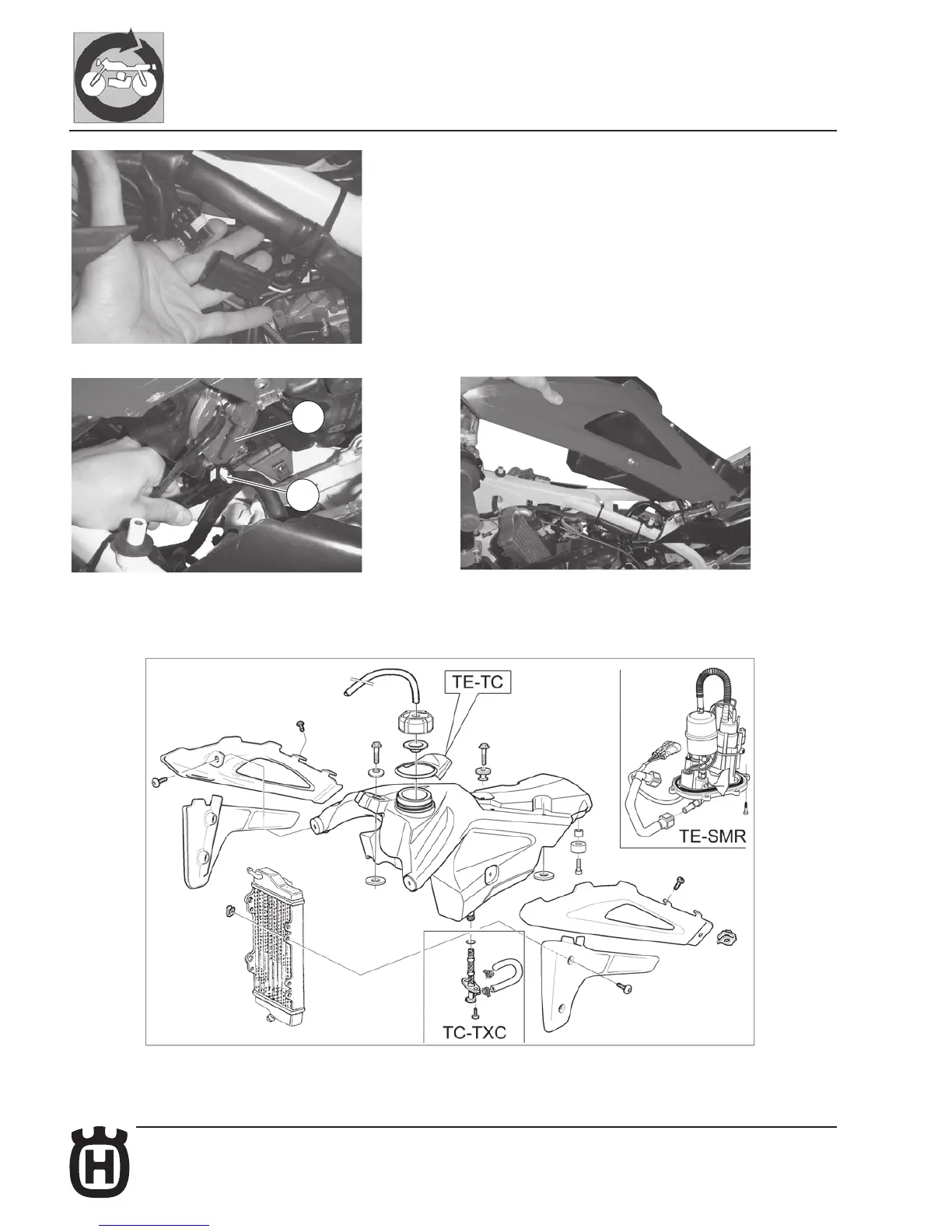

Remove the vent pipe (1) from the fuel tank cap. Unscrew the fastening screw
(6) of the fuel tank. Remove the screws (4) holding the conveyors to the tank;
remove the conveyors (7), the screws (5) holding spoilers (8) to radiators. Re-
move the spoilers. Disconnect the connector of the fuel pump from the main
cable. Disconnect the feed line (B) from the outlet fitting (C) on the fuel pump on
the lower rear part of the tank the feed line. Extract the tank.
C
B
