Excelon Operator’s Manual 23
4. Installation Procedure
4.1 Edger
① Remove the shock-absorbing material from the packing box and pull out the
Edger carefully.
② Unfasten the screw at the Edger Front Cover and lift it open.
③ Remove the Edger Left Cover.
④ Remove the Carriage Fixing Bracket.
⑤ Remove the Feeler Fixing Bracket.
⑥ Plug the Pump Power Cable into the receptacle for Pump at the back of the
product.
⑦ Connect Water Supply Hose into the Pump.
⑧ Connect Water Drain Hose into Water Drain Hole and tie it with the fixing clip.
⑨ Assemble the Edger Left Cover and Edger Front Cover.
⑩ Check the Initialization.
Store the Carriage Fixing Bracket and Feeler Fixing Bracket into the toolbox for
the use of moving the product.

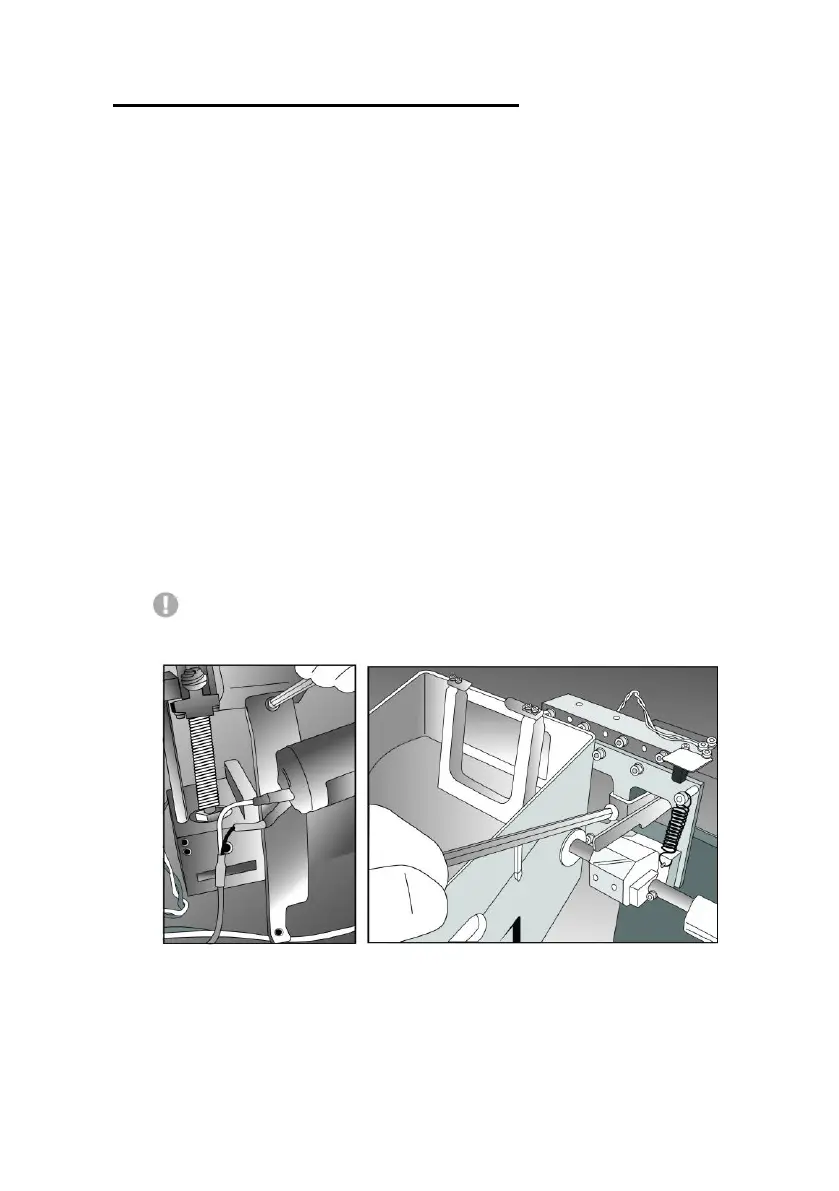

[ Removing the Carriage Fixing Bracket ] [ Removing the Feeler Fixing Bracket ]
