6.3.6 Bevel Adjustment

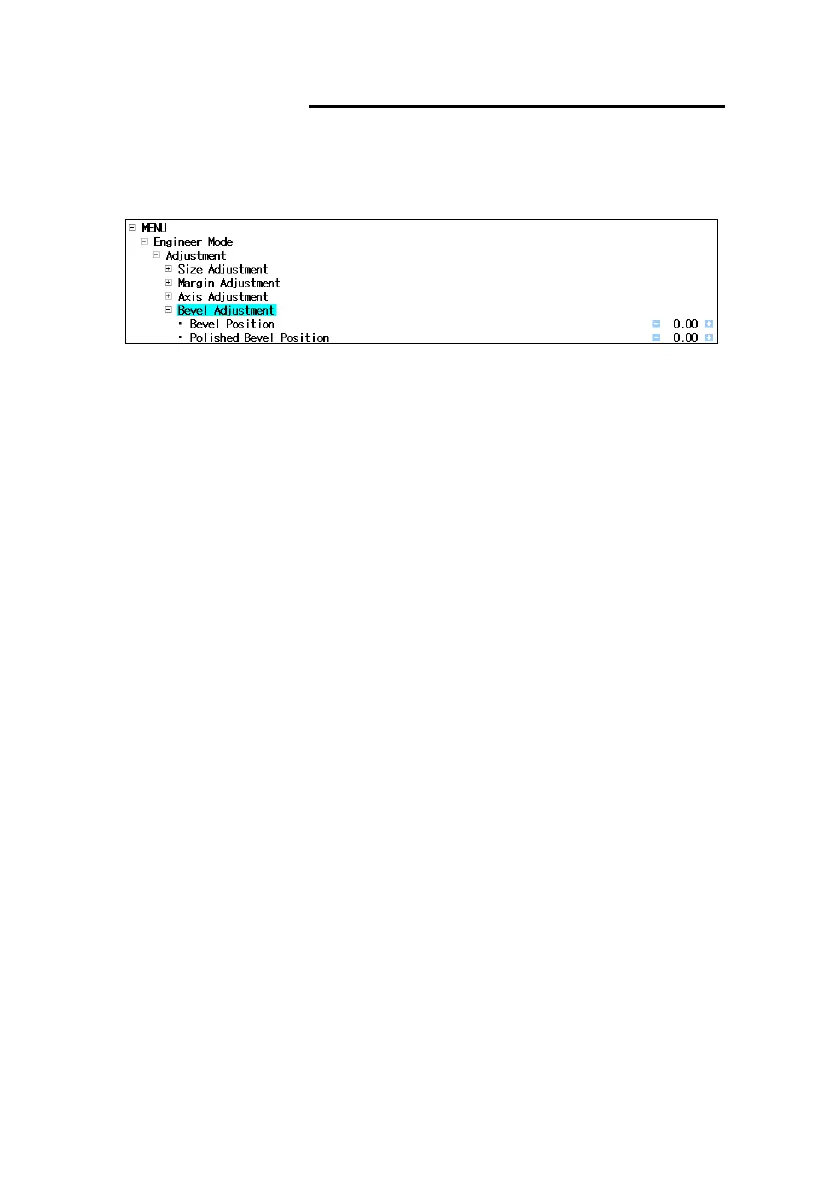

▪ Location : Engineer Mode  Adjustment  Bevel Adjustment
• Test Pattern
- Execute the Circle pattern (Ø 50) with the beveled position 50%.
• Test Cases
- Make the circle pattern with polishing and the circle pattern without polishing
respectively.
• Adjustment
- Change the value within the tolerance
±
±
0.1mm.
- Follow the next instructions to adjust the incorrect beveling.
