6.3.8 Grooving Adjustment

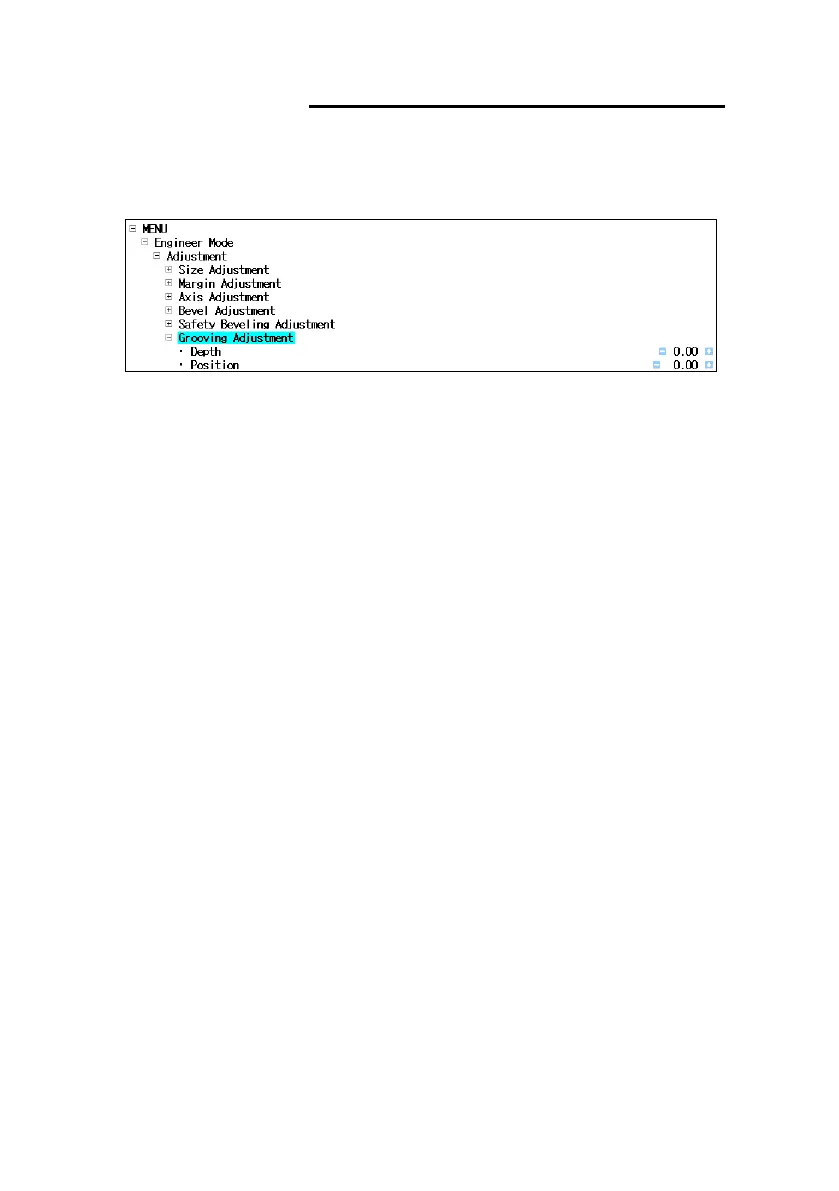

▪ Location : Engineer Mode  Adjustment  Grooving Adjustment
• Test Pattern
- Execute the Circle pattern (Ø 50) with the grooving position 50%.
• Test Cases
- Check the grooving depth, width and position.
• Adjustment
- Change the value within the tolerance
±
±
0.1mm.
- Follow the next instruction to correct the incorrect grooving process.
