7. Alarm List
Alarm
No.

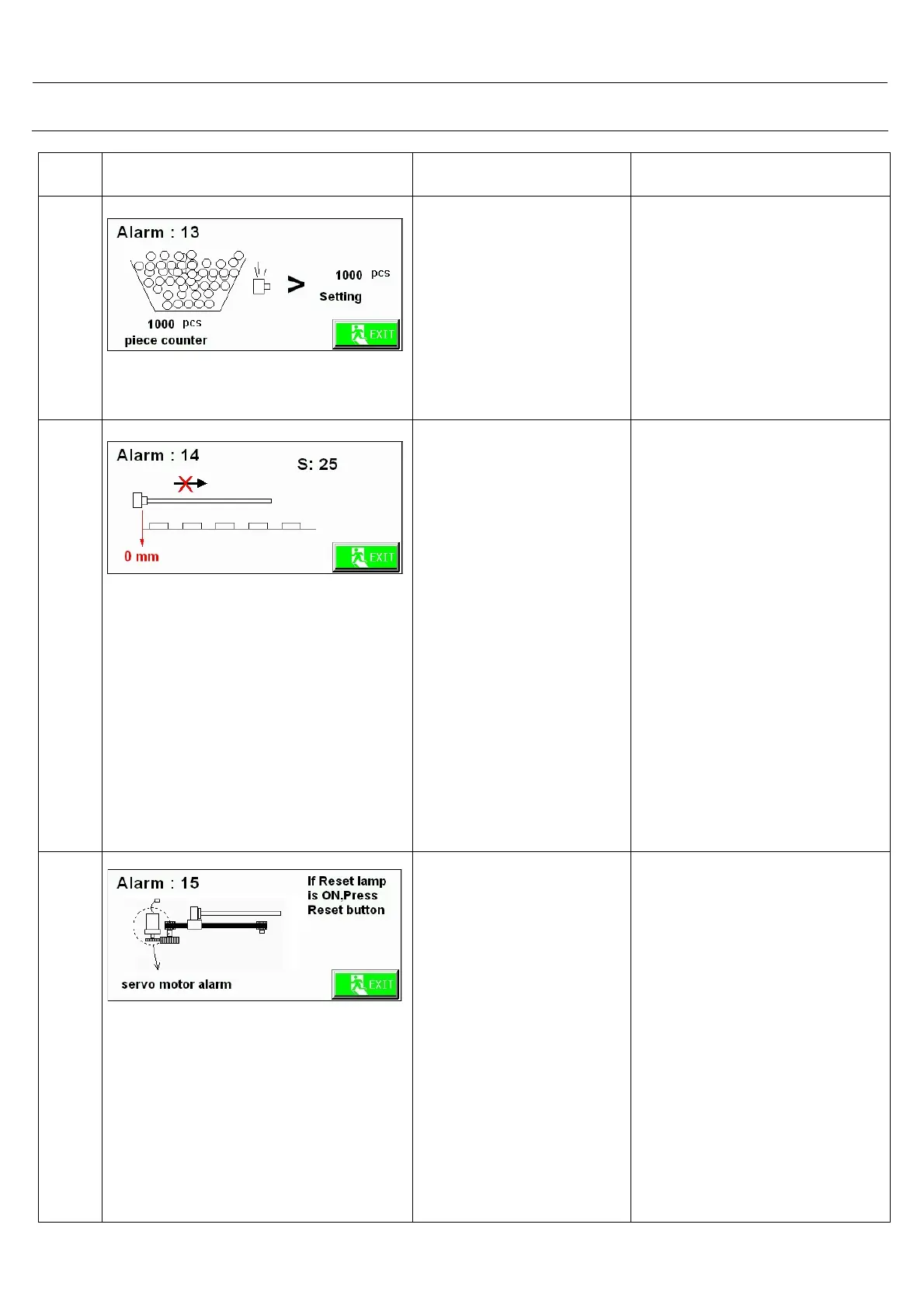

Alarm Picture Cause Action
13
Bar feeder reached part value.
Setting part value and
part counter are the
same.
(1) Set a larger value in
(3-11-4 ) Or
(2) “ off “ the piece counter in
(3-11-4 ) Or
(3) Set (2-4) piece counter to
zero.
14
Pushrod can not move in zero point.
Something keeps the
Pushrod in zero point,
so it can’t go forward.
Check the locking mechanism
of pushrod.
See 11-1 Mechanism
Drawing
Item3 : rear pushrod support
Arm
Drawing NO : S24201-001X
Note:
S18: happen on bar check.
S25: happen on Pushrod
push to first feeding
position.
S34: happen on pushing
profile bar to first feeding
position.
S29: happen on feeding to
work piece position.
15
Servo motor can not move.
For barfeeder safety
circuit , when safety
circuit is open, the servo
motor will cut off and the
Reset lamp will be ON
as well, and when safety
circuit is closed , to
reconnect the servo
motor power , press the
reset button.
-Press the reset button.
-If there is still the same
Alarm , check display
message of the servo
amplifier
To Next Page
