7. Alarm List
Alarm
No.

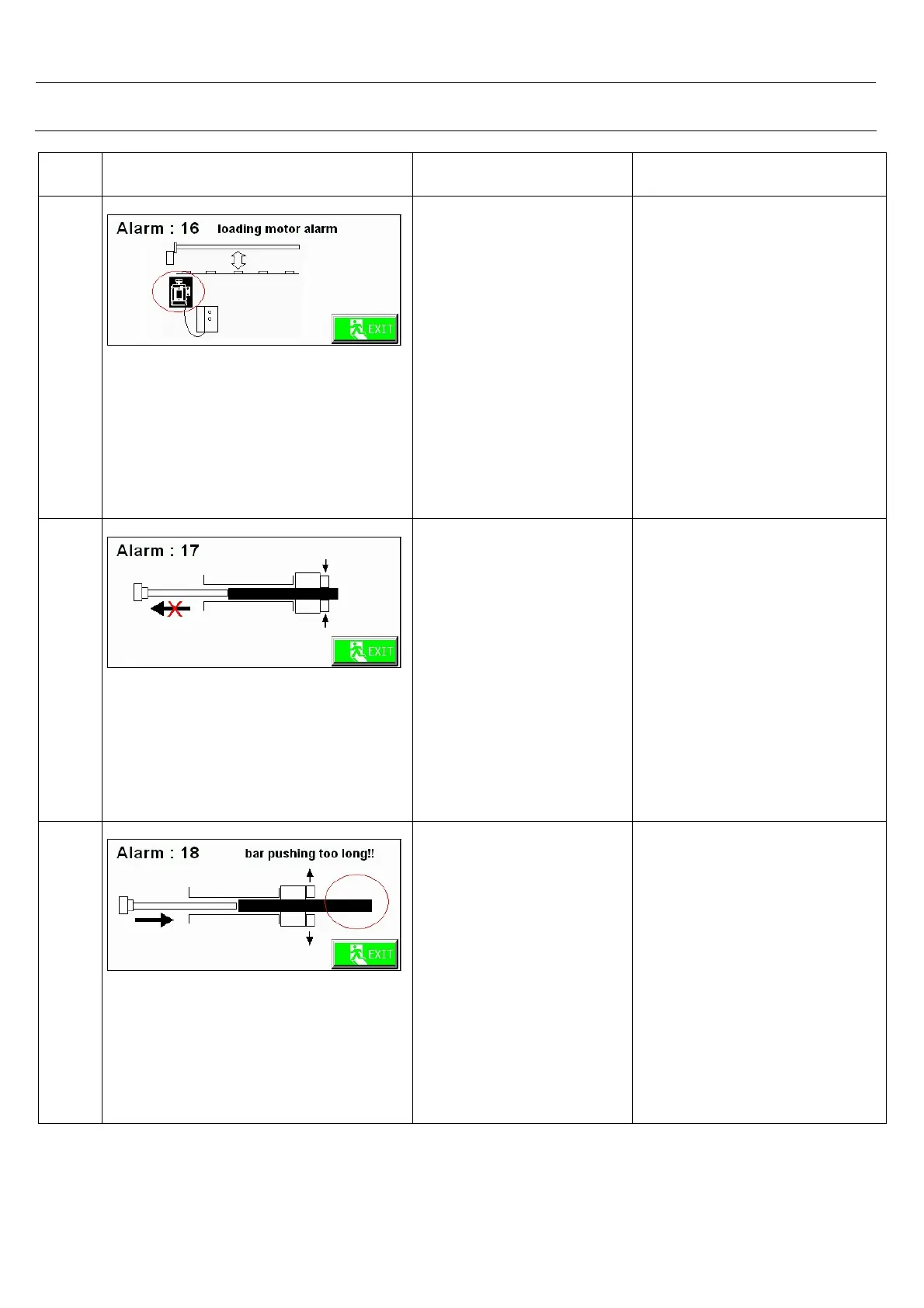

Alarm Picture Cause Action
16
AC motor can not move, overload
alarm.
There is a problem at the
loading mechanism.
Check the loading
mechanism, AC motor and
driver.
See 11-1 Mechanism
Drawing
:
(1) Item3 : Loading motor
(2) Item4 : Ballscrew
(Drawing NO :
S24403-000X)
17
Chuck close, Pushrod can not go
back to safety position.
There is a problem
inside of the spindle.
Something is keeping
pushrod.
Check inside of spindle.
18
Push bar too long.
Setting part off with
turret
function (on 3.11.1) but
turret not in position.
(1) Check Loading selection
(on 3.11.1)
(2) Check CNC program with
(on 4.8)
