7. Alarm List
Alarm
No.

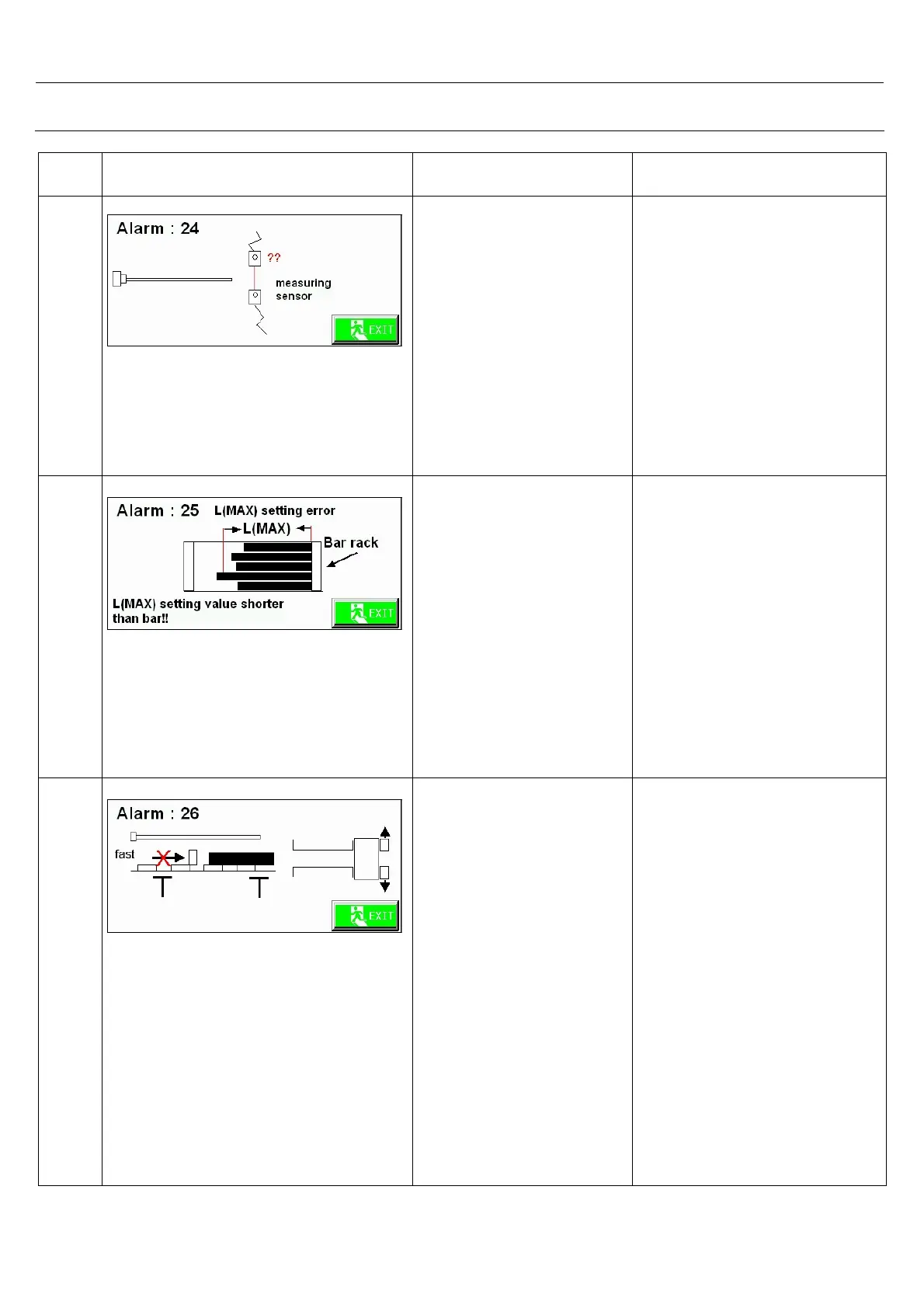

Alarm Picture Cause Action
24
Sensor detecting before bar stock
through measuring sensor position
-Grease on surface of
the sensor.
-Sensors not centring
-Cleanse the surface
-Adjust centring
See11-1 Mechanism
Drawing
(1) Item 9:
Length measurement sensor
Drawing NO : S21104-001X
25
(1) Bar reached the bar
length measuring
sensor position
during high speed
movement of the flag.
(2) L (MAX) setting value
too small.
(3) Bar not in front
position of bar rack.
(1) Check the longest bar
length on the rack and
reset the
L (MAX) value ( on
3.11.5 )
(2) Move the bars to front
position of the rack.
26
You can’t move the flag forward.
Pushing mechanism has
a problem.
Check gears and belt.
Because there is an
overload.
See 11-1 Mechanism
Drawing
:
(1) Item2 : Servo motor
driving gear
(2) Item3 : Servo motor
driven gear
Drawing NO : S04201-000X
(3) Item11 : Belt T5 20mm
Drawing NO :
1.5M: S24201-001X
1.2M: S24201-002X
