Hypertherm HT4400 User Manual

PARTS LIST
HT4400 Instruction Manual 6-5

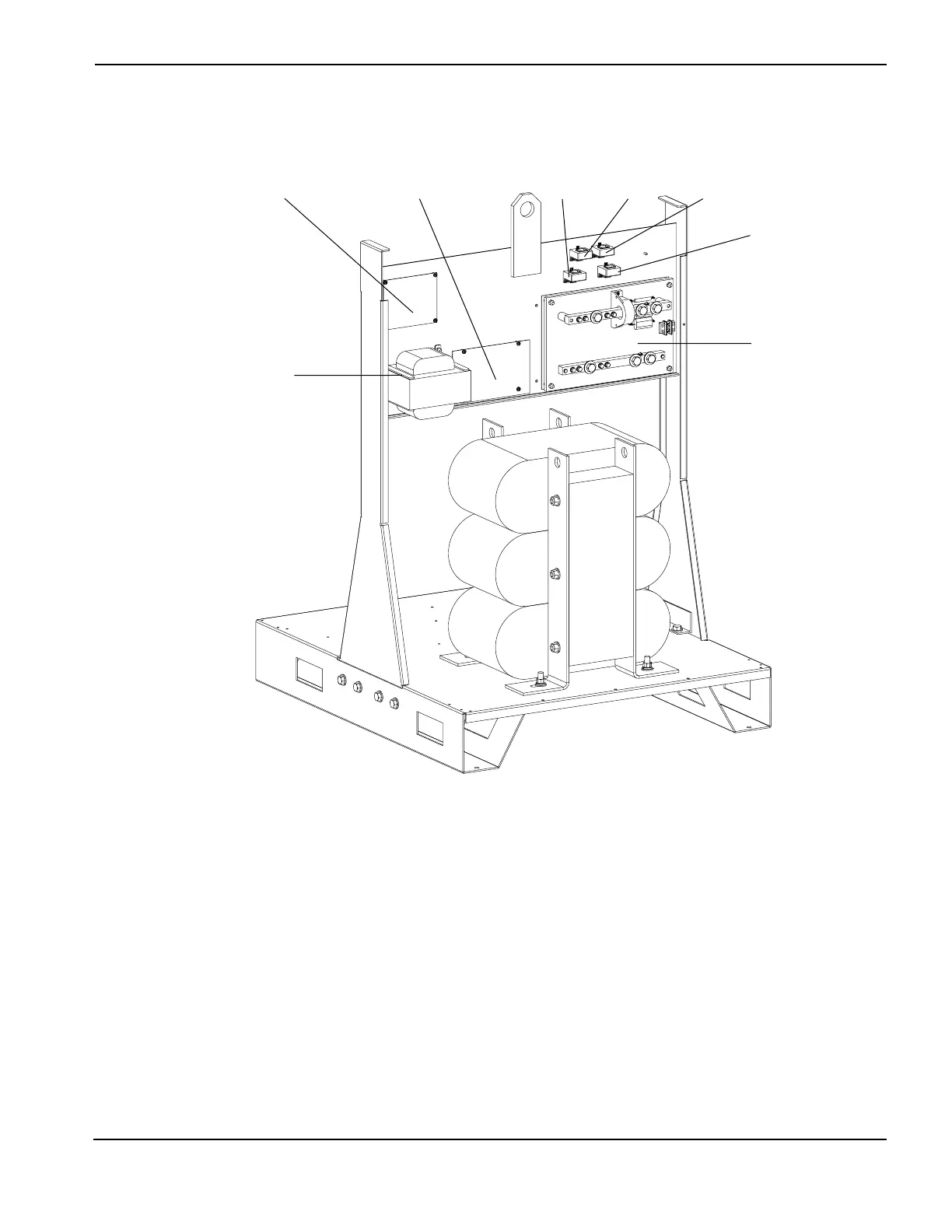

mid planemid plane
Power Supply
Rear Bail (Wall)
Part
Item Number Description Designator Qty.
1 041610 PCB Assy: Power Distribution PCB1 1
2 129603 Control Transformer: 200V/50-60HZ T1 1
2 129604 Control Transformer: 400V/50 Hz T1 1
2 129711 Control Transformer: 440V/50 Hz T1 1
2 129606 Control Transformer: 480V/60 Hz T1 1
2 129605 Control Transformer: 600V/60 Hz T1 1
3 041671* PCB Assy: THC Plasma Interface 1
4 109004 Current Sensor: Hall, 100A=4V CS1 1
5 109004 Current Sensor: Hall, 100A=4V CS2 1
6 109004 Current Sensor: Hall, 100A=4V CS3 1
7 109004 Current Sensor: Hall, 100A=4V CS4 1
8 129596 I/O Panel Assembly PCB10 1
* Installed by customer when ordering the Command THC option. See Command THC instruction manual
802780 for more detailed information.

    


