MAINTENANCE
HT44
00
Instruction Manual
5-3
2

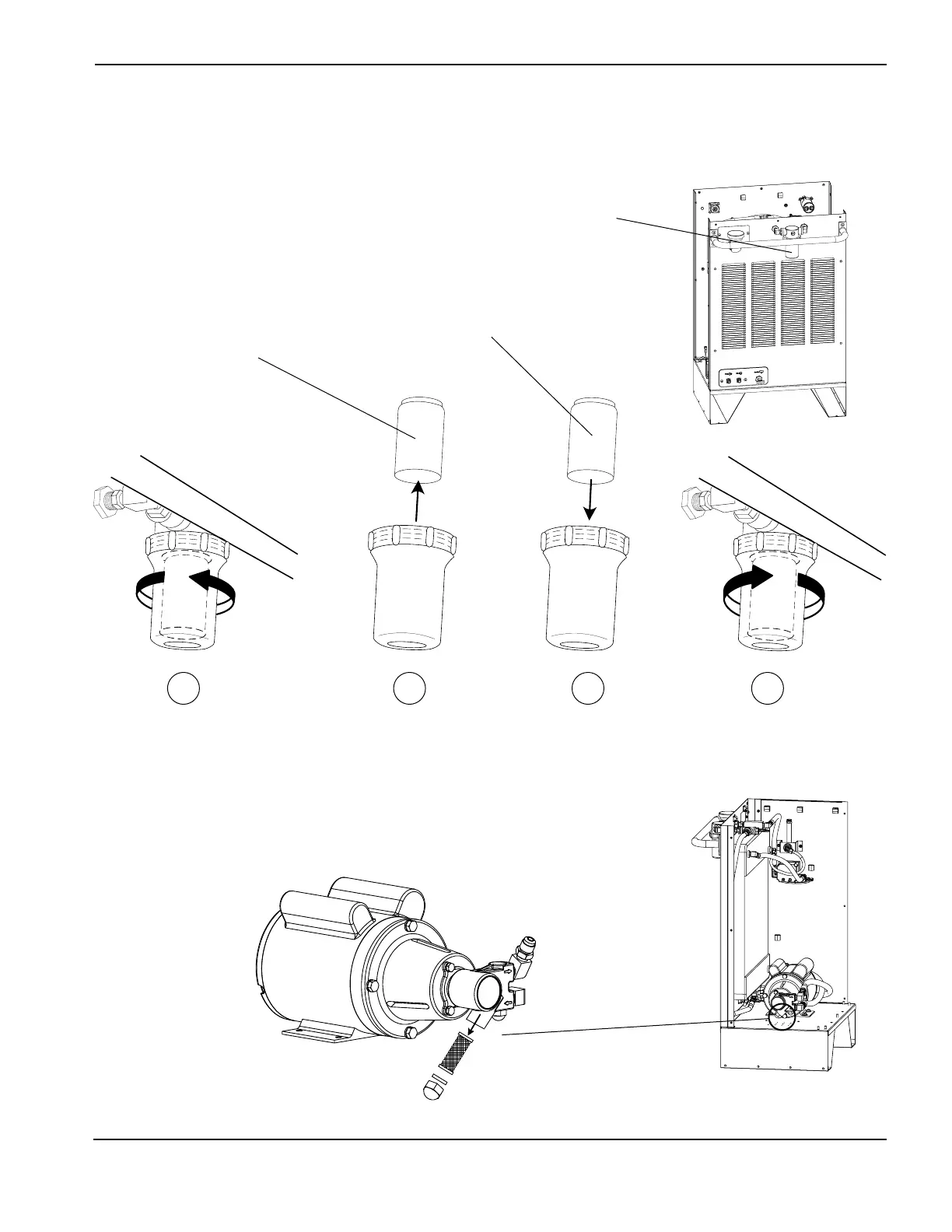

Replacing the W
ater Cooler Filter
Replace the filter element as needed.
Filter location
Remove and
discard filter
element
Install new
filter element
027664
1
2
3
4
Pump Strainer Cleaning
1. Disconnect all power to the HT4400 system.
2. Drain coolant. See water Cooler Draining, next page.
3. Remove nut.
4. Remove and clean strainer with a mild soap and water solution.
5. Re-insert strainer
.
6. Re-install nut.
93
