INSTALLATION
3-24 HT4400 Instruction Manual
4-00

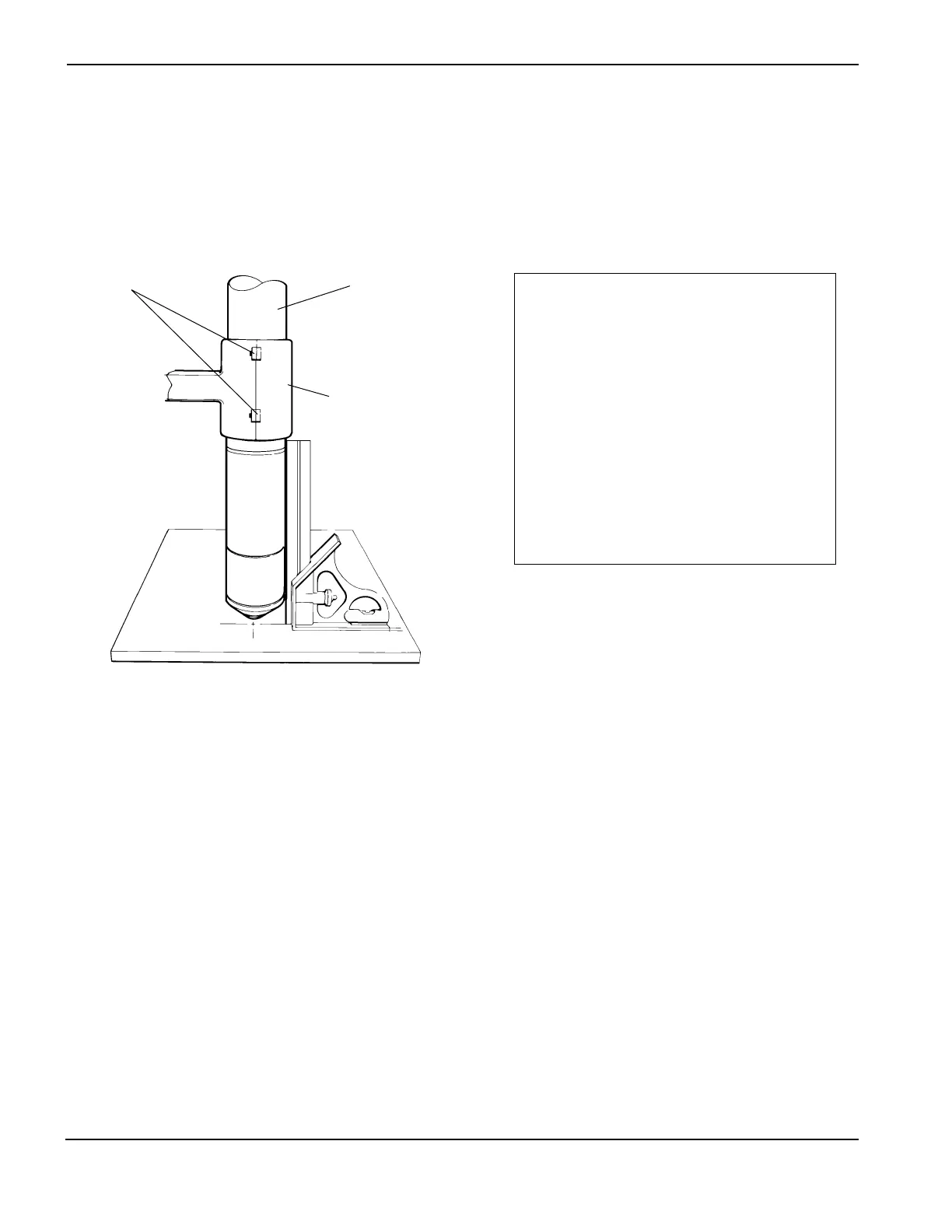

Torch Mounting and Alignment
Mounting the Torch
Torch Alignment
To align the torch at right angles to the workpiece, use a square at 0° and 90° . See figure above.
See also Changing Consumables in Section 4 to install consumables in the torch.
Installation Notes
1. Install the torch (with torch leads
attached) in the torch mounting bracket.
2. Position the torch until the torch body
extends all the way through the bracket,
so that the bracket is now around the
torch sleeve and not touching the torch
body. Position the torch approximately
0.25" (6 mm) from the workpiece.
3. Tighten the securing screws.
Torch sleeve
Torch mounting
bracket
Securing screws
0°
90°
