Hypertherm HT4400 - Recommended Spare Parts

PARTS LIST
HT4400 Instruction Manual 6-13
Recommended Spare Parts
Power Supply
Page (Ref.)
Part Showing
Number Description Designator Qty. Item
005149 Light Bulb, 120 VAC LT1, LT2 2 6-2
027080 Fan: 225 cfm, 120 VAC, 50-60 Hz M1-M4, M6 1 6-2
027079 Fan: 450-550 cfm, 120 VAC, 50-60 Hz M5, M7 1 6-2
041589 PCB Assy: Relay PCB4 1 6-2
041644 PCB Assy: µP Control PCB2 1 6-2
129160 CH100-CE/LVD Chopper Assembly CH1-CH4 1 6-3
008317 Fuse: 125A 250V F1-F4 4 6-4
041610 PCB Assy: Power Distribution PCB1 1 6-5
109004 Current Sensor: Hall, 100A=4V CS1-CS4 2 6-5
003116* Contactor: 170A, 3-Phase, 120 VAC CON1 1 6-6
003172** Contactor: 250A, 3-Phase, IEC CON1 1 6-6
003152 Circuit Breaker: 3-Phase CB1 1 6-6
* Used on 200V, 480V and 600V power supplies
** Used on 400V power supplies
Ignition Console
Page (Ref.)
Part Showing
Number Description Designator Qty. Item
128510 Kit: Filter Capacitor Replacement C1 1 6-7
027648 Ignition Module SSI1 1 6-7

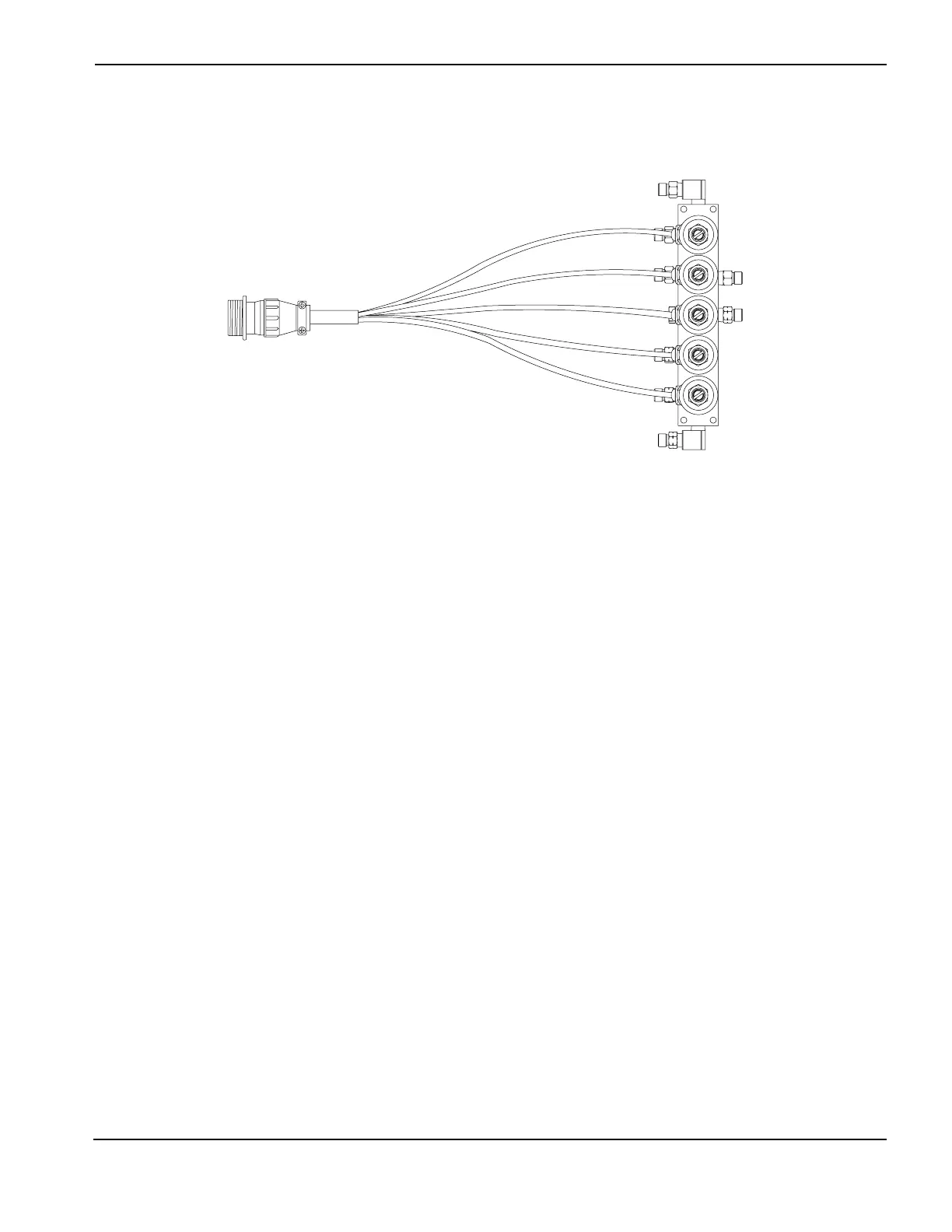

Valve Cluster Assembly – 077035
