INSTALLATION
3-20 HT4400 Instruction Manual

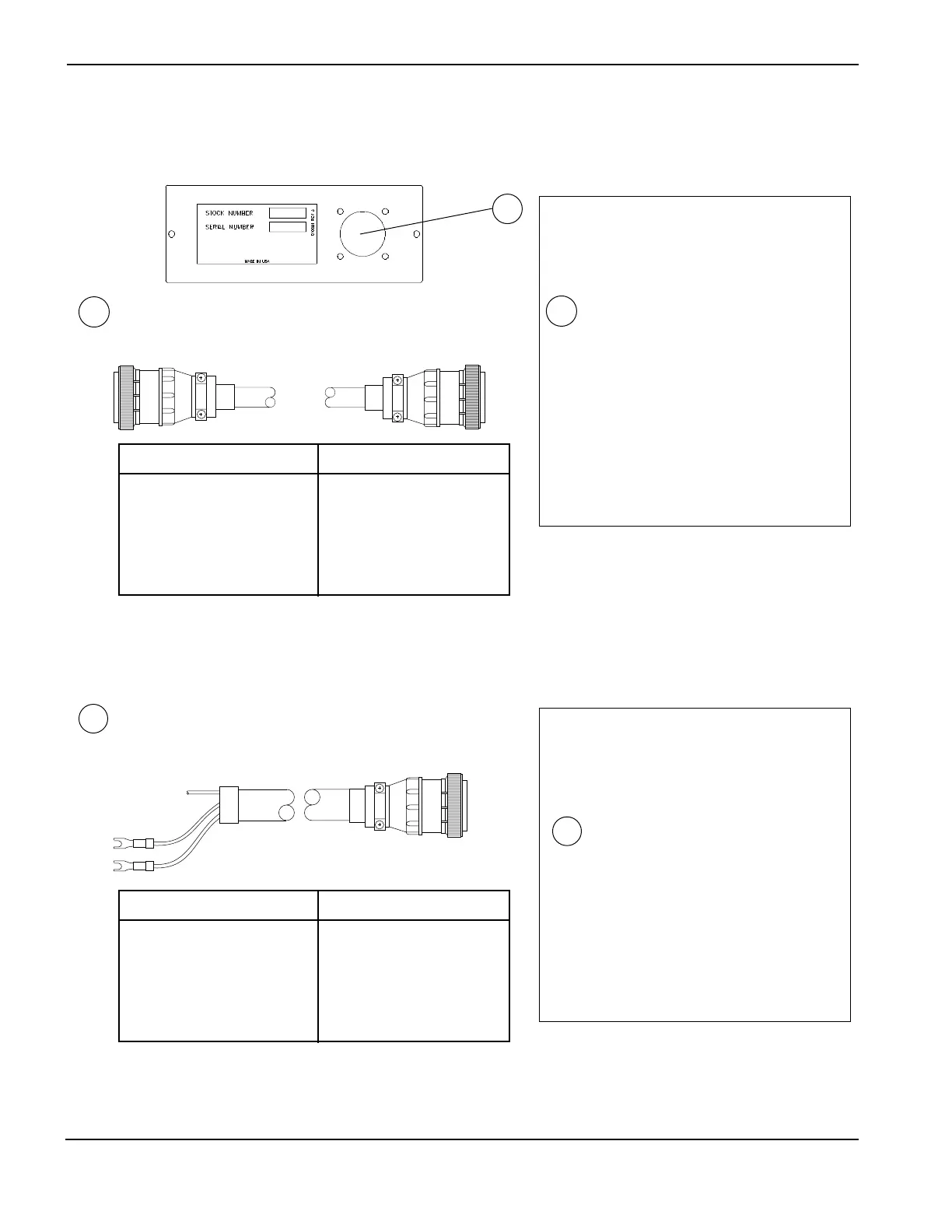

Remote Current Control Connection
Cable - Remote Current Control to
Power Supply
Installation Notes
If a machine interface will provide current
control, you will not need this cable. See
Machine Interface Connections.
RUN LIST – Remote Current Control to
Power Supply Cable
SIGNAL 15X1 COLOR 1X7
I 10 8 Black 2
I 20 7 White 3
I 40 10 Black 4
I 80 9 Green 5
I 100 15 Black 6
I 200 16 Red 7
I 400 14 Black 8
I Common 3 Shield 11
Part No. Length
123150 10 ft (3 m)
123586 15 ft (4.6 m)
123587 20 ft (6.1 m)
023871 25 ft (7.6 m)
123588 30 ft (9.2 m)
123589 40 ft (12.2 m)
023873 50 ft (15.3 m)
Part No. Length
123590 60 ft (18.3 m)
023874 75 ft (22.9 m)
023875 100 ft (30.5 m)
123088 125 ft (38.1 m)
023876 150 ft (45.8 m)
123032 175 ft (53.4 m)
023877 200 ft (61 m)
3X1
1X2
15X1
13a
13a
13a
Machine Interface Connections - 1 of 2
Cable - Machine V/C Interface to
Power Supply
Installation Notes
If the Remote Current Control console will
provide current control, you will not need
this cable.
RUN LIST – Machine V/C Interface to
Power Supply Cable
SIGNAL Terminal COLOR 1X7
I 10 White 2
I 20 Red 3
I 40 Green 4
I 80 Orange 5
I 100 Blue 6
I 200 White/Black 7
I 400 Red/Black 8
I Common Blue/Black 11
Shield Shield 10
Part No. Length
123580 10 ft (3 m)
023851 15 ft (4.6 m)
123581 20 ft (6.1 m)
023852 25 ft (7.6 m)
123582 30 ft (9.2 m)
123583 40 ft (12.2 m)
023854 50 ft (15.3 m)
Part No. Length
123584 60 ft (18.3 m)
023855 75 ft (22.9 m)
023856 100 ft (30.5 m)
023903 125 ft (38.1 m)
023857 150 ft (45.8 m)
123585 175 ft (53.4 m)
023858 200 ft (61 m)
1X7
13b
13b
