Hypertherm HT4400 - Inspect Electrode Pit Depth

OPERATION
4-26 HT4400 Instruction Manual
2
10
0
20
40
30
4
0
2
3
1
80
60
70
50
90
358-04-electrdpit

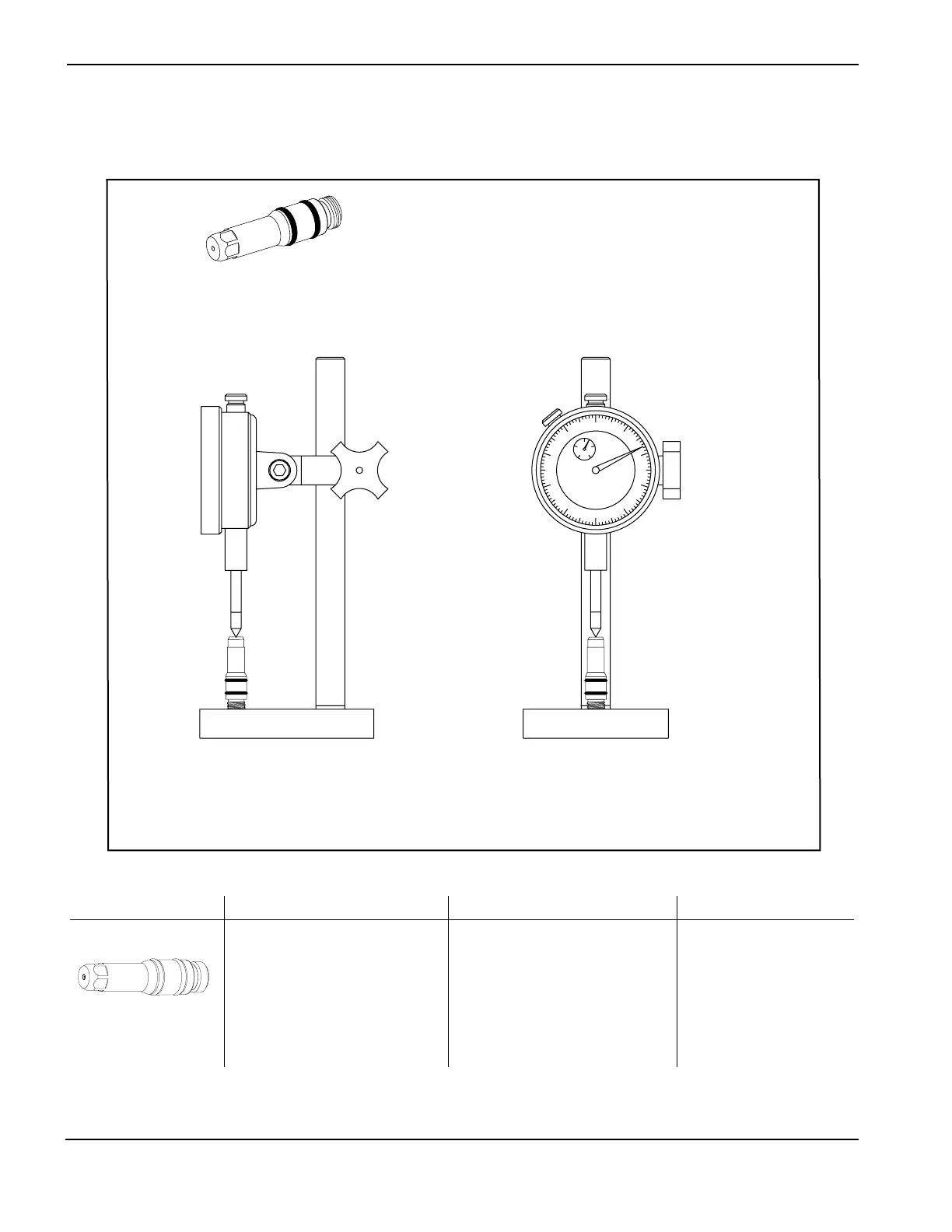

Part Check For Limit Action
Inspect Electrode Pit Depth
Electrode
Center surface Wear Pit not more than Replace Electrode*
0.040 inch (1 mm) deep
*NOTE: Always replace the nozzle and electrode as a set.
Electrode Pit Depth Gauge (004147)
