INSTALLATION
HT4400 Instruction Manual 3-15
2

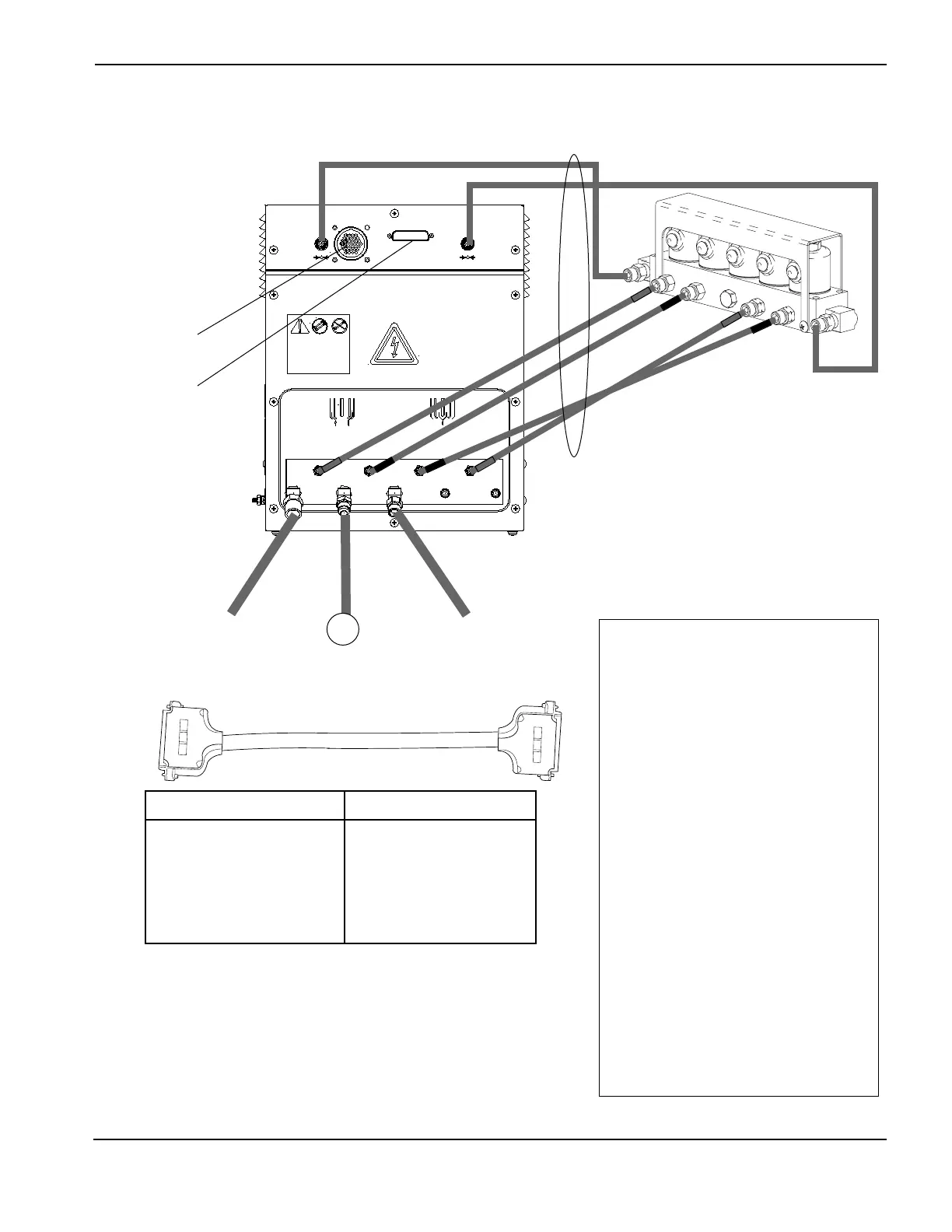

Gas Console Connections – 1 of 3
Cable 1 - Gas Console to Power Supply
Installation Notes
RUN LIST – Gas Console to
Power Supply Cable -1
Note: 3X2 and 1X3 are not labeled on the
cable. Plug one cable end into the 3X2 Gas
Console receptacle and the other cable end
into the 1X3 Power Supply receptacle.
SIGNAL 3X2 COLOR 1X3
28V 1 Black 1
Gnd 14 Red 14
28V Return 3 Black 3
Gnd 16 Blue 16
PS1 5 Black 5
Gnd 18 Brown 18
PS2 6 Black 6
Gnd 19 Orange 19
SOD+ 8 Red 8
Gnd 21 Green 21
SOD– 9 Red 9
Gnd 22 Blue 21
Str2+ 10 Red 10
Gnd 23 Yellow 23
Str2– 11 Red 11
Gnd 24 Brown 24
Clk2+ 12 Red 12
Gnd 25 Orange 25
Clk2– 7 Red 7
Gnd 20 White 20
Part No. Length
123446 10 ft (3 m)
123557 15 ft (4.6 m)
123447 20 ft (6.1 m)
123448 25 ft (7.6 m)
123449 30 ft (9.2 m)
123450 40 ft (12.2 m)
123512 50 ft (15.3 m)
Part No. Length
123559 60 ft (18.3 m)
123513 75 ft (22.9 m)
123514 100 ft (30.5 m)
123515 125 ft (38.1 m)
123516 150 ft (45.8 m)
123560 175 ft (53.4 m)
123561 200 ft (61 m)
3X2
1X3
3X1
Green Green
Green
Red
Red
Green
Red Red
N
2
In
O
2
InAir In
3X2
10a
To Next Page
