MAINTENANCE
5-4 HT4400 Instruction Manual
2
Torch Coolant Draining
If the torch needs to be changed or transported, follow this procedure for draining the torch coolant from the torch
and torch leads. Coolant should be drained from the system every 6 months. See Preventative Maintenance
Schedule at the back of this section.
1. Disconnect all power to the HT4400 system.
2. Disconnect the torch leads from the ignition console and valve cluster.
3. Ensure that the consumables are installed in the torch.
4. Position the torch lead fittings over a drain or other suitable device to collect coolant.
5. Blow clean, dry, oil-free air at 80-120 psi (5.5-8.3 bar) into the hose with the green band. Coolant will flow
out of hose with the red band.
Water Cooler Draining
If the water cooler needs to be transported, follow this procedure to drain the coolant from the water cooler. Coolant
should be drained from the system every 6 months. See Preventative Maintenance Schedule at the back of this
section.
1.. Disconnect all power to the HT4400 system.
2.. Disconnect and drain the coolant from the hoses going between the water cooler and the ignition console.
3.. Place a suitable receptacle under the water cooler's drain petcock.
4.. Turn petcock counterclockwise to drain water cooler.

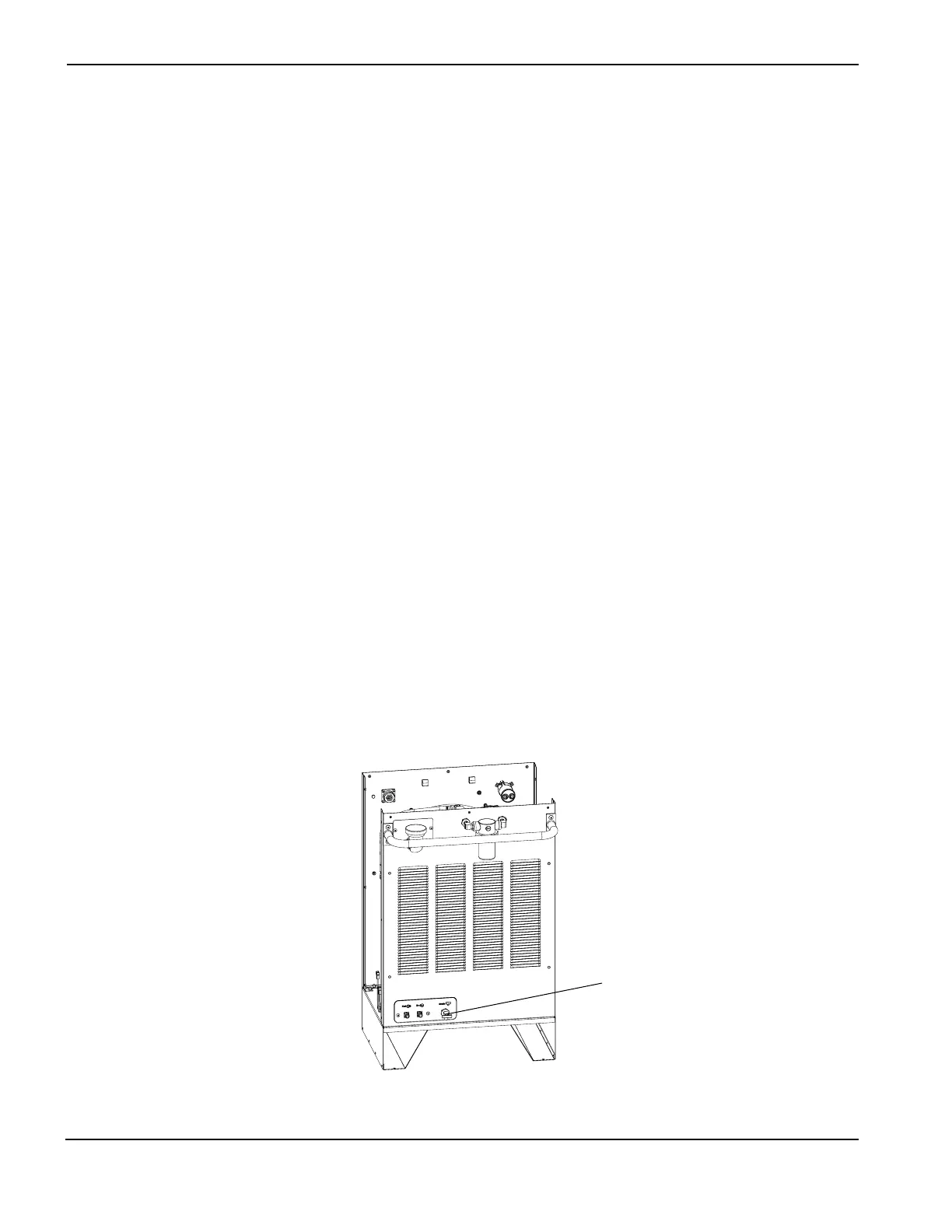

Water Cooler Drain Location
Petcock
