SPECIFICATIONS
HT4400 Instruction Manual 2-7
0
0
Dimensions and Weight
Width 12" (305 mm)
Height 6.25" (159 mm)
Depth 11.25" (286 mm)
Weight 20.5 lbs (9.3 kg)
Ignition Console – 078088

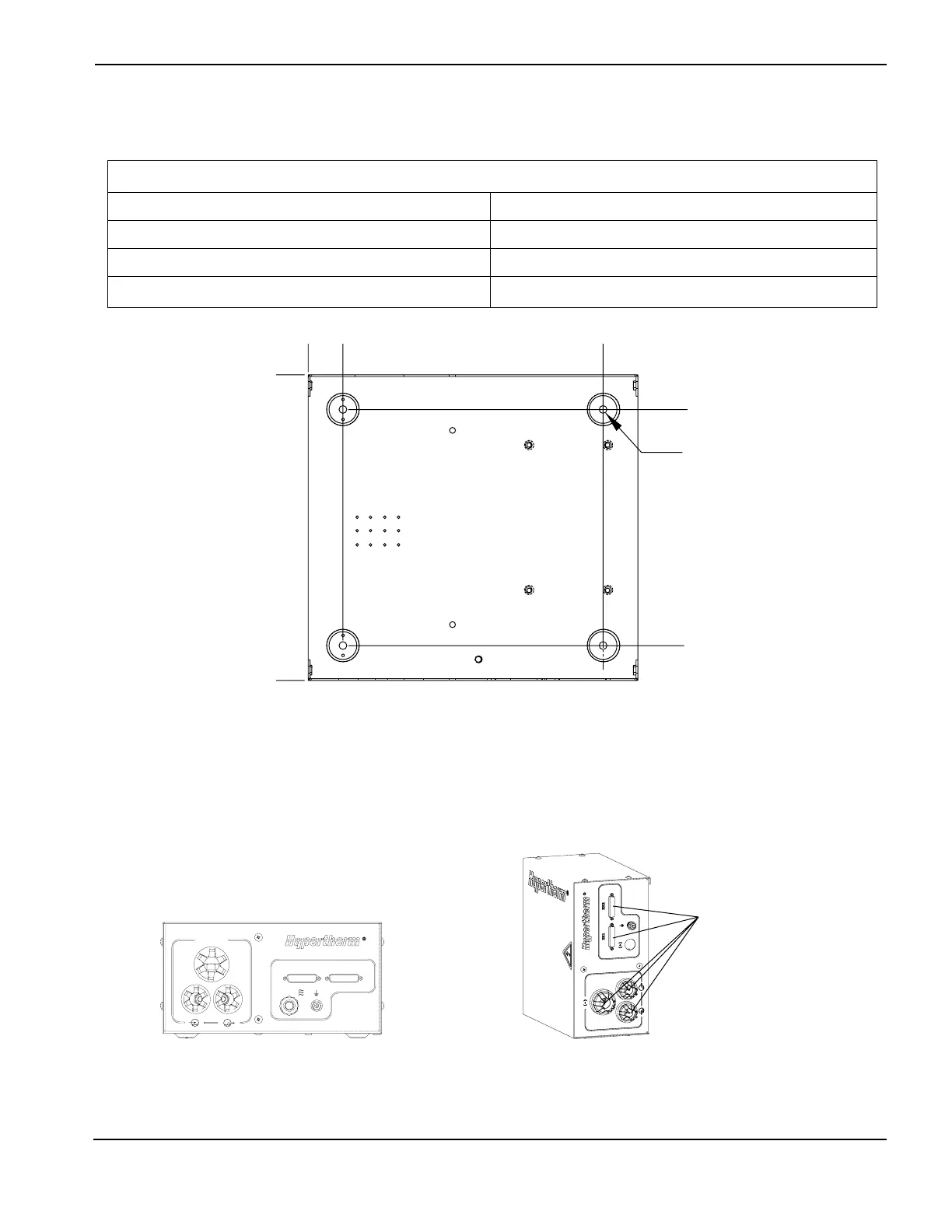

Ignition Console Mounting Dimensions (bottom view)
Vertical MountingHorizontal Mounting
1.25" (32 mm) 10.63" (270 mm)
11.0"
(279 mm)
9.75" (248 mm)
1.25" (32 mm)
0.28" (7 mm)
diameter.
(4 places)
Hypertherm recommends mounting the ignition console either horizontally or in the vertical position with the
power supply and water cooler connections facing out as shown.
Power supply and
water cooler connections
