INSTALLATION
3-16 HT4400 Instruction Manual

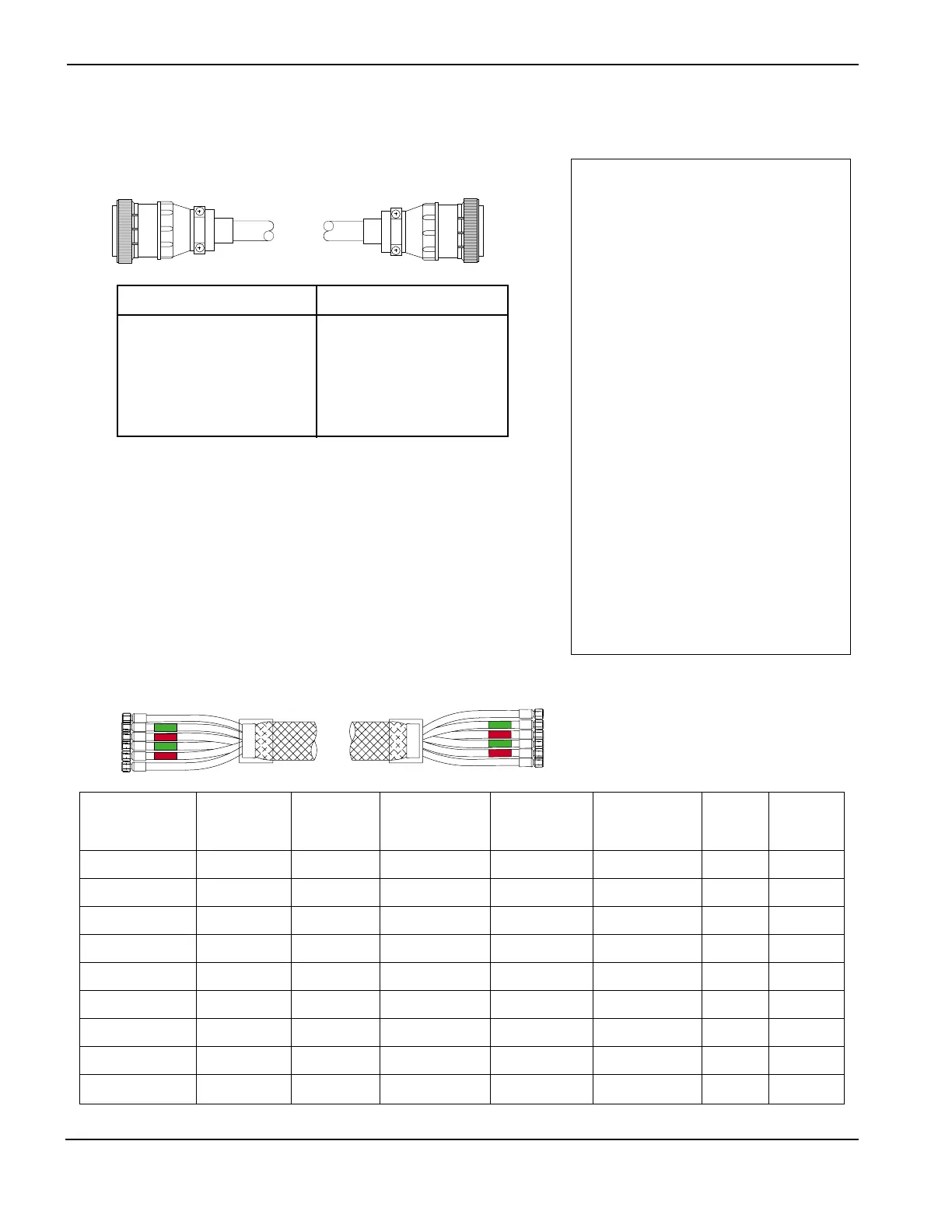

Gas Console Connections – 2 of 3
Cable 2 - Gas Console to Power Supply
Hoses - Gas Console to Valve Cluster
Installation Notes
RUN LIST – Gas Console to
Power Supply Cable -2
SIGNAL 3X1 COLOR 1X2
Select O2/N2 1 Shield 1
Select O2/N2 5 Black 5
Select O2/N2 6 White 6
SV1 2 Black 2
SV1 3 Green 3
Gnd 7 Shield 7
SV2 8 Black 8
SV2 9 Blue 9
Gnd 4 Shield 4
BCD Common 10 Shield 10
BCD Bit 8 16 Black 16
BCD Bit 4 17 Yellow 17
BCD Bit 2 11 Black 11
BCD Bit 1 12 Brown 12
Gnd 18 Shield 18
SV6 19 Black 19
SV6 20 Orange 20
Gnd 13 Shield 13
SV3 23 Red 23
SV3 24 Yellow 24
Gnd 25 Shield 25
SV5 26 Red 26
SV5 27 Brown 27
Gnd 28 Shield 28
SV7 29 Black 29
SV7 30 Red 30
Gnd 34 Shield 34
SV Purge 32 Red 32
SV Purge 33 Blue 33
Gnd 37 Shield 37
SV4 35 Red 35
SV4 36 Green 36
Gnd 31 Shield 31
Part No. Length
123562 10 ft (3 m)
123563 15 ft (4.6 m)
123564 20 ft (6.1 m)
123565 25 ft (7.6 m)
123566 30 ft (9.2 m)
123567 40 ft (12.2 m)
023496 50 ft (15.3 m)
Part No. Length
123568 60 ft (18.3 m)
023497 75 ft (22.9 m)
023498 100 ft (30.5 m)
123087 125 ft (38.1 m)
023499 150 ft (45.8 m)
123031 175 ft (53.4 m)
023500 200 ft (61 m)
3X1
1X2
Hose Package – Plasma Plasma- Shield- Shield
Gas Console to Length Preflow Cutflow Preflow Cutflow Plasma Shield
Valve Cluster: (green tape) (red tape) (green tape) (red tape) Sense Sense
128482 5 ft (1.5 m) 024620 024620 024628 024628 024591 024599
128483 10 ft (3 m) 024621 024621 024629 024629 024590 024598
128484 15 ft (4.6 m) 024622 024622 024630 024630 024589 024597
128485 20 ft (6.1 m) 024623 024623 024631 024631 024588 024596
128486 25 ft (7.6 m) 024624 024624 024632 024632 024587 024595
128487 30 ft (9.2 m) 024625 024625 024633 024633 024586 024594
128488 40 ft (12.2 m) 024626 024626 024634 024634 024585 024593
128489 50 ft (15.3 m) 024627 024627 024635 024635 024584 024592
128518 60 ft (18.3 m) 024653 024653 024652 024652 024650 024651
4-00
To Next Page
