Hypertherm HT4400 User Manual

INSTALLATION
HT4400 Instruction Manual 3-13

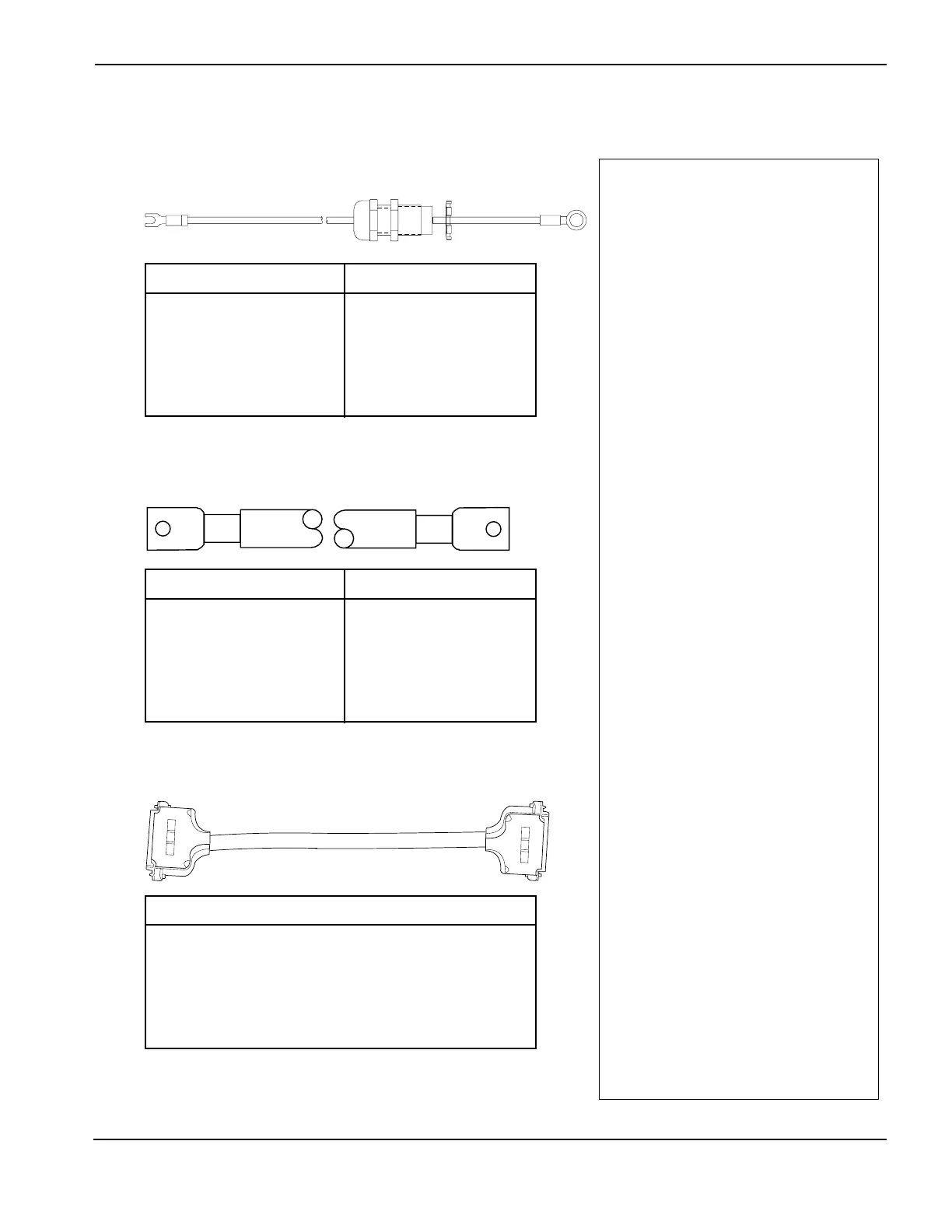

Ignition Console Connections – 2 of 3
 Nozzle (Pilot Arc) Lead (+)
 Negative Lead (-)
 Cable - Ignition Console to Power Supply
Installation Notes

Attach the ring terminal end of the nozzle
lead to the bolt in the center panel of the
ignition console as shown in the lower left
figure on page 3-12. Secure the attached
strain relief to the panel of the ignition
console by tightening the nut in place.
Pass the fork terminal end of the nozzle
lead through the small bushing in the
lower rear of the power supply and
connect to the start circuit assembly as
shown on page 3-10.

Pass the negative lead through one of
the 2" bushings in the lower rear of the
power supply and connect to the lower
bar (-) on the center bail rear as shown
on page 3-10.

RUN LIST – Ignition Console to
Power Supply Cable
Note: 2X1 and 1X1 are not labeled on the
cable. Plug one cable end into the 2X1 Ignition
Console receptacle and the other cable end
into the 1X1 Power Supply receptacle.
SIGNAL 2X1 COLOR 1X1
S.S.I. 1 Black 1
S.S.I. 14 Red 14
SV8 7 Black 7
SV8 20 Orange 20
SV9 8 Red 8
SV9 21 White 21
SV10 9 Red 9
SV10 22 Green 22
SV11 10 Red 10
SV11 23 Blue 23
SV12 11 Red 11
SV12 24 Yellow 24
Gnd 6 Black 6
Gnd 12 Red 12
Gnd 19 Brown 19
Gnd 25 Brown 25
Part No. Length
123552 10 ft (3 m)
123553 15 ft (4.6 m)
123554 20 ft (6.1 m)
123528 25 ft (7.6 m)
123555 30 ft (9.2 m)
123556 40 ft (12.2 m)
123529 50 ft (15.3 m)
Part No. Length
123530 60 ft (18.3 m)
123531 75 ft (22.9 m)
123532 100 ft (30.5 m)
123534 125 ft (38.1 m)
123535 150 ft (45.8 m)
123536 175 ft (53.4 m)
123537 200 ft (61 m)
Part No. Length
123418 10 ft (3 m)
023382 15 ft (4.6 m)
023136 20 ft (6.1 m)
023078 25 ft (7.6 m)
023101 30 ft (9.2 m)
023135 40 ft (12.2 m)
023079 50 ft (15.3 m)
Part No. Length
123316 60 ft (18.3 m)
023124 75 ft (22.9 m)
023080 100 ft (30.5 m)
123084 125 ft (38.1 m)
023081 150 ft (45.8 m)
123097 175 ft (53.4 m)
023188 200 ft (61 m)
Part No. Length
123446 10 ft (3 m)
123557 15 ft (4.6 m)
123447 20 ft (6.1 m)
123448 25 ft (7.6 m)
123449 30 ft (9.2 m)
123450 40 ft (12.2 m)
123512 50 ft (15.3 m)
Part No. Length
123559 60 ft (18.3 m)
123513 75 ft (22.9 m)
123514 100 ft (30.5 m)
123515 125 ft (38.1 m)
123516 150 ft (45.8 m)
123560 175 ft (53.4 m)
123561 200 ft (61 m)
2X1 1X1
