Hypertherm HySpeed HT2000 User Manual

OPERATION: ARGON-HYDROGEN MANIFOLD
7-4 HySpeed HT2000 Instruction Manual
19
Argon-Hydrogen Console End Power Supply TB4 End
Wire Color HT2000 Power Supply TB4 End Signal
Red 13 PS1 / Plasma
Black 14 PS1 / Plasma
Shield 12 Shield
Green 102 SV5 / Plasma OFF
Black 103 SV5 / Plasma OFF
Shield 9 Shield
Part No. Length
024355 12 in (305 mm)
024354 10 ft (3 m)
024368 20 ft (6.2 m)
024369 30 ft (9.1 m)
024370 40 ft (12.4 m)
024443 50 ft (15 m)
024467 75 ft (23 m)
Part No. Length Part No. Length
023660 15 ft (4.6 m)
023661 25 ft (7.6 m)
023662 50 ft (15 m)
023663 75 ft (23 m)
023664 100 ft (30 m)
023665 150 ft (46 m)
14X1
13
14
etc.

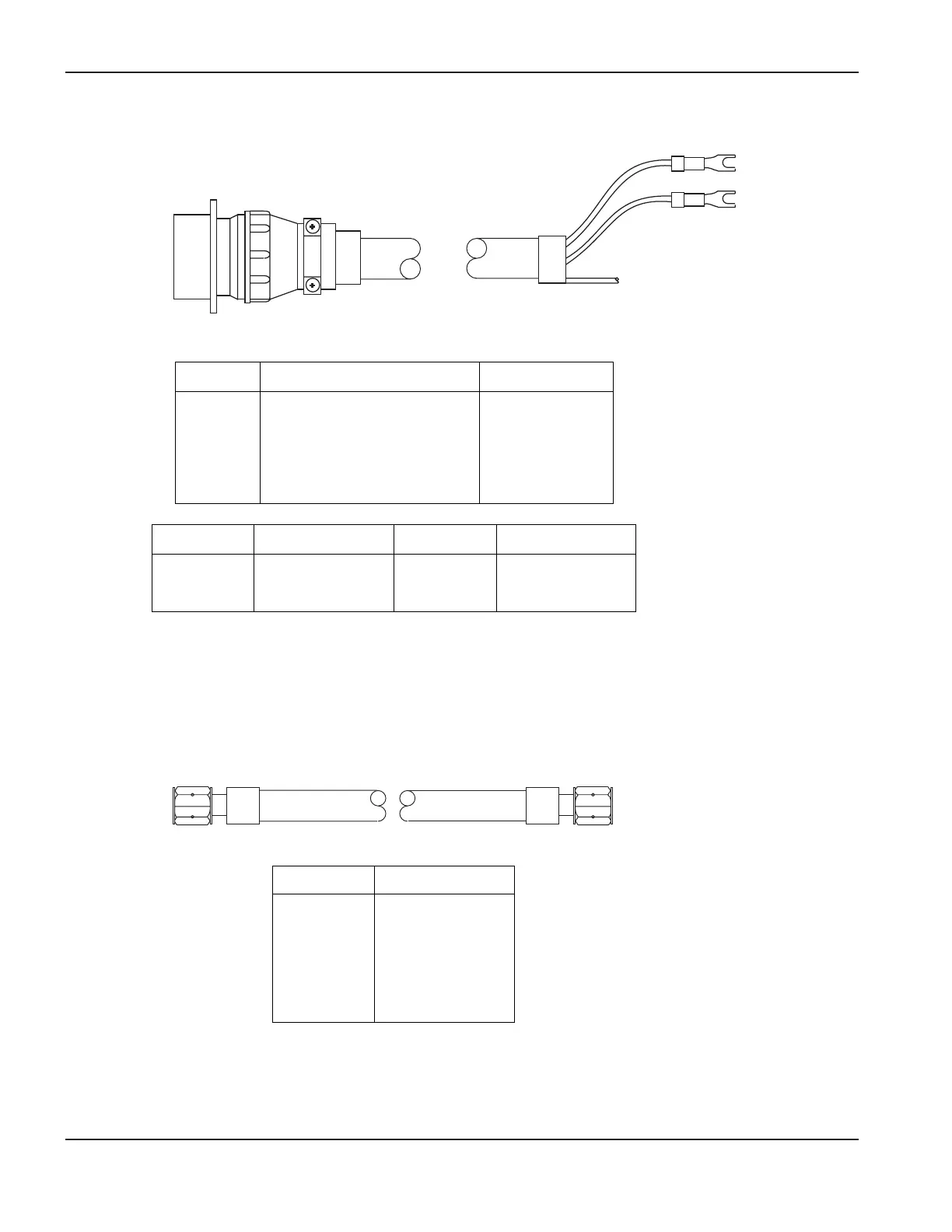

Figure 7-3 Argon-Hydrogen Manifold Cable – Argon-Hydrogen Manifold to Power Supply
Figure 7-4 Plasma Gas Torch Lead – Argon-Hydrogen Manifold to Torch
