Hypertherm HySpeed HT2000 User Manual

OPERATION: ARGON-HYDROGEN MANIFOLD
HySpeed HT2000 Instruction Manual 7-5
19
Plasma gas torch lead – Argon-Hydrogen Manifold to Torch (Fig. 7-5)
A. Turn all plasma and shield gas supply tanks OFF.
B. Remove the existing Plasma gas torch lead from Point 1.
C. Attach one end of the argon-hydrogen plasma gas torch lead (Fig. 7-4) to the Plasma gas torch lead
connection located on the front of the manifold. (Fig. 7-5)
D. Attach the other end of the plasma gas torch lead to Point 1 on the torch. (Fig. 7-5)

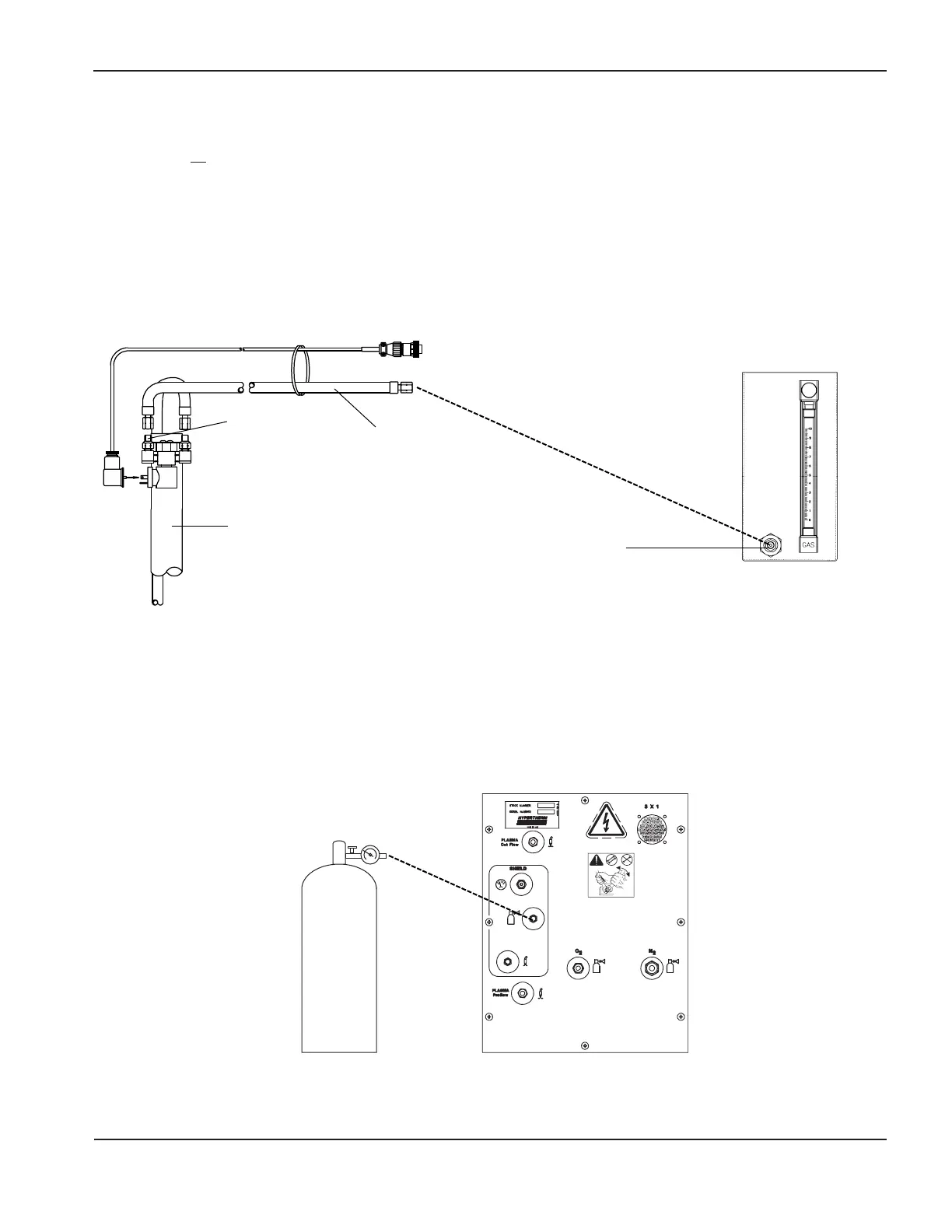

Figure 7-5 Argon-Hydrogen Manifold to Torch Connection Points
Figure 7-6 Nitrogen Supply to Gas Console
Nitrogen supply to Gas Console (Fig. 7-6)
Connect the nitrogen supply to the shield connection at the rear of the gas console. (Fig. 7-5)
2WRENCHES
N
i
t
r
o
g
e
n
Plasma gas
torch lead
Point 1
Torch
Plasma gas
torch lead
connection
