Hypertherm HySpeed HT2000 User Manual

PARTS LIST
9-40 HySpeed HT2000 Instruction Manual
19
Torch End
Gray
Red
Green
Red
Green
Gray
Pilot/Shield Gas (Blue)
RHF Console End
Shielded Torch
Leads Part No. Part 1 Part 2 Part 3 Part 4 Length
028657 023429 024221 023032 023032 10 ft (3 m)
028658 023430 024222 023034 023034 15 ft (4.6 m)
028659 023431 024223 023012 023012 20 ft (6.1 m)
028546 023326 024192 023013 023013 25 ft (7.6 m)
028660 023432 024224 023014 023014 30 ft (9.2 m)
028661 023433 024225 023015 023015 35 ft (10.7 m)
028662 023434 024226 023016 023016 40 ft (12.2 m)
028663 023435 024227 023387 023387 45 ft (13.7 m)
028547 023327 024193 023199 023199 50 ft (15.3 m)
028767 023773 024404 023772 023772 55 ft (16.8 m)
028768 023515 024259 023052 023052 60 ft (18.3 m)
Part 2
Part 1
Part 3
Part 4

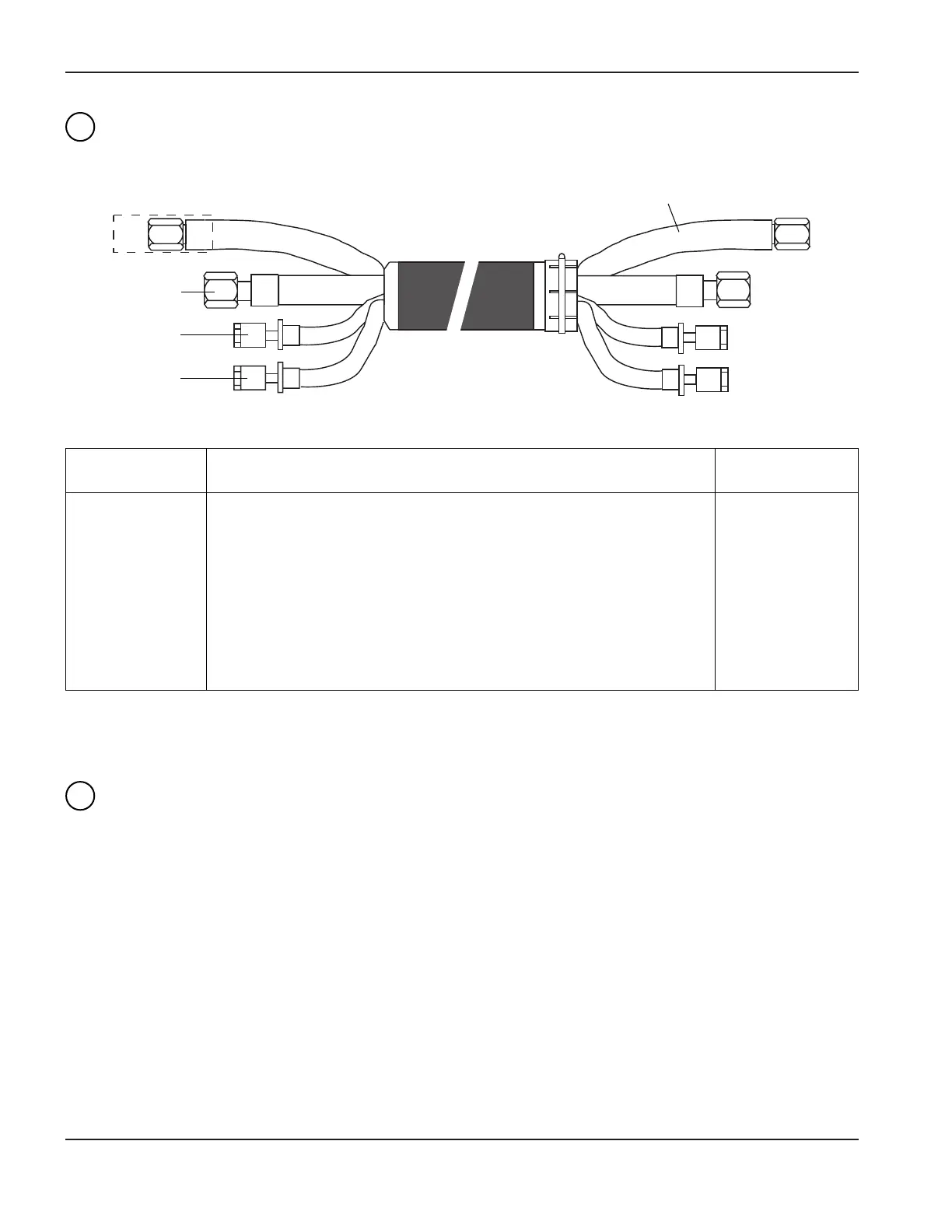

Figure 9-21 HT2000 Torch Leads
10
Figure 9-22 Cable & Hose from Motor Valve Console to Off-Valve on Torch
11
See page 9-36 for graphic. See page 9-37 for part numbers
