PARTS LIST
HySpeed HT2000 Instruction Manual 9-41
19
Part No. Length Part No. Length Part No. Length
023754 4 ft (1.2 m)
023919 8 ft (2.4 m)
023987 10 ft (3 m)
023631 25 ft (7.6 m)
023632 50 ft (15.3 m)
123043 60 ft (18.3 m)
023633 75 ft (22.9 m)
123076 85 ft (25.9 m)
023634 100 ft (30.5 m)
023966 110 ft (33.6 m)
023961 115 ft (35.1 m)
123146 120 ft (36.6 m)
023740 125 ft (38.1 m)
023635 150 ft (45.8 m)
023652 200 ft (61 m)
Part No. Length Part No. Length Part No. Length
023755 4 ft (1.2 m)
023920 8 ft (2.4 m)
023508 10 ft (3 m)
023403 15 ft (4.6 m)
023404 25 ft (7.6 m)
023968 30 ft (9.2 m)
023986 35 ft (10.7 m)
023405 50 ft (15.3 m)
123041 60 ft (18.3 m)
023406 75 ft (22.9 m)
123074 85 ft (25.9 m)
023407 100 ft (30.5 m)
023964 110 ft (33.6 m)
023959 115 ft (35.1 m)
123144 120 ft (36.6 m)
023738 125 ft (38.1 m)
023408 150 ft (45.8 m)
023644 200 ft (61 m)
1X1 2X1
12
13 14

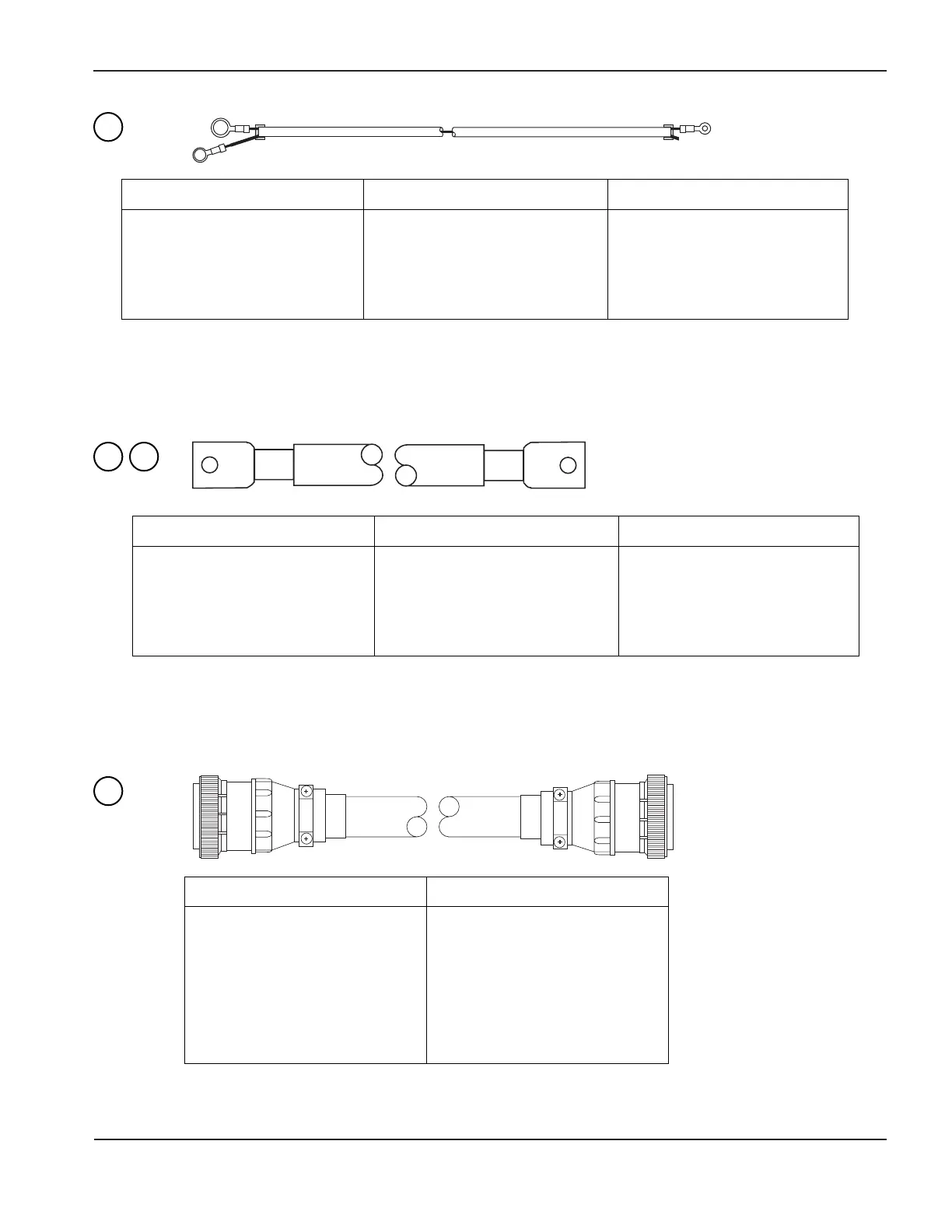

Figure 9-23 Pilot Arc Cable – PS to RHF Console
Figure 9-24 Negative Lead and Work Cable - PS to RHF Console / PS to Work Table
15
Figure 9-25 HT2000 RHF Cable – PS to RHF Console
Part No. Length Part No. Length
023756 3 ft (0.9 m)
023921 7 ft (2.1 m)
023988 10 ft (3 m)
023550 15 ft (4.6 m)
023610 25 ft (7.6 m)
023611 50 ft (15.3 m)
123042 60 ft (18.3 m)
023612 75 ft (22.9 m)
123075 85 ft (25.9 m)
023613 100 ft (30.5 m)
023965 110 ft (33.6 m)
023960 115 ft (35.1 m)
123145 120 ft (36.6 m)
023739 125 ft (38.1 m)
023614 150 ft (45.8 m)
023645 200 ft (61 m)
