Hypertherm HySpeed HT2000 User Manual

PARTS LIST
9-42 HySpeed HT2000 Instruction Manual
19
Part No. Length Part No. Length Part No. Length
023989 10 ft (3 m)
023549 15 ft (4.6 m)
023605 25 ft (7.6 m)
023757 38 ft (11.6 m)
023606 50 ft (15.3 m)
123044 60 ft (18.3 m)
023607 75 ft (22.9 m)
123077 85 ft (25.9 m)
023608 100 ft (30.5 m)
023963 115 ft (35.1 m)
123147 120 ft (36.6 m)
023743 125 ft (38.1 m)
023609 150 ft (45.8 m)
023953 200 ft (61 m)
16
17

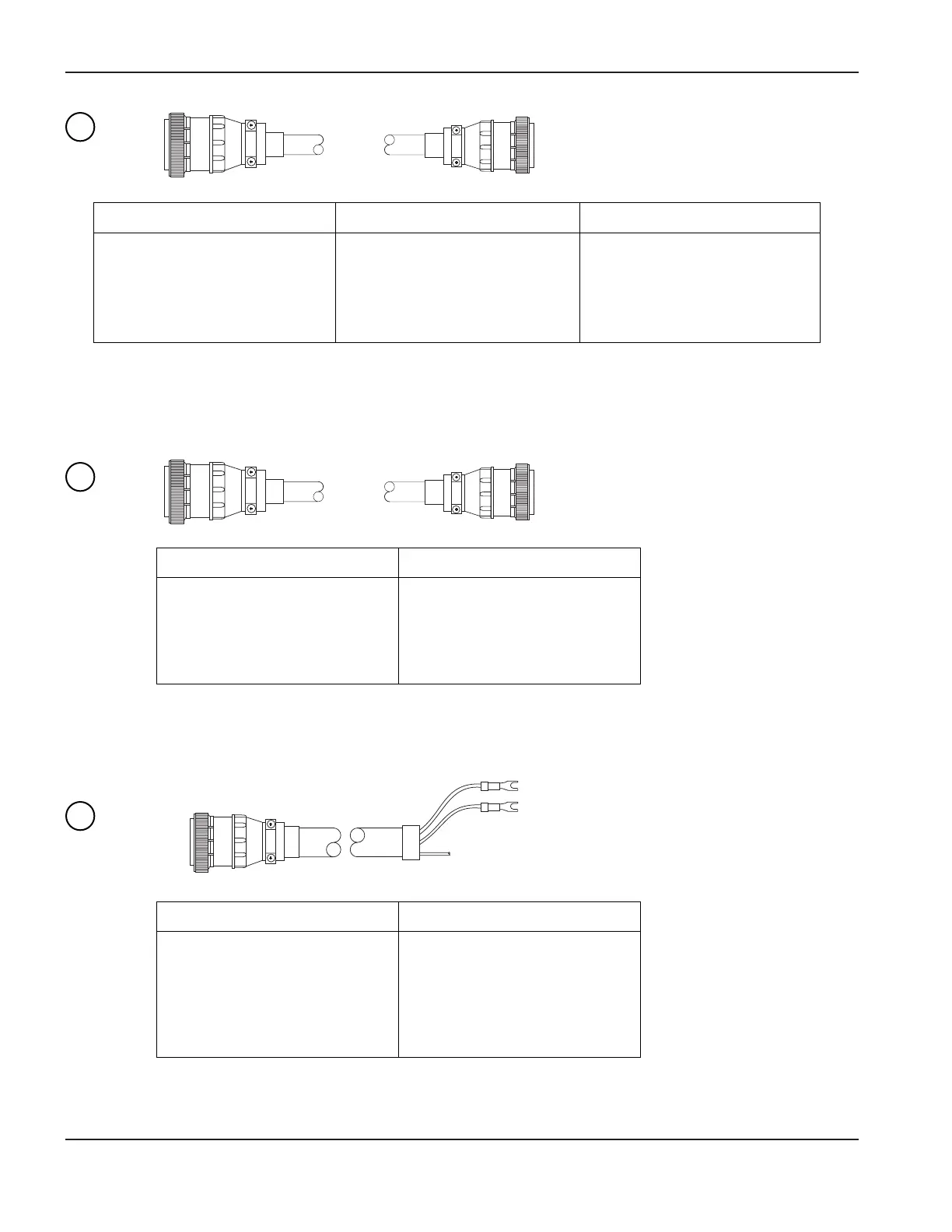

Figure 9-26 Gas Console Cable – PS to Gas Console
Figure 9-27 Motor Valve Console Cable – PS to Motor Valve Console
18
Figure 9-28 Machine Interface Cable – PS to Machine I/O
Part No. Length Part No. Length
023841 6 ft (1.8 m)
023842 15 ft (4.6 m)
023843 25 ft (7.6 m)
023844 35 ft (10.7 m)
023845 50 ft (15.3 m)
123047 60 ft (18.3 m)
023846 75 ft (22.9 m)
123080 85 ft (25.9 m)
023847 100 ft (30.5 m)
023962 115 ft (35.1 m)
123148 120 ft (36.6 m)
023848 125 ft (38.1 m)
023849 150 ft (45.8 m)
023850 200 ft (61 m)
1X6
Part No. Length Part No. Length
023551 15 ft (4.6 m)
023590 25 ft (7.6 m)
023776 35 ft (10.7 m)
023591 50 ft (15.3 m)
023592 75 ft (22.9 m)
123045 85 ft (25.9 m)
023593 100 ft (30.5 m)
123078 110 ft (33.6 m)
023967 120 ft (36.6 m)
123143 130 ft (39.7 m)
023594 150 ft (45.8 m)
023658 200 ft (61 m)
1X3 4X1
1X2 3X1
