PARTS LIST
9-44 HySpeed HT2000 Instruction Manual
19
23
24
25
22

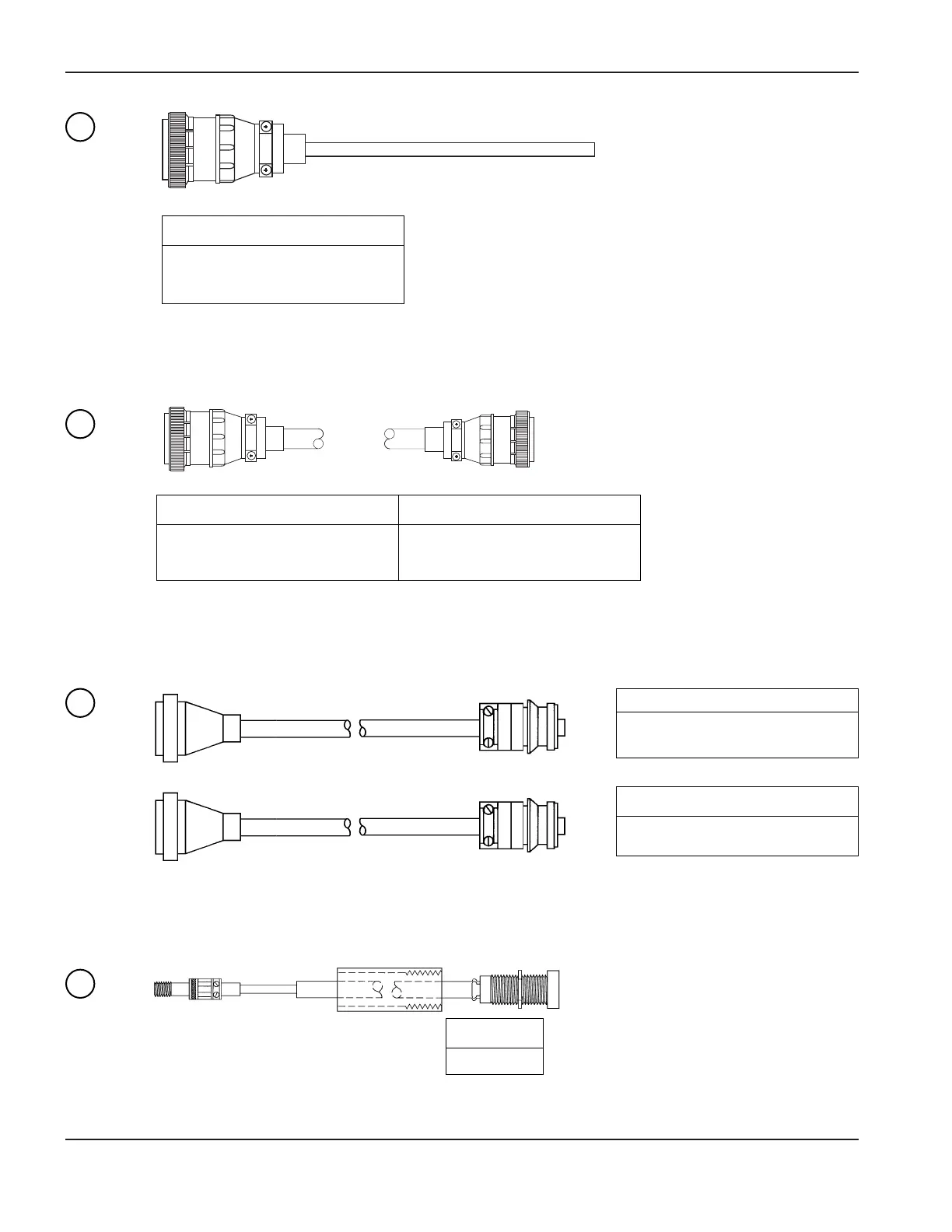

Figure 9-33 Initial Height Sensing Cable – PS to IHS
Part No. Length Part No. Length
023859 25 ft (7.6 m)
023860 50 ft (15.3 m)
023861 75 ft (22.9 m)
023862 100 ft (30.5 m)
023863 150 ft (45.8 m)
023864 200 ft (61 m)
1X9 8X1
1X10
Part No. Length
023866 50 ft (15.3 m)
023867 75 ft (22.9 m)
023868 100 ft (30.5 m)
Part No. Length
023888 2 ft (0.6 m)
023869 40 ft (12.2 m)
Part No. Length
023889 2 ft (0.6 m)
023870 40 ft (12.2 m)
Part No.
005074
See IM205 (#802050)
for Water Muffler Pump information.
Figure 9-32 Water Muffler Pump Cable – PS to WM
8X2
8X4
8X3
8X5
Figure 9-34 Cables from IHS to Sensors
Figure 9-35 Inductive Sensor Assembly
