PARTS LIST
HySpeed HT2000 Instruction Manual 9-45
19
G
Part
Item
Number Description Qty.
028720 Inductive IHS, 2" - used with standard and stainless steel torch
029044 Torch MTG SA, Induct IHS for 2" Dia. Torch
A 004082 Bracket, IND Sensor 1
B 004083 Bracket, MTG Torch, 2" 1
C 015005 Adapter, 1/4 NPT x #4 1
D 027024 Cylinder, IND Sensor, UW-IHS 1
E 005074 Inductive Sensor Assembly 2
053016 IHS Control Module - pg. 9-32 and 9-33 1
Part
Item
Number Description Qty.
028390 Inductive IHS, 1-3/4" - used with optional torch
029334 Torch MTG SA, Induct IHS for 1-3/4" Dia. Torch
A 004082 Bracket, IND Sensor 1
B 004349 Bracket, MTG Torch, 1-3/4" 1
C 015005 Adapter, 1/4 NPT x #4 1
D 027024 Cylinder, IND Sensor, UW-IHS 1
E 005074 Inductive Sensor Assembly 2
053016 IHS Control Module - pg. 9-32 and 9-33 1
Interconnecting Leads for Inductive IHS System – Included with both systems above
028811 028812 028813 028814 028815 028816
Item 25 ft (7.6 m) 50 ft (15.3 m) 75 ft (22.9 m) 100 ft (30.5 m) 150 ft (45.8 m) 200 ft (61 m)
F 024144 024144 024144 024144 024144 024144
G 023869/023870 023869/023870 023869/023870 023869/023870 023869/023870 023869/023870
H 023859 023860 023861 023862 023863 023864
F
See Figure
9-34 for detail
H
See Figure
9-33 for detail
C
D
A
B
E
E

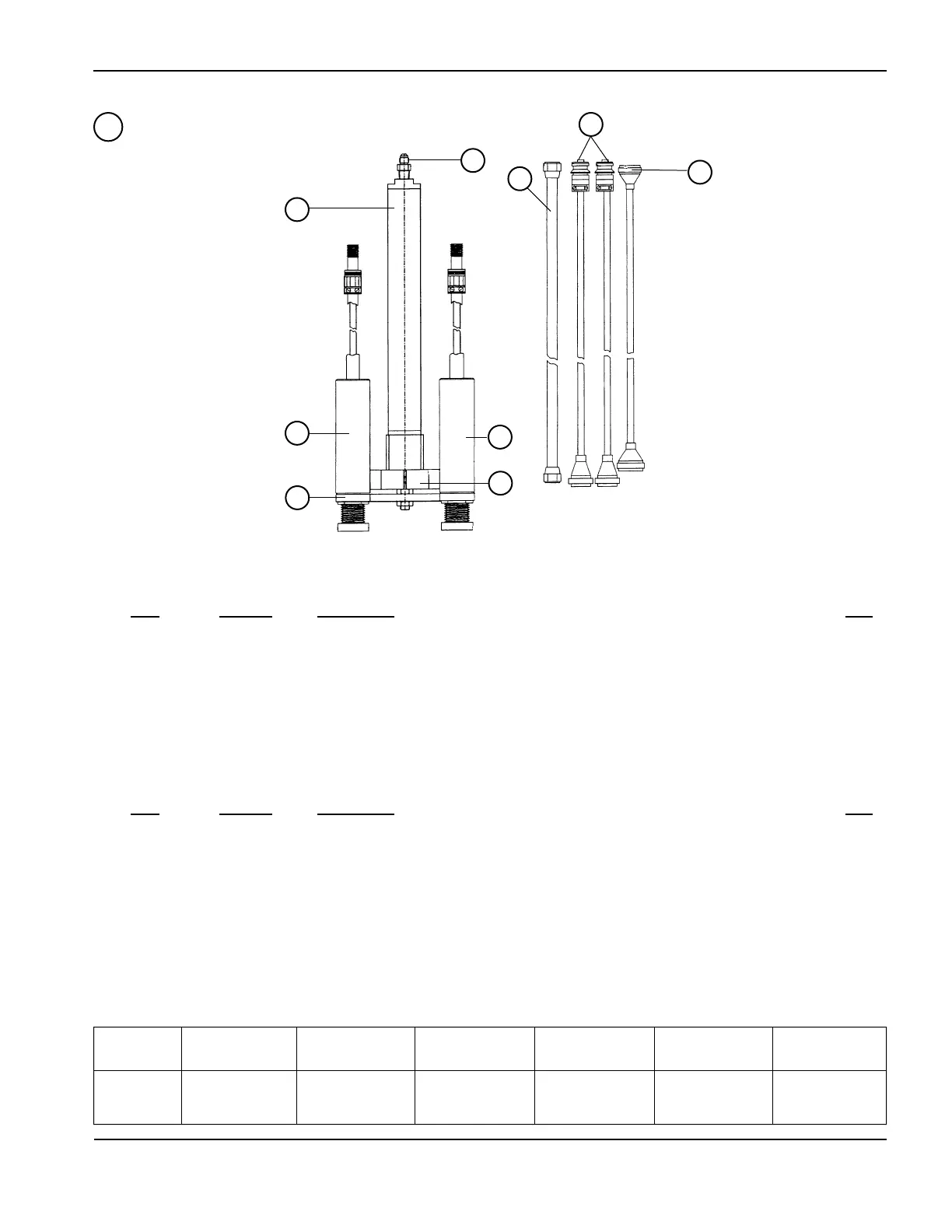

Figure 9-36 Ind. IHS Torch Mounting Assy with Leads for IHS Control Module
