Hypertherm HySpeed HT2000 User Manual

PARTS LIST
9-46 HySpeed HT2000 Instruction Manual
19
27

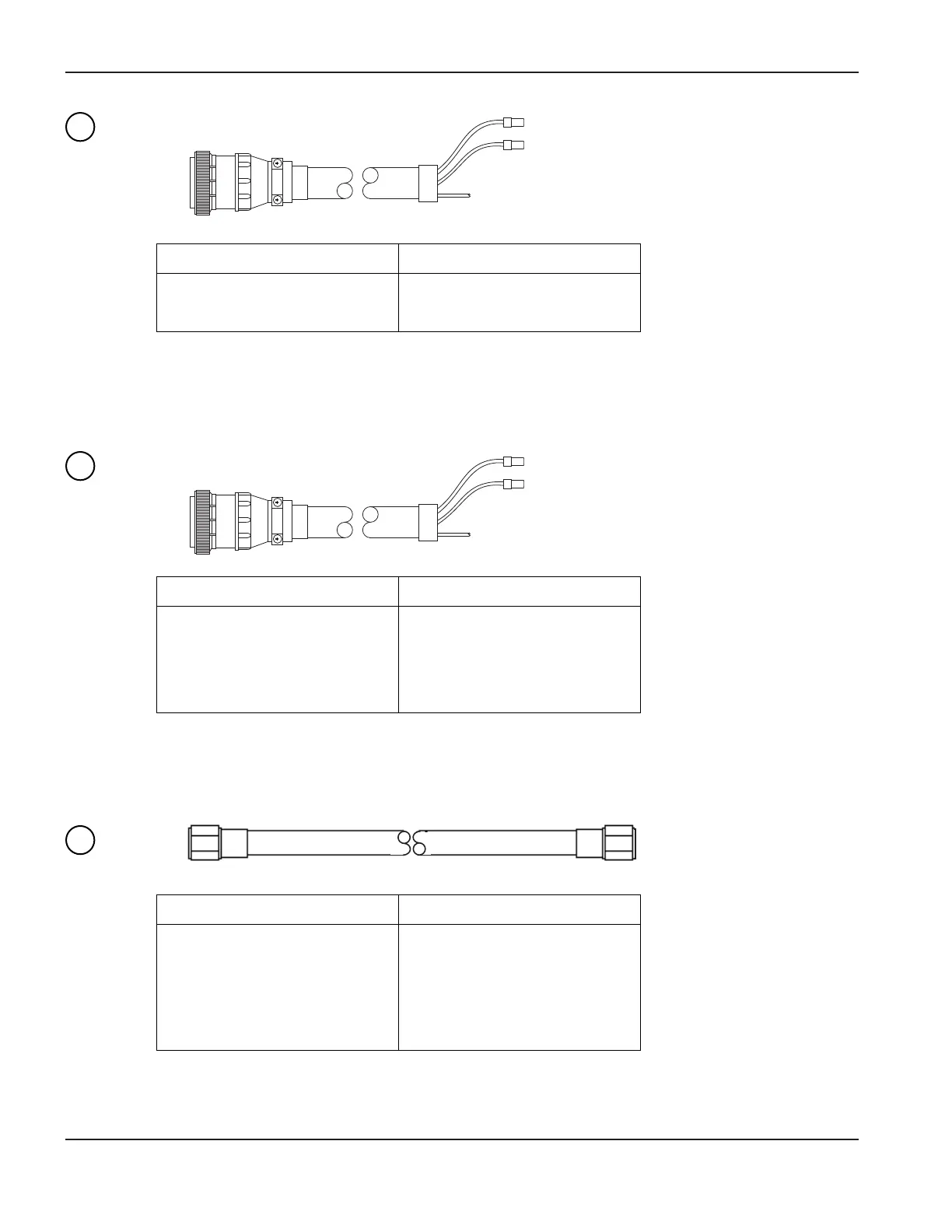

Figure 9-37 Power Supply to Argon / Hydrogen Console Cable
Part No. Length Part No. Length
023660 15 ft (4.6 m)
023661 25 ft (7.6 m)
023662 50 ft (15.3 m)
023663 75 ft (22.9 m)
023664 100 ft (30.5 m)
023665 150 ft (45.8 m)
14X1
28
Figure 9-38 Timer / Counter Cable – PS to Timer / Counter
Part No. Length Part No. Length
023687 10 ft (3 m)
023692 25 ft (7.6 m)
023758 38 ft (11.6 m)
023693 50 ft (15.3 m)
123046 60 ft (18.3 m)
023694 75 ft (22.9 m)
123079 85 ft (25.9 m)
023695 100 ft (30.5 m)
023993 115 ft (35.1 m)
123189 120 ft (36.6 m)
023696 150 ft (45.8 m)
023954 200 ft (61 m)
13
14
Etc.
11X1
5
6
Etc.
29
Figure 9-39 Oxygen Supply Hose – Oxygen Supply to Gas Console
Part No. Length Part No. Length
024204 15 ft (4.6 m)
024205 25 ft (7.6 m)
024155 50 ft (15.3 m)
024398 75 ft (22.9 m)
024487 85 ft (25.9 m)
024206 100 ft (30.5 m)
024481 110 ft (33.6 m)
024450 115 ft (35.1 m)
024516 120 ft (36.6 m)
024490 125 ft (38.1 m)
024159 150 ft (45.8 m)
024470 180 ft (54.9 m)
024333 200 ft (61 m)
