INSTALLATION
HySpeed HT2000 Instruction Manual 4-15
20
Machine V/C Interface Cable – PS to Machine Interface
Note: If you are using a remote V/C to set voltage and current, skip this step.
Before connecting the machine V/C interface cable, see the wiring diagrams in this manual and verify that the
correct plug is attached to the µP control PCB REC6 receptacle.
Connect the plug end of the machine interface cable marked 1X7 to the receptacle on the rear of the power
supply marked MACHINE V/C 1X7 (Fig. 4-10).

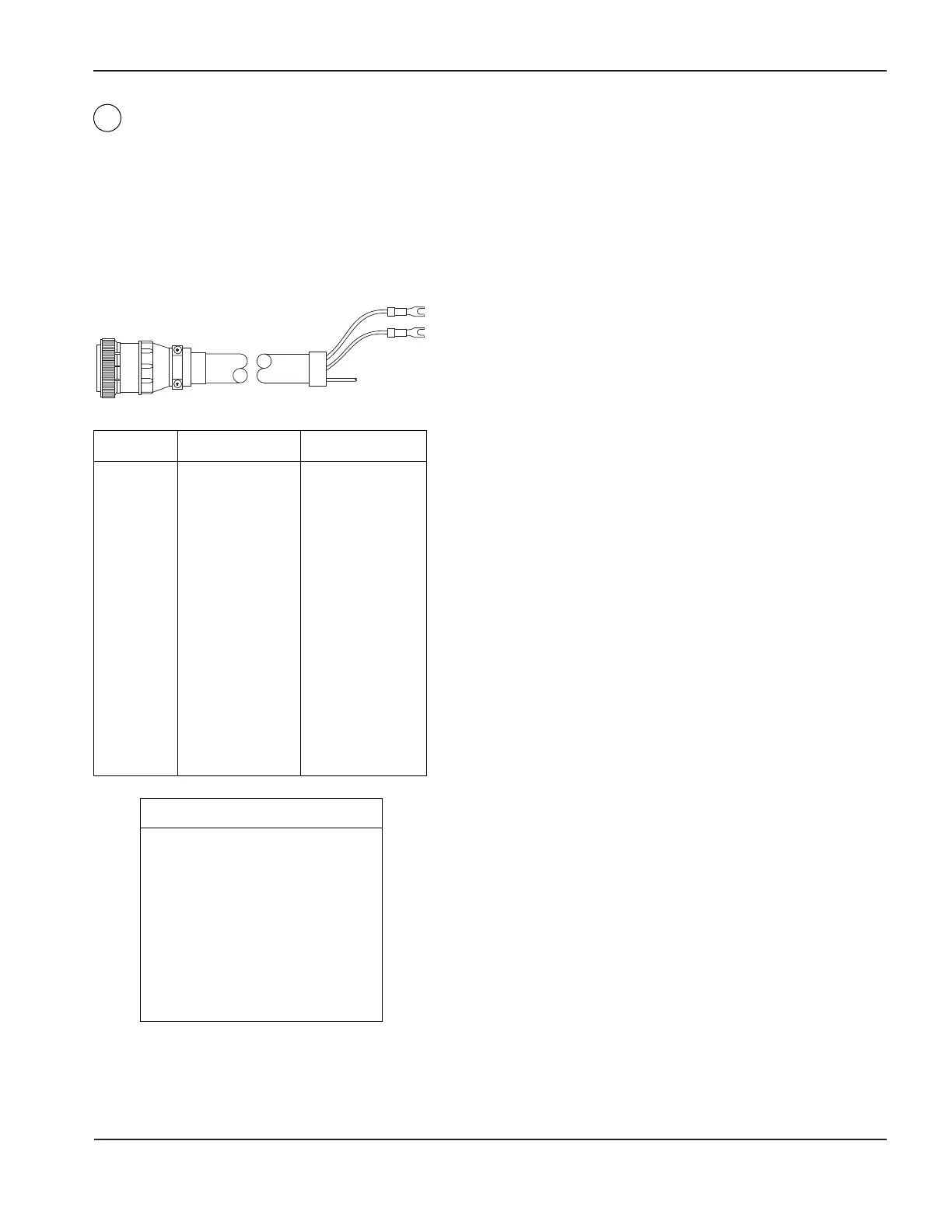

Figure 4-9 Machine V/C Interface Cable – PS to Machine Computer Interface
9
1X7
From 1X7 Color Signal
2 White Current 10
3 Red Current 20
4 Green Current 40
5 Orange Current 80
6 Blue Current 100
7 White/Black Current 200
10 Shld Shield
11 Blue/Black Current ICom
12 Black/White Spare
13 Red/White Spare
16 Black/Red Voltage V5
17 White/Red Voltage V10
18 Orange/Red Voltage V20
19 Blue/Red Voltage V40
20 Red/Green Voltage V80
21 Orange/Green Voltage V100
22 Black/White/Red Voltage V200
23 White/Black/Red Voltage VCOM
Part No. Length
023902 6 ft (2 m)
023851 15 ft (4.6 m)
023852 25 ft (7.6 m)
023853 35 ft (10.6 m)
023854 50 ft (15 m)
023855 75 ft (23 m)
023856 100 ft (30.5 m)
123650 115 ft (35 m)
023903 125 ft (38 m)
023857 150 ft (46 m)
023858 200 ft (61 m)
To Next Page
