INSTALLATION
4-16 HySpeed HT2000 Instruction Manual
19

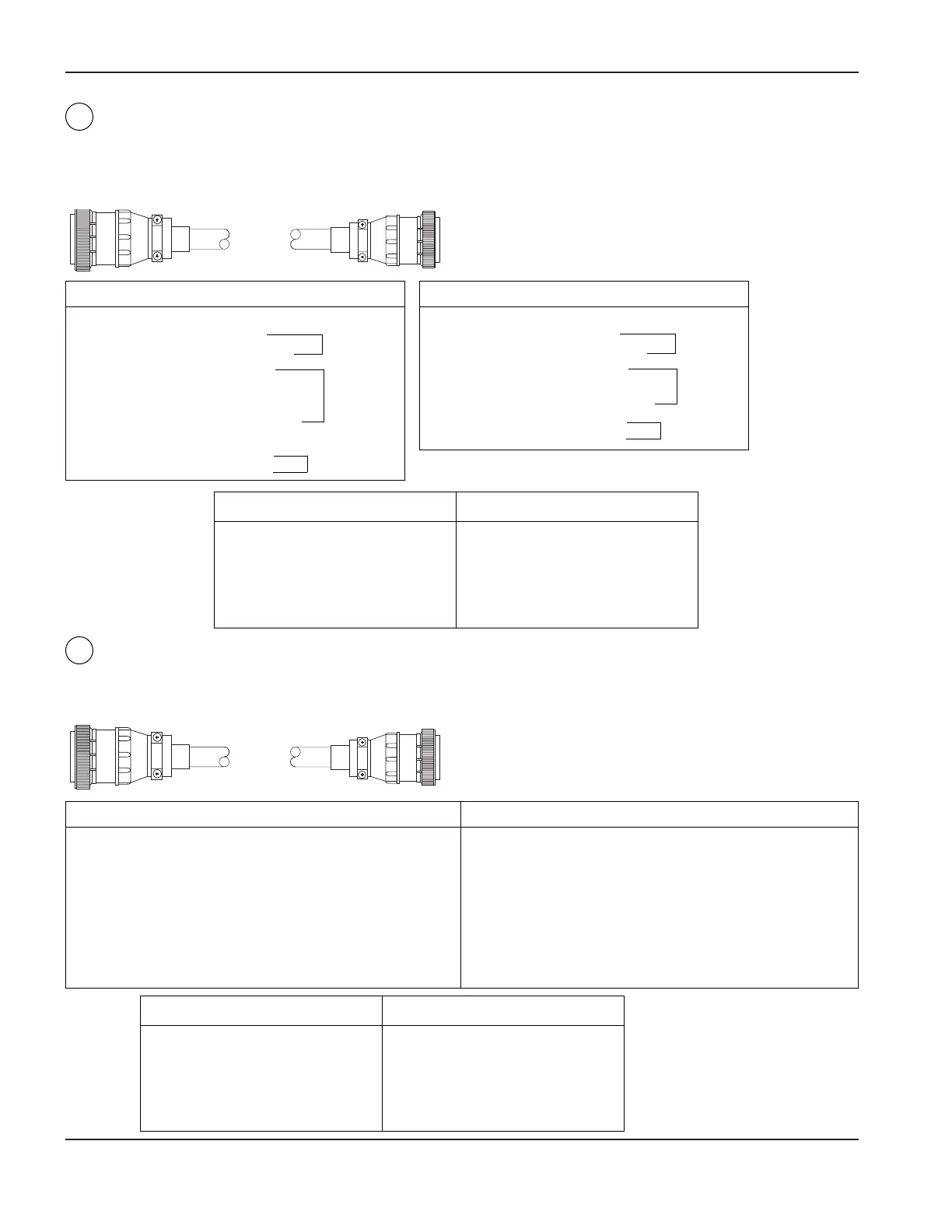

Programmable Remote V/C Cable – PS to PR V/C
Note: If you are using the digital remote to set voltage and current, skip this step.
10
1X4 5X1
PS End Remote V/C End
1X5 5X2
PS End
PR V/C End
11
Legend–PS End
Pin Color Function
4 Grn SID Data
8 Blk SID Common
9 Red SOD Data
13 Shield-Grn/Blk
14 Shield-Red/Blk
15 Blk SOD Common
31 Shield (AC PWR) Wht/Blk
35 Wht AC Power
36 Blk AC Power
Legend–Remote V/C End
Socket Color Function
1 Grn SID Data
2 Blk SID Common
3 Red SOD Data
5 Key
6 Blk SOD Common
7 Wht AC Power
8 Blk AC Power
Remote V/C cable – PS to Digital (DR)/Programmable (PR) V/C
Note: If you are using a machine computer interface to set voltage and current and don't want the
programmable V/C readout, skip this page.
PS End PR V/C End Color Signal
1 1 Black Current 20
2 2 Blue Current 40
3 3 Green Current 80
4 4 White Current 100
5 5 Orange Current 200
7 7 White/Black Common
PS End PR V/C End Color Signal
8 8 White/Blue Voltage 5
9 9 Black/Blue Voltage 10
10 10 Black/Green Voltage 20
11 11 Black/Orange Voltage 40
12 12 Black/Red Voltage 80
13 13 White/Grey Voltage 100
14 14 White/Red Voltage 200
15 15 Black/White Spare
16 16 Shld Shield
Part No. Length Part No. Length
023834 15 ft (4.5 m)
023835 25 ft (7.6 m)
023836 50 ft (15 m)
023837 75 ft (23 m)
023838 100 ft (30.5 m)
023898 125 ft (38 m)
023839 150 ft (46 m)
023840 200 ft (61 m)
023899 250 ft (76 m)
023900 275 ft (84 m)
023901 300 ft (92 m)
Part No. Length Part No. Length
023911 15 ft (4.5 m)
023878 25 ft (7.6 m)
023879 50 ft (15 m)
023880 75 ft (23 m)
023881 100 ft (30.5 m)
023882 125 ft (38 m)
023883 150 ft (46 m)
023884 200 ft (61 m)
023885 250 ft (76 m)
023886 275 ft (84 m)
023887 300 ft (92 m)
To Next Page
